For equipment designers, fixture engineers and manufacturing procurement teams, reliable temporary locating fasteners directly impact assembly efficiency and equipment safety. Whether your team calls them push button locking pins, ball lock fasteners, or rapid release pins with ball lock, they’re one of the most widely used positioning components for jigs, machinery frames and marine equipment — yet many buyers struggle to pick the correct size, material and design for their application. This practical guide from sinoboltco breaks down every key selection factor, dimension rule and real-world use case to simplify sourcing.
1. What Is a Push Button Locking Pin (Ball Lock Fastener)? A ball lock pin — also commonly searched as a push button locking pin, rapid release pin, or lockable rapid release pin — is a single-piece locating fastener with spring-loaded locking balls near the tip, paired with a pull ring or push-button handle for tool-free operation. Pull or press the release and internal springs retract the balls, allowing free insertion and removal. Release it and the balls push back outward, locking the pin securely inside the aligned mounting holes. sinoboltco’s SNBLP000006 series uses full stainless steel construction throughout — spring, balls and pull ring included — rather than only coating the shaft, so corrosion resistance holds end-to-end.
2. Ball Lock Pins vs Slot Pins: What’s the Difference? Buyers researching ball lock fasteners often compare them against slot pins, so it’s worth clarifying upfront. A ball lock pin uses spring-loaded balls near the tip for 360° radial locking — good general-purpose holding force in any hole orientation. A slot pin instead uses a flat spring tab through a milled slot, giving a lower insertion/withdrawal force but only single-direction retention. For vibration-heavy or load-bearing fixture alignment solutions, the full-circumference ball lock design in the SNBLP000006 series is typically the stronger choice; slot pins suit lighter-duty, high-frequency cycling applications where minimal pull force matters more than holding strength.

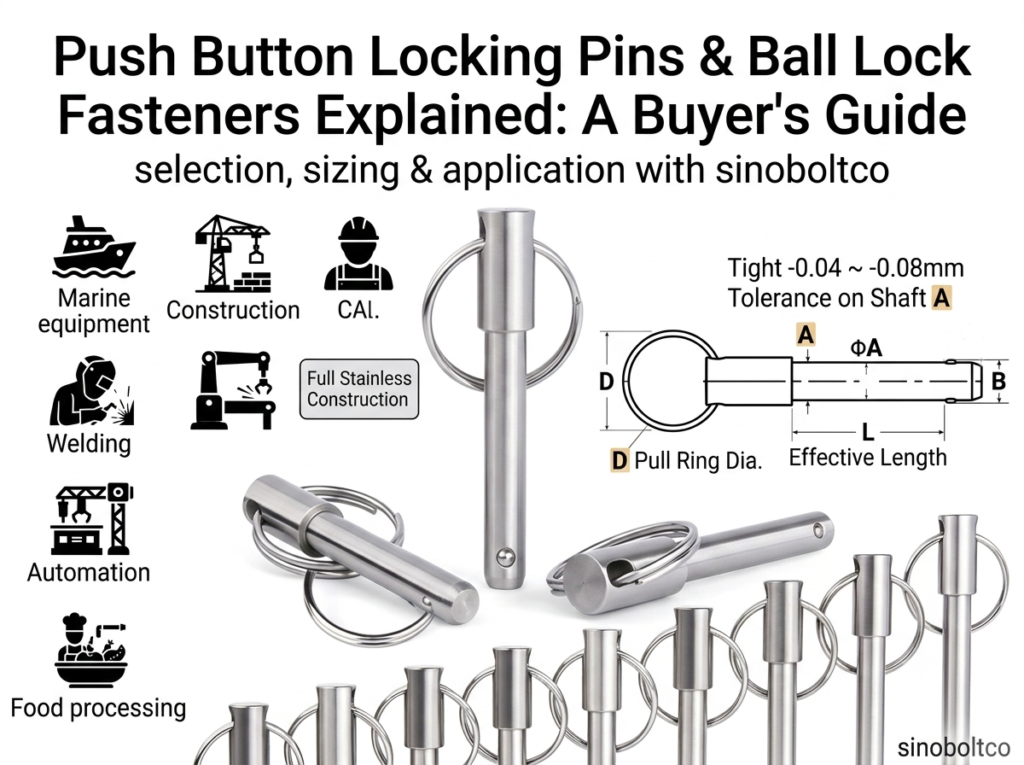

3. Critical Dimensions to Match Before Ordering Matching dimensions is the most common pain point when sourcing ball lock pins. Six core measurements should be cross-referenced against your fixture hole layout:
- Shaft Diameter (A): the main body diameter inserted into your hole; sinoboltco offers 5/6/8/10/12/16mm with a tight -0.04 ~ -0.08mm tolerance.
- Effective Lock Length (L): the working grip length across your stacked assembly layers; standard options run 10-100mm in 5mm steps.
- Ball Section (B & C): matched to each shaft diameter to guarantee locking engagement without sticking on removal.
- Pull Ring Outer Diameter (D): a fixed 30mm loop across all shaft sizes, sized for gloved hands.
- Shoulder Diameter and Handle Length (E & F): these scale with shaft size (E = 11mm for A5/6/8, 16mm for A10/12, 19mm for A16; F = 22mm, 27mm or 32mm respectively) and create a built-in stop surface for consistent depth positioning.
Always check your fixture’s stacked plate thickness against effective length L first — an undersized L will fail to lock both layers, while an oversized L creates unnecessary play.
4. Why Full Stainless Steel Construction Matters Budget ball lock pins often use carbon steel springs or balls that oxidize quickly in humid, marine or food processing facilities, leading to seized locking balls and premature failure. sinoboltco’s SNBLP000006 series solves this with fully stainless internal hardware: long service life outdoors or near water, no metal contamination risk for food-grade or medical machinery, and consistent spring tension over thousands of cycles.
5. Top Industrial Applications & Fixture Alignment Solutions
- Manufacturing & welding fixtures — tight shaft tolerance and vibration resistance for repeated jig disassembly between production batches.
- Marine & off-road equipment — full stainless build withstands saltwater exposure without locking failure.
- Construction scaffolding & safety frames — the large 30mm pull ring speeds up assembly for workers wearing thick gloves.
- Automation & test benches — precision dimension control keeps positioning consistent across repeated pin removal.
- Food & medical processing machinery — stainless material avoids rust-flake contamination for direct-contact equipment.
6. Step-by-Step Selection Workflow
- Measure your fixture mounting hole to select shaft size A (5-16mm).
- Calculate total stacked plate thickness to define effective lock length L.
- Confirm the operating environment — marine/outdoor projects call for full stainless construction.
- Check clearance around the 30mm pull ring to avoid collision with surrounding equipment.
- Cross-reference the dimension chart to confirm B/C/D/E/F fit your design.
- Place your order using the format SNBLP000006-A-L — for example, SNBLP000006-10-55 for a 10mm shaft with 55mm effective length — or submit a custom drawing for non-standard lengths.
7. Common Mistakes to Avoid
- Ignoring spring material — carbon steel internal springs seize in humid environments even if the shaft is stainless.
- Under-sizing effective length L, so locking balls fail to fully engage both assembly layers.
- Overlooking shaft tolerance, which creates positioning wobble in precision jigs.
- Skipping the pull ring clearance check, which can block ring pulling in narrow frames.
- Mixing metric and imperial sizing without cross-verification.
Final Takeaway Whether you know them as push button locking pins, rapid release pins, or ball lock fasteners, these components streamline temporary mechanical locking across thousands of industrial applications — but performance depends on correct sizing and material selection. The sinoboltco SNBLP000006 series unifies standardized precision dimensions with full stainless construction into a reliable lockable rapid release pin and fixture alignment solution, cutting sourcing time and extending equipment service life. For custom lengths, technical data sheets or bulk quotations, reach out to our engineering sales team directly.
