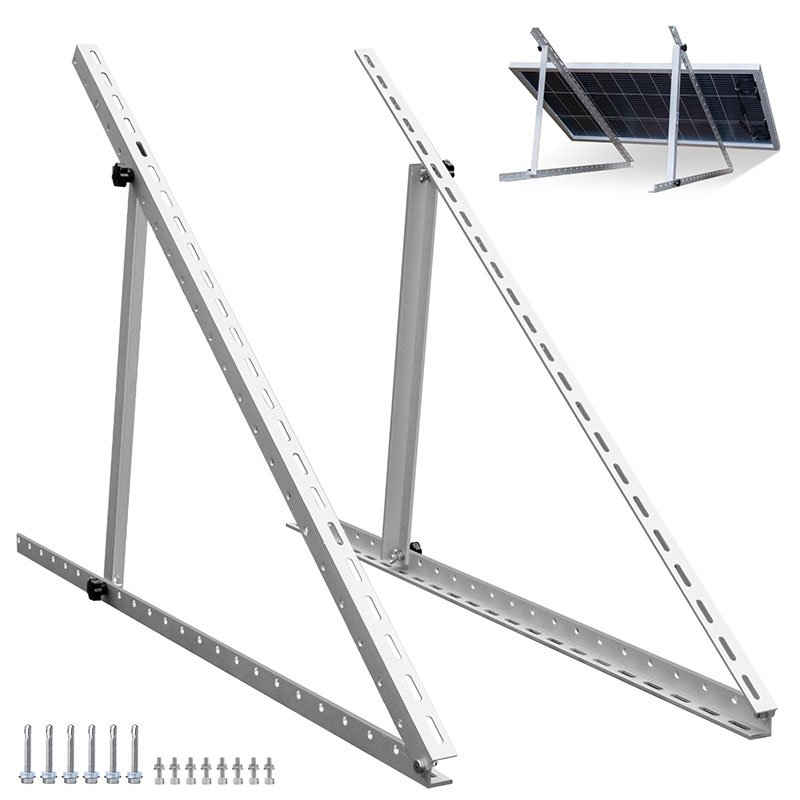

Adjustable Solar Panel Tilt Mount Bracket – 0-90° Heavy Duty Aluminum Triangle Roof Mounting System for 50W-400W Panels
$21.00
Maximize solar efficiency with SinoBolt’s adjustable 0-90° aluminum tilt mounts. Durable, corrosion-resistant, and easy to install for 50W-400W panels. Shop now!
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Pins Key attributes | |||
|---|---|---|---|
| Place of Origin | Jiangsu, China | Brand Name | sinoboltco |
| Model Number | snboltsbsm00010 | Wind Load | 60 |
| Snow Load | 1.5 | Surface Treatment | Anodized |
| Material | Aluminum | Type | Triangle Solar Mounting |
| Feature | Easy | MOQ | 1 Pcs |
| Packing | Independent thickened packaging | Size | 115*10*5 |
| weight | 2.5 | LOGO | OEM Logo |
| Packaging and Shipping Information | |
|---|---|
| Sales Unit | Single item |
| Delivery Time | ||
|---|---|---|
| Quantity | 1 – 100 | > 100 |
| Eastern Time (days) | 10 | To be determined |
Optimize Your Solar Harvest with SinoBoltco Precision-Engineered Tilt Mounts
Maximize the power generation of your off-grid system with the SinoBoltco 0-90° Adjustable Aluminum Triangle Solar Bracket. Designed for versatility and extreme durability, this mounting system is the professional choice for RVs, marine applications, and residential rooftops.
Why Choose the SinoBoltco Adjustable Mounting System?

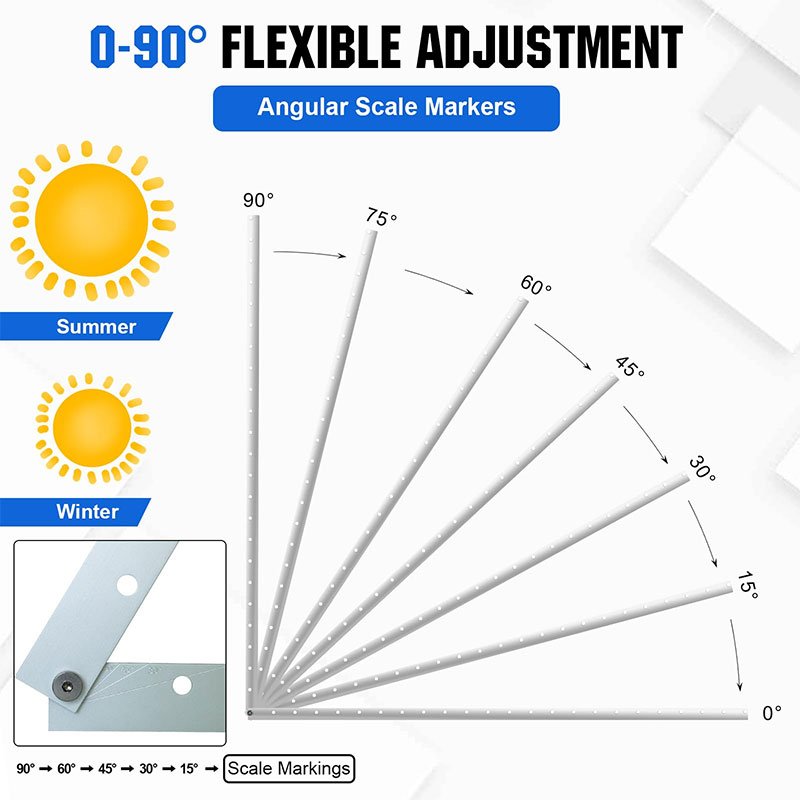

Superior Seasonal Efficiency (0-90° Full Range)
Standard flat mounts lose up to 25% of potential solar energy because they cannot track the sun’s seasonal altitude. Our unique integrated angle scale allows you to recalibrate your panel’s tilt in seconds. Whether it’s the low winter sun or the high summer peak, you can ensure your panels are always at the optimal angle for maximum absorption.
Industrial-Grade Material Integrity

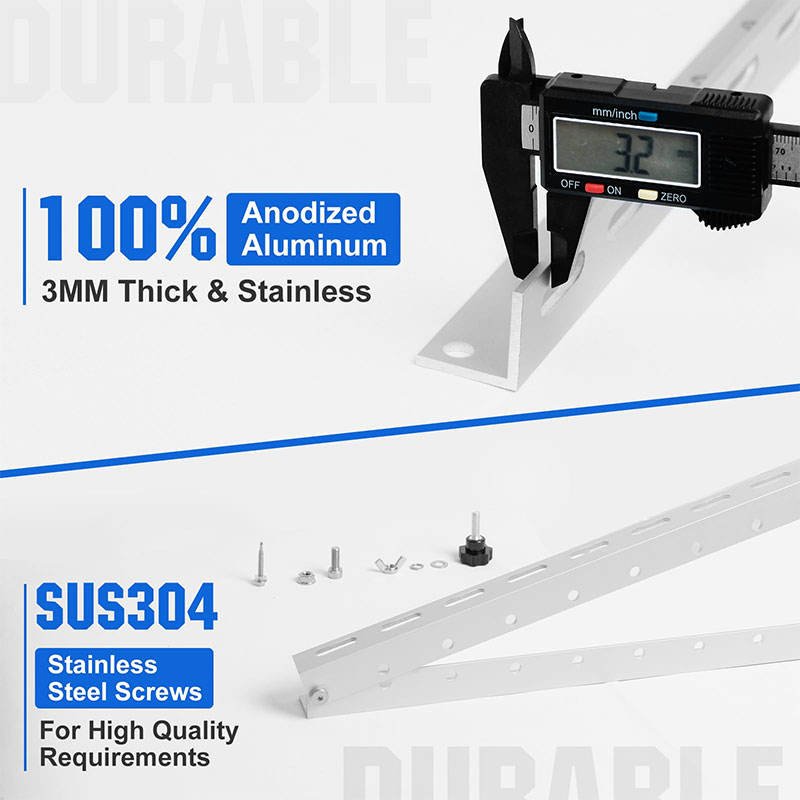

Leveraging our expertise in the metal markets, we utilize only AL6005-T5 Anodized Aluminum Alloy.
Corrosion Resistance: The 3mm thick anodized coating provides a protective barrier against salt spray and oxidation, making it ideal for coastal and marine environments.
Premium Fasteners: Unlike competitors who use galvanized steel, every SinoBolt kit includes SUS304 Stainless Steel bolts and nuts, ensuring the structural integrity of your array for 20+ years.
Engineered for Extreme Weather
Don’t let high winds or heavy snow compromise your investment. Our triangle structure is mechanically optimized to handle:
Wind Loads: Up to 60 m/s (Hurricane force resistance).
Snow Loads: Up to 1.5 kn/m².
Stability: The reinforced base plate and thick-walled aluminum extrusions prevent vibration and micro-cracking of solar cells.

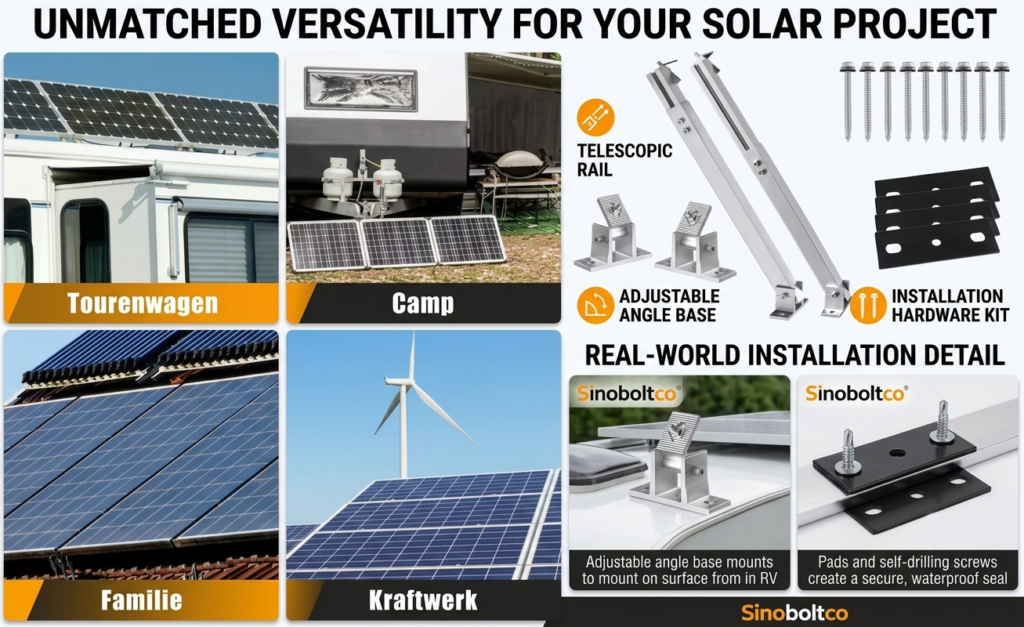

Universal Compatibility & Easy Setup

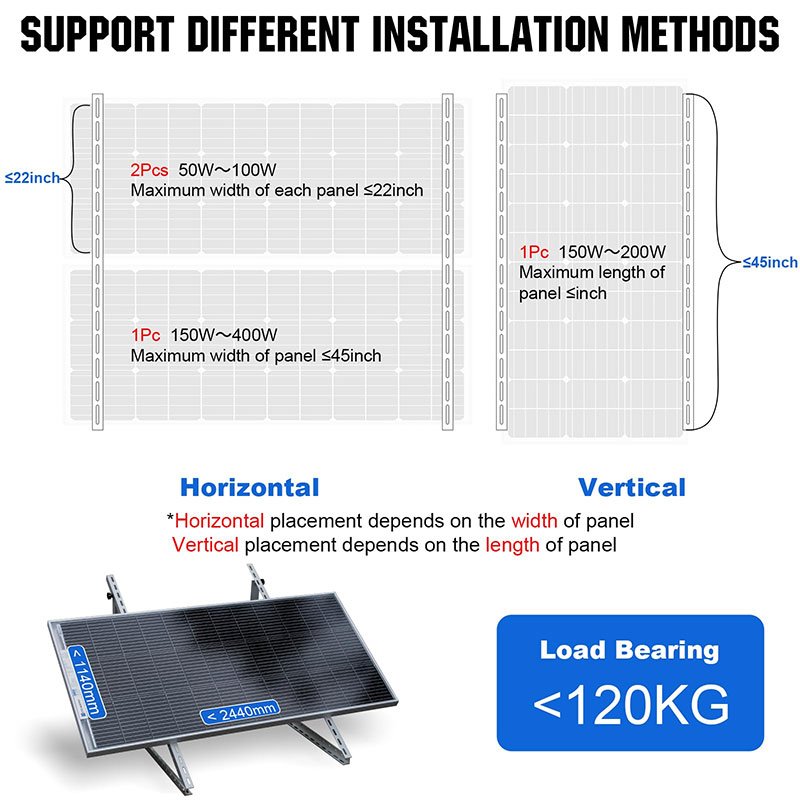

Whether you are installing a single 50W panel or a large 400W high-efficiency module, our bracket adjusts to fit:

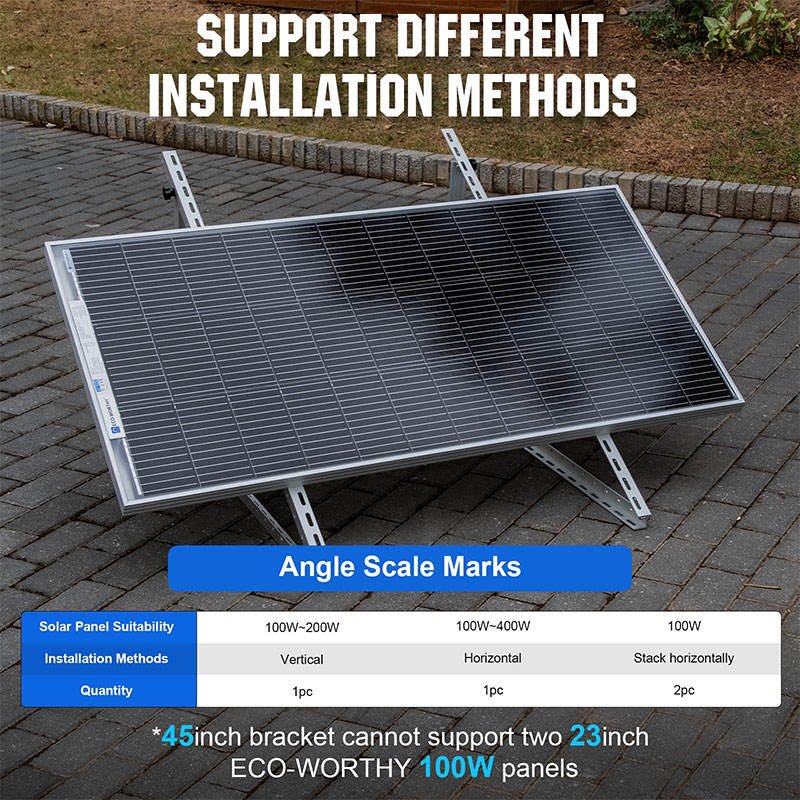

Horizontal Layout: Fits panels up to 45 inches (1140mm) wide.
Vertical Layout: Fits panels up to 45 inches (1140mm) long.
Application: Perfect for RVs, trailers, boats, sheds, garages, or flat ground installations.
Technical Specifications
| Feature | Specification |
| Material | AL6005-T5 Anodized Aluminum |
| Hardware | SUS304 Stainless Steel |
| Adjustability Range | 0° to 90° (with degree markings) |
| Thickness | 3.0 mm |
| Max Wind Speed | 60 m/s |
| Max Snow Load | 1.5 kn/m² |
| Compatible Power | 50W, 100W, 150W, 200W, 300W, 400W |
| Weight | 2.5 kg per set |

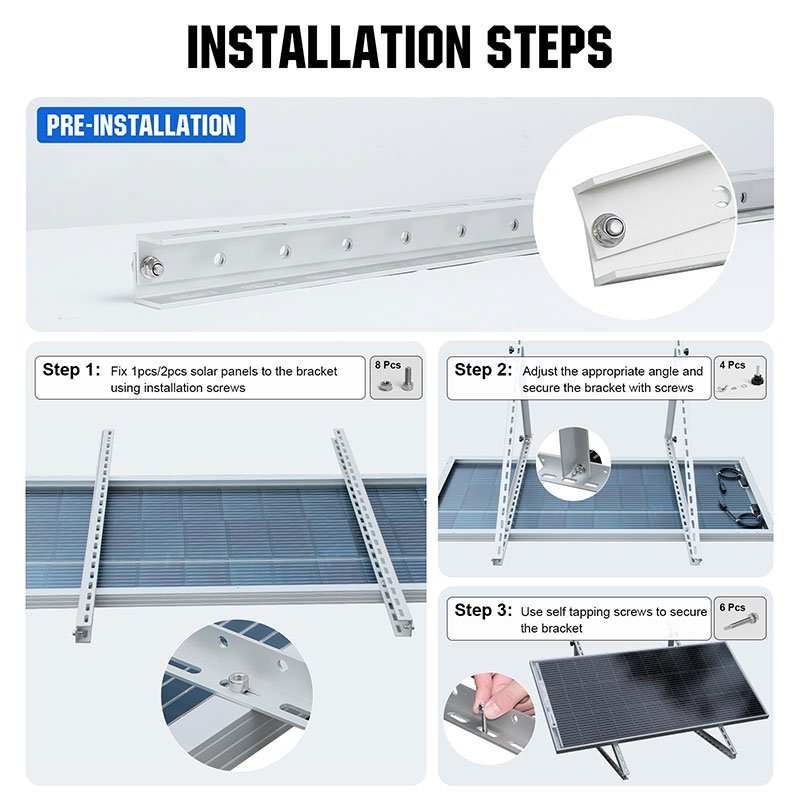

Simple 3-Step Installation Guide
Panel Attachment: Secure your solar panel to the tilting arms using the provided SUS304 bolts.
Angle Adjustment: Loosen the adjustment knobs, align to your desired latitude/angle using the built-in scale, and tighten.
Surface Mounting: Fix the base feet to your roof or ground surface using the included self-tapping screws and waterproof sealant (optional).
SinoBoltco Advantage: From Futures to Finished Product
As a company deeply rooted in metal futures and supply chain management, SinoBoltco guarantees material transparency. We understand the volatility of raw material costs and the importance of alloy purity. When you buy from us, you are buying factory-direct quality backed by professional structural insights.
Advantages
Cost-Effective: Achieve up to 25% more solar energy by simply adjusting the angle twice a year.
Lightweight yet Robust: Weighing only 2.5kg, it adds minimal stress to your roof while providing maximum stability.
Customizable: Supports OEM LOGO and bulk customization for distributors and installers.
What solar hardware products does Sinoboltco offer?

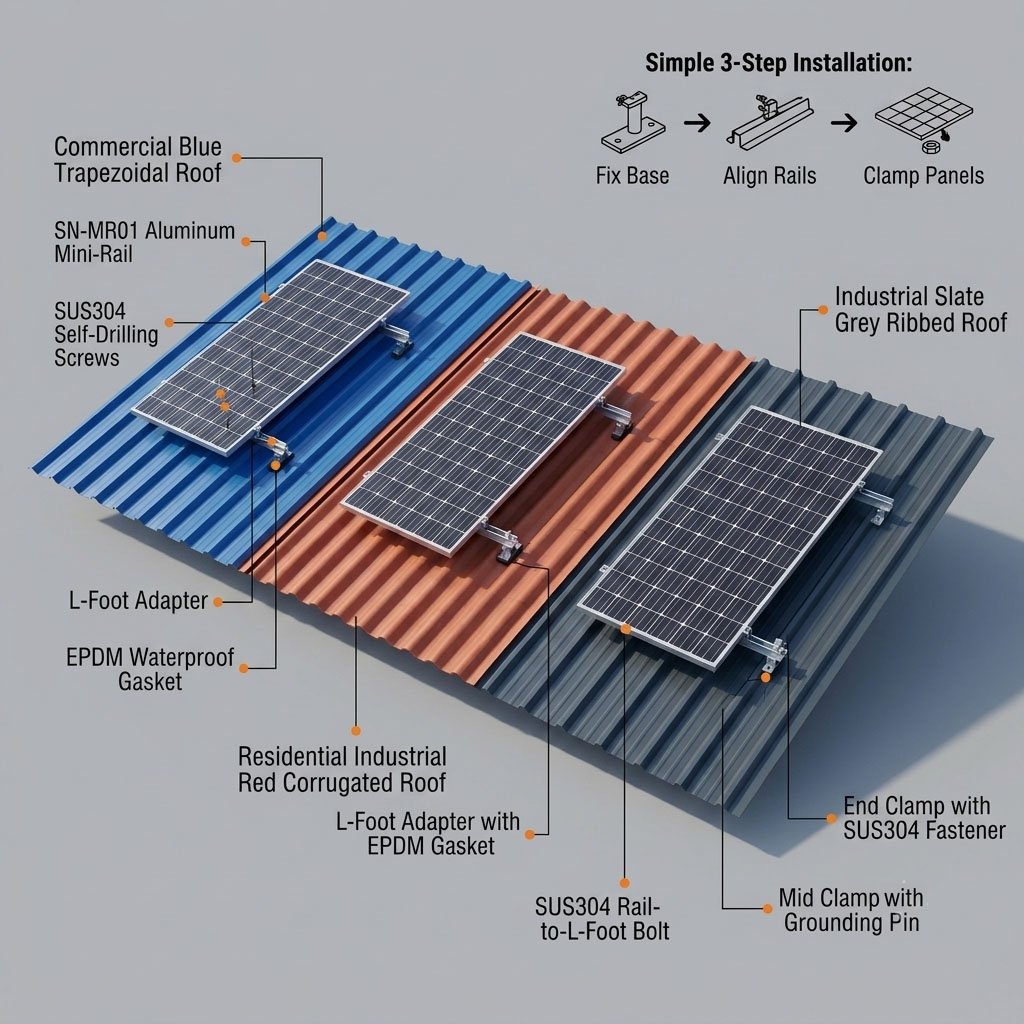

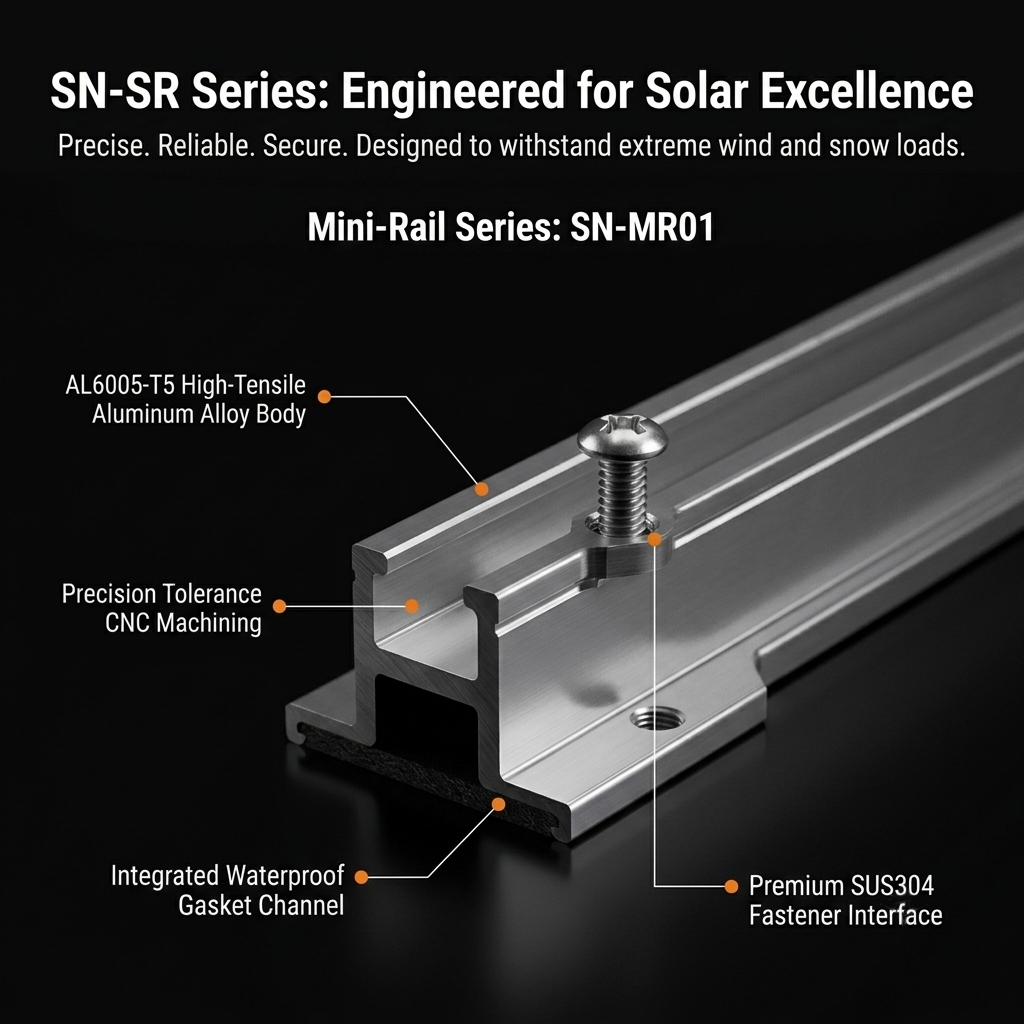

We engineered a comprehensive range of premium solar mounting components under our proprietary SN Series. Our portfolio includes high-tensile aluminum mini-rails, adjustable tilt brackets, tile/tin roof hooks (L-feet series), mid & end clamps with grounding pins, and heavy-duty SUS304/316 fastening interfaces. Every component is optimized to deliver maximum structural integrity for commercial, residential, and utility-scale solar projects.
How do I place an order or get a quote?
Browse our product catalog and note the specific requirements (diameter, grip length, and material). You can click the “Inquiry” button or email us directly with your technical drawings. Our technical representative will provide a detailed quote and lead-time assessment within 24 hours.
Can you print our company logo on the components, and do you accept custom designs?
Yes, absolutely. We fully accept both OEM & ODM orders. We operate under strict corporate identity protocols, meaning we strip away all domestic factory codes and can laser-etch your custom company logo and brand-specific serial numbers directly onto the aluminum profiles and packaging. Simply provide your CAD drawings or technical specifications, and our engineering team will handle the rest.

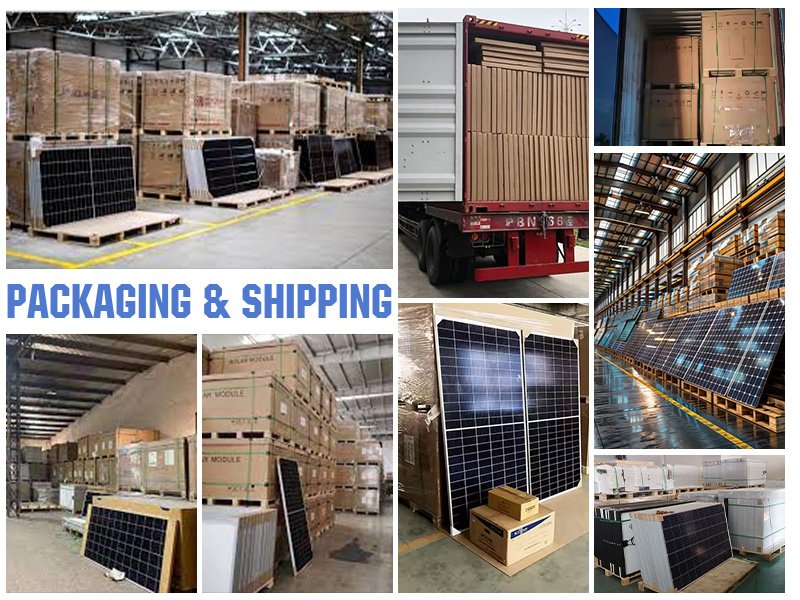

What are the typical shipping times and manufacturing lead times?
Production: Regular orders are processed within 10-15 working days, while bulk industrial orders take 15-20days.
Shipping: We offer Express Delivery (5-7 days) for urgent requirements and Sea Freight (20-35 days) for cost-effective bulk shipments.
Can I inspect the facility or meet the team?
Absolutely. We value transparency. You are welcome to visit our office in Shanghai. For international clients, we offer live video inspections and virtual tours to verify production standards and quality control processes.
How does Sinoboltco ensure the structural safety of the mounting hardware?
Structural integrity is our highest priority. All SN-SR Series solar hardware is manufactured using high-strength AL6005-T5 aluminum alloy and premium SUS304/316 stainless steel fasteners, integrated with high-density EPDM waterproof gaskets. Our systems are engineered and rigorously tested to withstand extreme wind loads (up to 60 m/s) and severe snow loads (up to 1.4 kN/m²), ensuring a 25-year operational lifespan in harsh outdoor environments.
How do you protect bulk buyers from volatile aluminum and steel raw material prices?
Unlike traditional factories vulnerable to sudden market spikes, Shanghai Sinoheng Technology Co., Ltd. utilizes strategic commodity futures and raw material hedging. By tracking and locking in positions on primary metals, we mitigate inflation risks and freeze optimal pricing for our long-term EPC contractors and bulk volume buyers worldwide, ensuring stable, predictable supply chain budgeting.
What is your minimum order quantity (MOQ) policy for global delivery?
As a dedicated B2B supplier focused on high-volume project deployment, we prioritize container-load and commercial-scale inquiries. To allow technical verification and structural fitment tests before full procurement, we cap sample orders at a maximum of 10 units per base model. All standard commercial quotes are provided on an EXW, FOB Shanghai, or CIF destination basis.
HEAVY-DUTY SOLAR HARDWARE & CUSTOM OEM/ODM ENGINEERING
LARGE STOCK & FAST GLOBAL DELIVERY
Port Proximity:Shanghai. Streamlined export processes for rapid global shipping.
