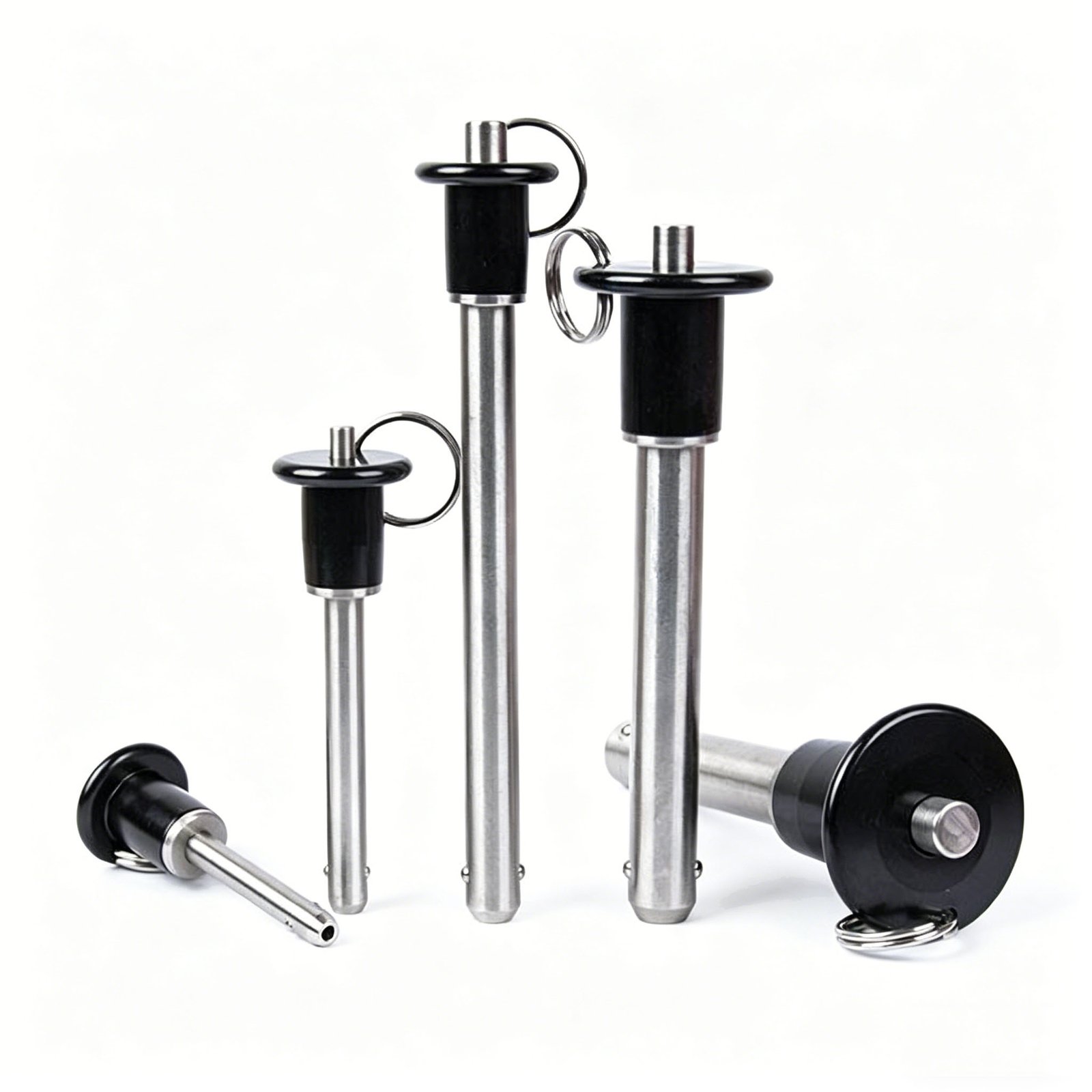

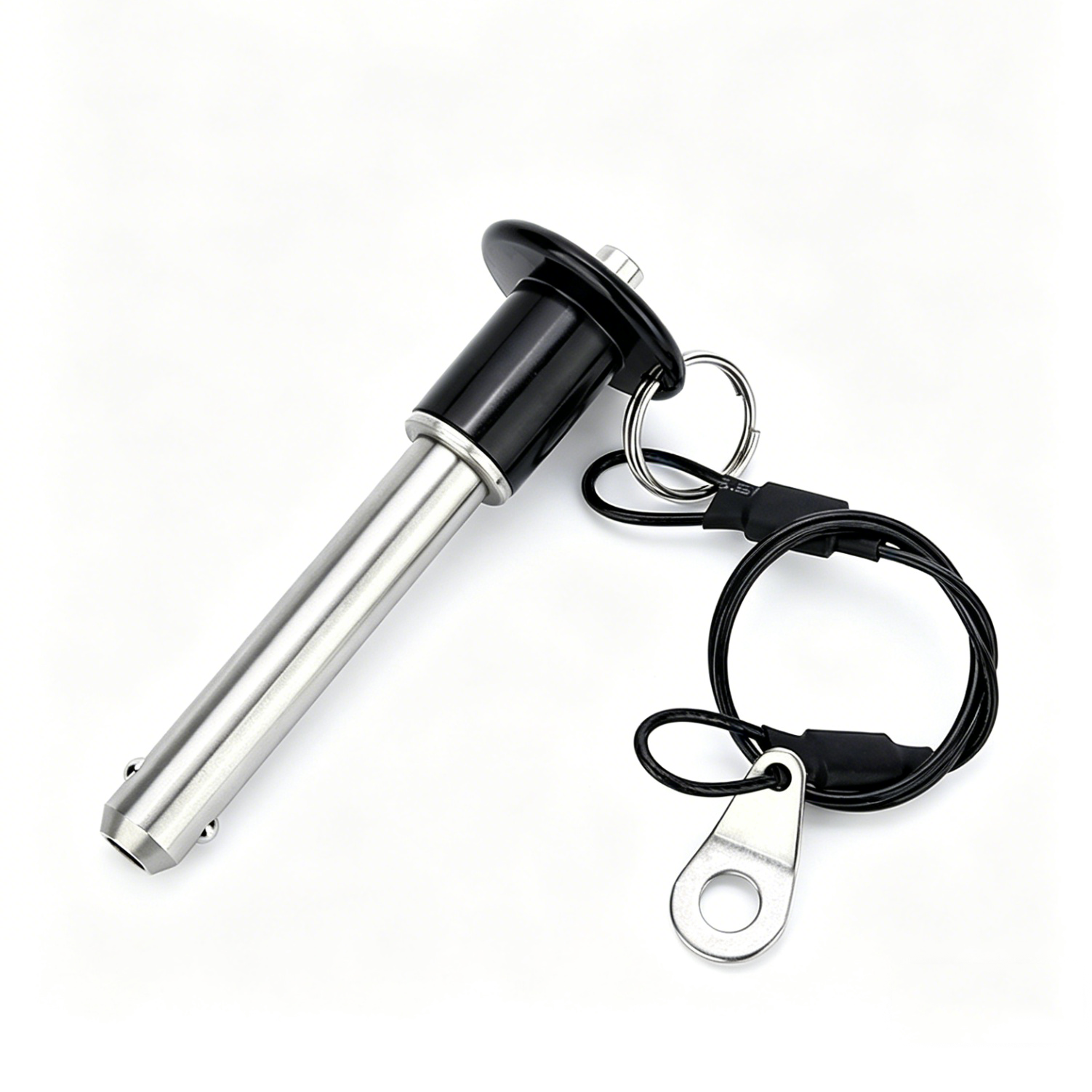

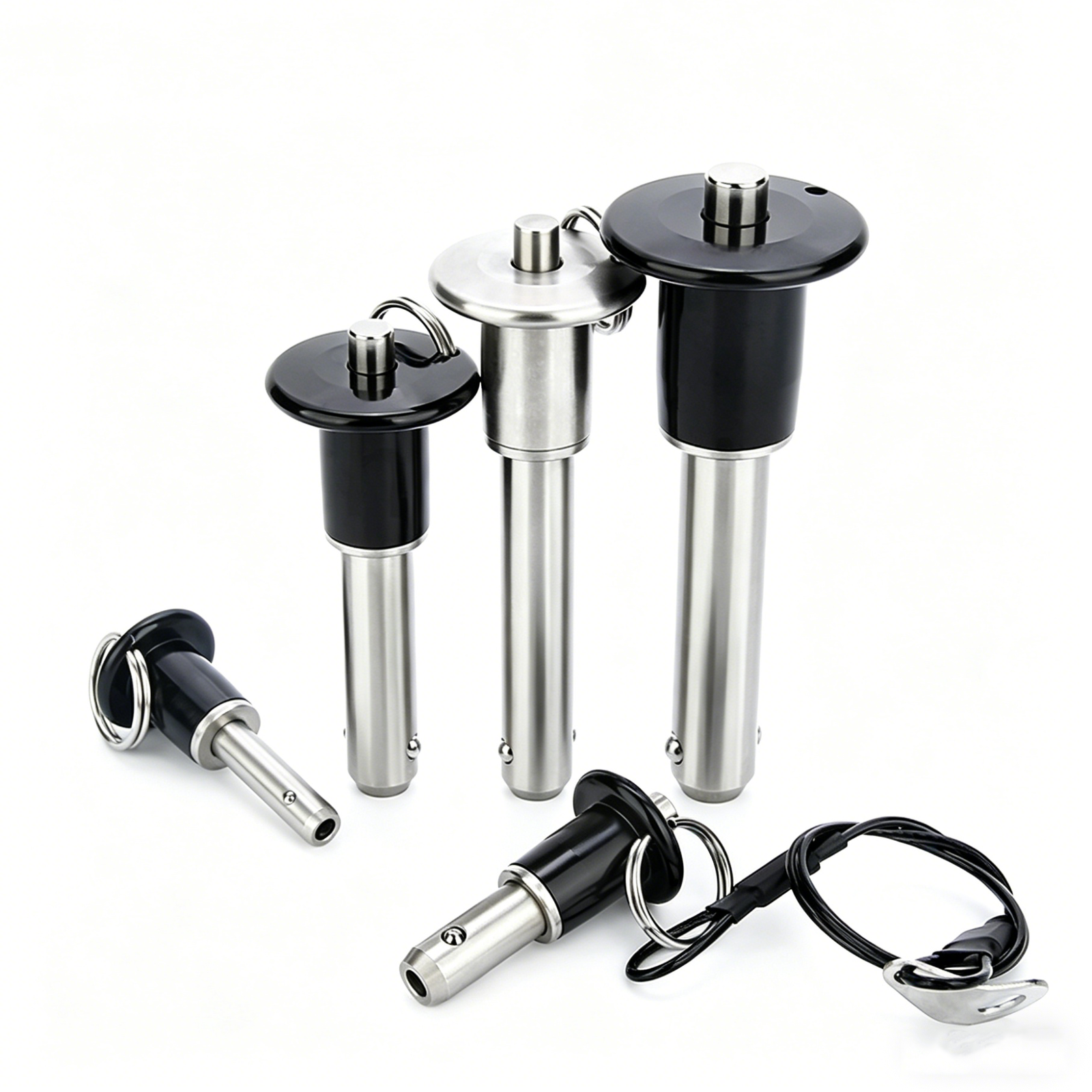

Stainless Steel Quick Release Ball Lock Pin – Heavy Duty Push Button Locking Pin
$8.50
Mechanism: Positive self-locking with push-button release.

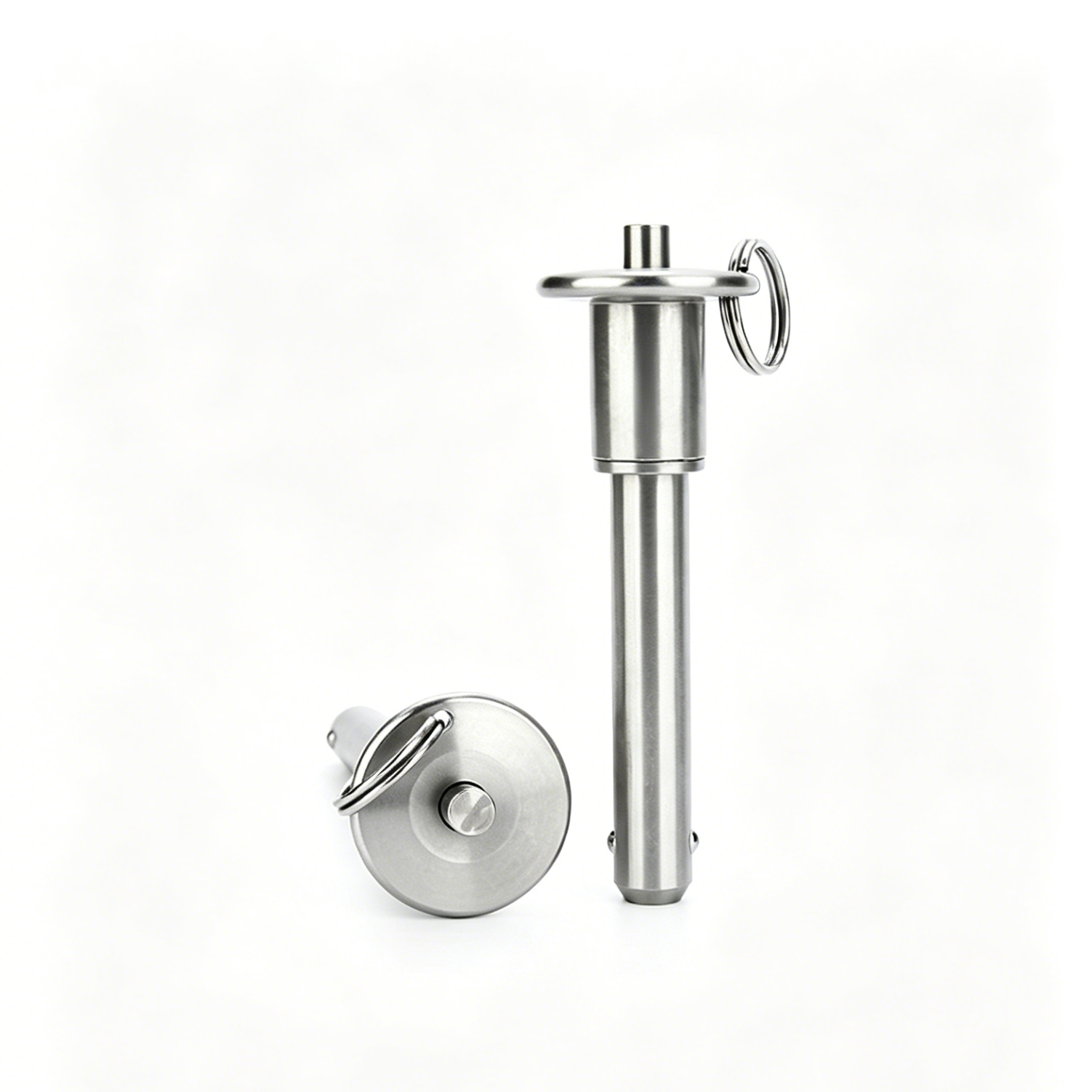

Material: Corrosion-resistant 304/316 Stainless Steel.
Handle Style: Ergonomic button head for flush-mount applications.
Durability: High double-shear strength for heavy-load safety.
Lead Time: Standard sizes ship within 7–10 days.
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.

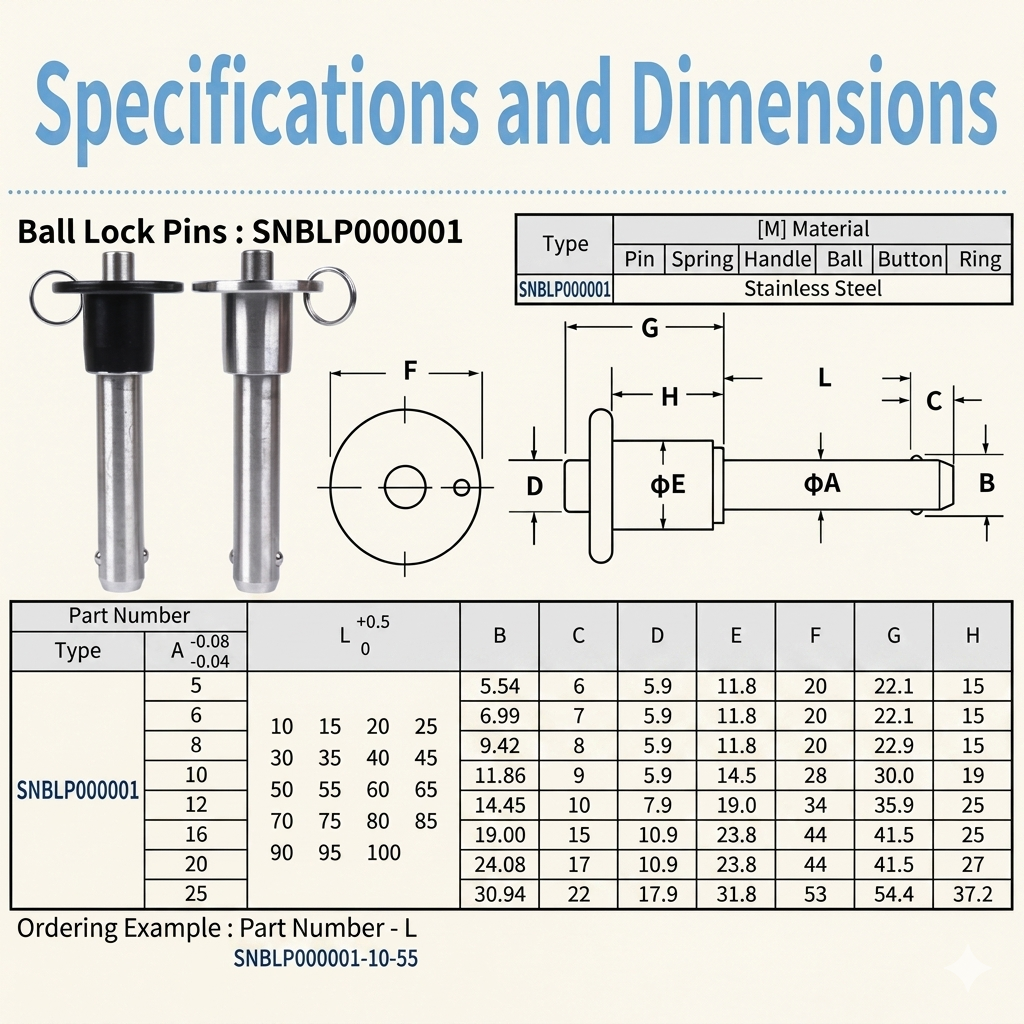

| Key attributes | |||
|---|---|---|---|
| type | Ball Lock Pin | material | Stainless Steel |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | snblp000010 |
| Product name | Ball Lock Pin | Pin Diameter | 5mm-25mm/Custom |
| Pin Length | 10mm-100mm/Custom | Keyword | Quick Release Pin |
| Service | OEM/ODM | Aftersales | 1 on 1 Customer Service |
| MOQ | 1 PCS | Custom MOQ | 100 PCS |
| Application | Machinery/Equipments | Surface treatment | Electrophoresis |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.500 kg |
| Delivery Time | |||
|---|---|---|---|
| Quantity | 1 – 200 | 201-500 | > 500 |
| Eastern Time (days) | 7 | 15 | To be determined |
Function: Tool-free quick-release fastening for repeated assembly/disassembly. Direct replacement for threaded fasteners in applications requiring frequent cycling.
Mechanism:
Internal alignment spindle actuates two radial locking balls.
Button depression retracts balls into the shaft for insertion/removal; release extends balls to lock against the bore wall.
Secure retention dependent on proper bore alignment and standard hole clearance.

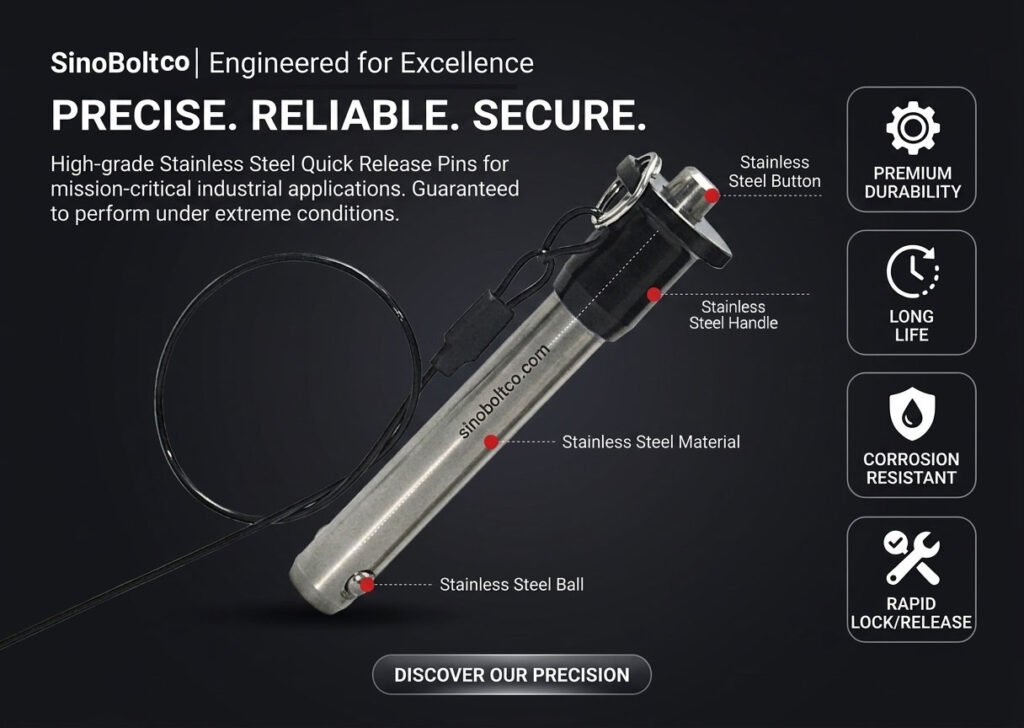

Materials:
Body/Shaft: SUS304 or SUS316 stainless steel (as specified per order).
Spindle/Internal Pin: SUS304 or hardened carbon steel (surface treated for wear resistance).
Locking Balls: Hardened SUS420C or SUS304 stainless steel.
Tolerances:
Shaft Diameter (A): Dedicated negative clearance fit, precision-controlled within -0.04 mm to -0.08 mm (equivalent to ISO d9 tolerance class). This strictly engineered minus-tolerance ensures effortless, jam-free manual insertion and removal in standard commercial alignment holes.
Usable Length (L): Formulated with a functional positive compensation tolerance of +0.5 / 0 mm (complying with standard workshop metric specifications). This guarantees that the effective grip length is never short-changed, maintaining zero-axial-play holding security.
Component Concentricity: CNC-machined within standard commercial tolerances (DIN/ISO compliant) to ensure perfect coaxial alignment between the push-button actuator, full-body spindle, and locking shaft.
Testing & Performance:
Shear Strength: Rated minimum shear load capability tested per standard batch protocols (specific load ratings vary by diameter).
Cycle Life: Guaranteed operational durability under standard manual operating conditions with zero functional degradation.
Applications (Verified Use Cases):
Modular Fixturing: Quick interchange of jig, fixture, and automated tooling components.
Solar Mounting: Panel frame-to-rail structural alignment (vibration-resistant, field-serviceable).
Access Panels: Industrial enclosure doors, maintenance hatches, and protective covers.
Material Handling: Non-rotating structural joints, staging platforms, and alignment positioning.
Note: Not designed for continuous dynamic tensile loading or primary load-bearing structural continuity. Specify SUS316 for high-salinity or corrosive chemical environments.
What value-added services does Sinoboltco provide?
We offer a comprehensive suite of industrial solutions, including OEM/ODM custom manufacturing, free prototyping for bulk projects, and 1-on-1 engineering consultancy. Additionally, we act as a strategic sourcing partner in China for clients requiring specialized hardware procurement and quality inspection.
How do I place an order or get a quote?
Browse our product catalog and note the specific requirements (diameter, grip length, and material). You can click the “Inquiry” button or email us directly with your technical drawings. Our technical representative will provide a detailed quote and lead-time assessment within 24 hours.
What is the Minimum Order Quantity (MOQ)?
For standard components in stock, we support your prototyping needs with an MOQ of just 1 piece. For custom-engineered or non-standard parts, the MOQ typically starts at 100 pieces, depending on the manufacturing complexity.
What are the typical shipping times and manufacturing lead times?
Production: Regular orders are processed within 5-7 working days, while bulk industrial orders take 10-15 days.
Shipping: We offer Express Delivery (5-7 days) for urgent requirements and Sea Freight (20-35 days) for cost-effective bulk shipments.
Can I inspect the facility or meet the team?
Absolutely. We value transparency. You are welcome to visit our office in Shanghai. For international clients, we offer live video inspections and virtual tours to verify production standards and quality control processes.
