Carbon Steel Hexagon Spring Plunger – Metric Thread M3-M16, Loosening Prevention Coating, Custom Load Ratings for Industrial Positioning & Detent | sinoboltco
$0.80
Standard metric coarse thread carbon steel spring plungers (model SNSP000004) for industrial positioning, indexing, and detent fixtures. Features internal hexagon drive, carbon steel housing, and choice of hardened carbon steel or POM contact pin. Sizes M5 to M16 include optional nylon/polyamide thread-locking patch for vibration resistance. Available thread sizes range from M3 to M16 across four standard spring load classifications (Ultra-Light to Ultra-Heavy).
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Key attributes | |||
|---|---|---|---|
| type | Spring Plunger | material | Stainless Steel |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | snsp000004 |
| Product name | Spring Plunger | Head Diameter | M3/M4/M5/M6/M8/M10/M12/M16 |
| Pin Length | 1-4.5mm/custom | Keyword | Spring Plunger |
| Service | OEM/ODM | Aftersales | 1 on 1 Customer Service |
| MOQ | 1 PCS | Custom MOQ | 100 PCS |
| Application | conveyer / transportation |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.050 kg |
| Delivery Time | |||
|---|---|---|---|
| Quantity | 1 – 1000 | 1001 – 5000 | > 5000 |
| Eastern Time (days) | 5 | 15 | To be determined |

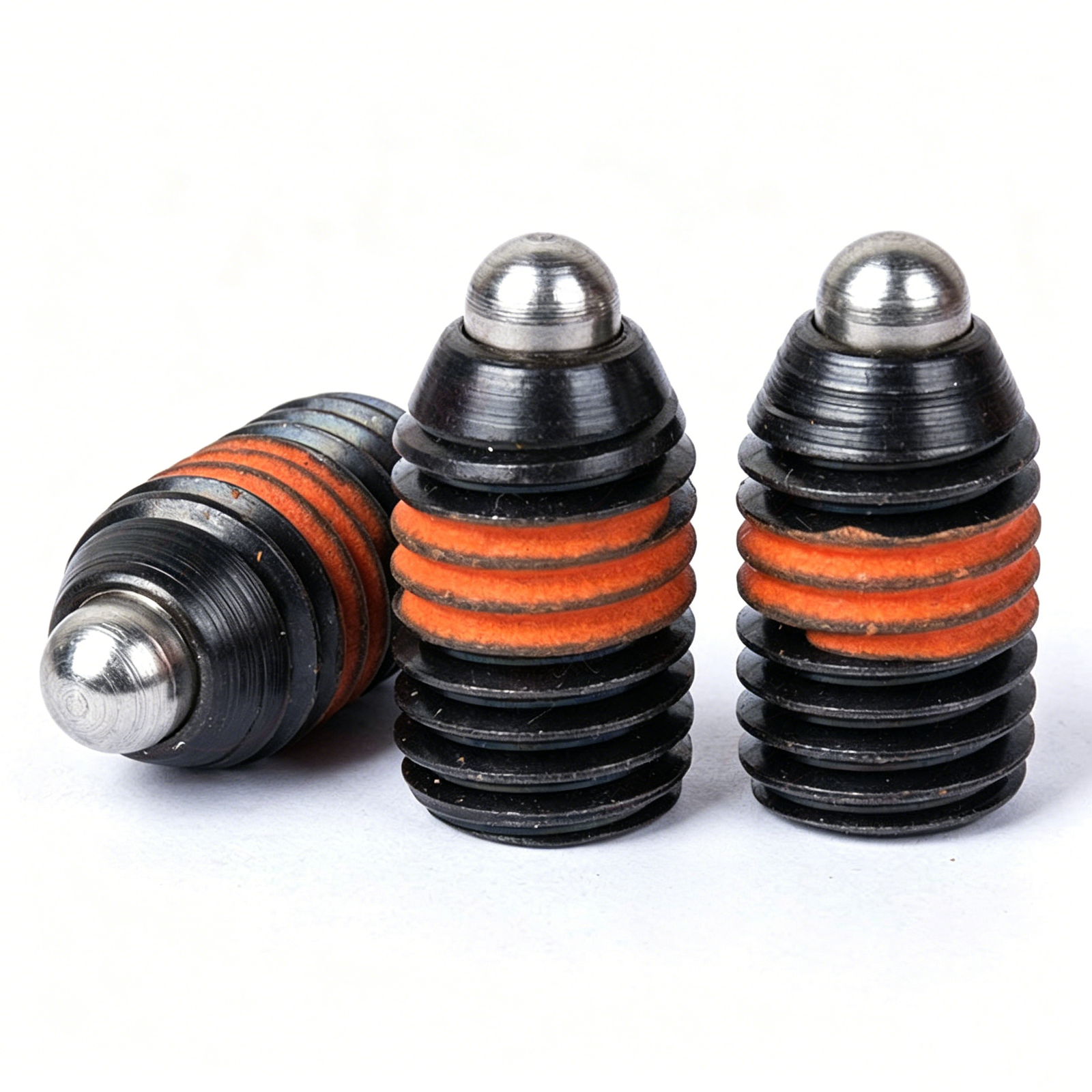

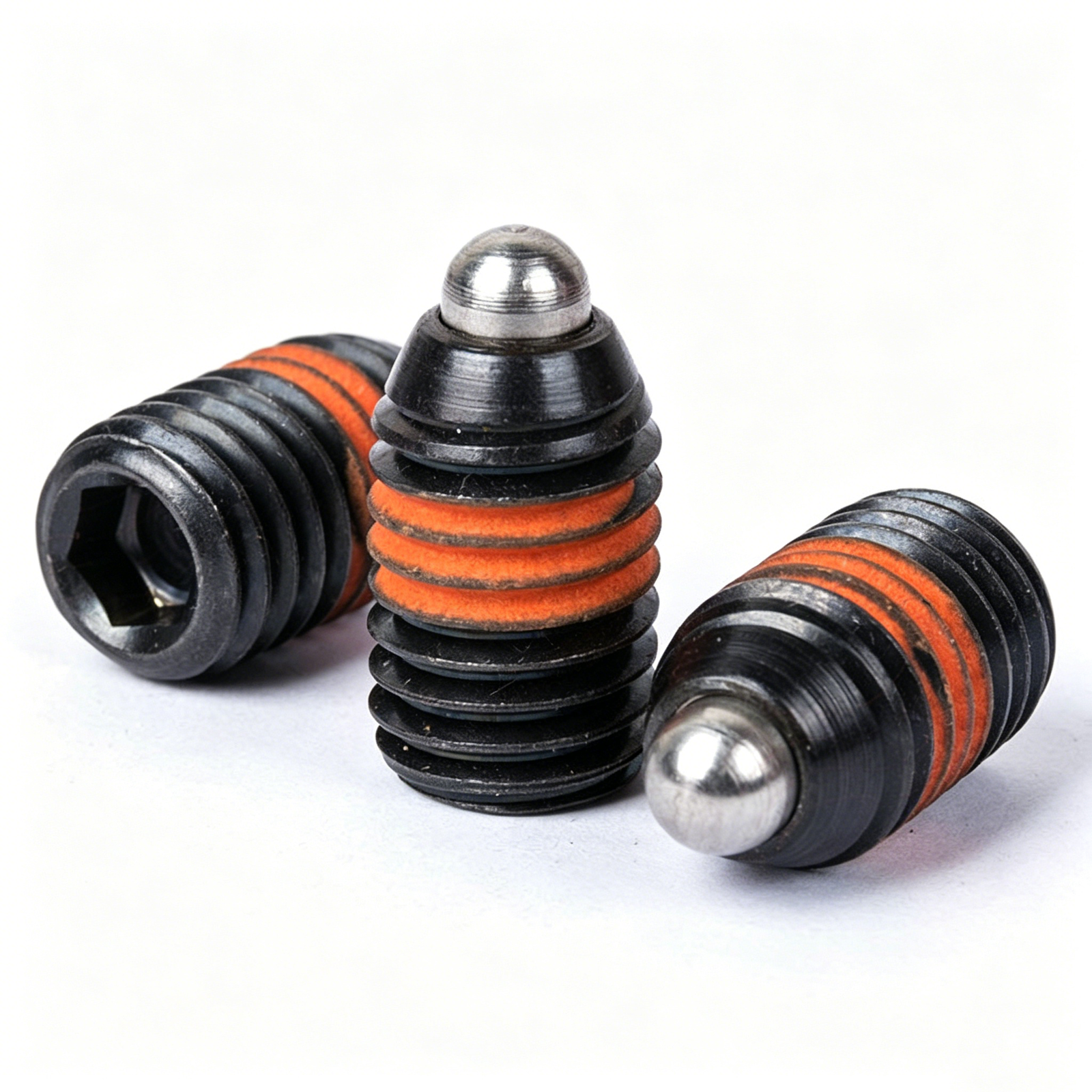

The sinoboltco SNSP000004 is a standard-profile hexagon socket spring plunger designed for mechanical retention, alignment, and indexing assemblies. The body is machined from free-cutting carbon steel (black oxide finish) with a built-in internal hex drive on the rear face for blind-hole installation using standard hex keys. Sizes M5 through M16 are treated with a reusable mechanical thread-locking patch to prevent counter-rotation under operational vibration.

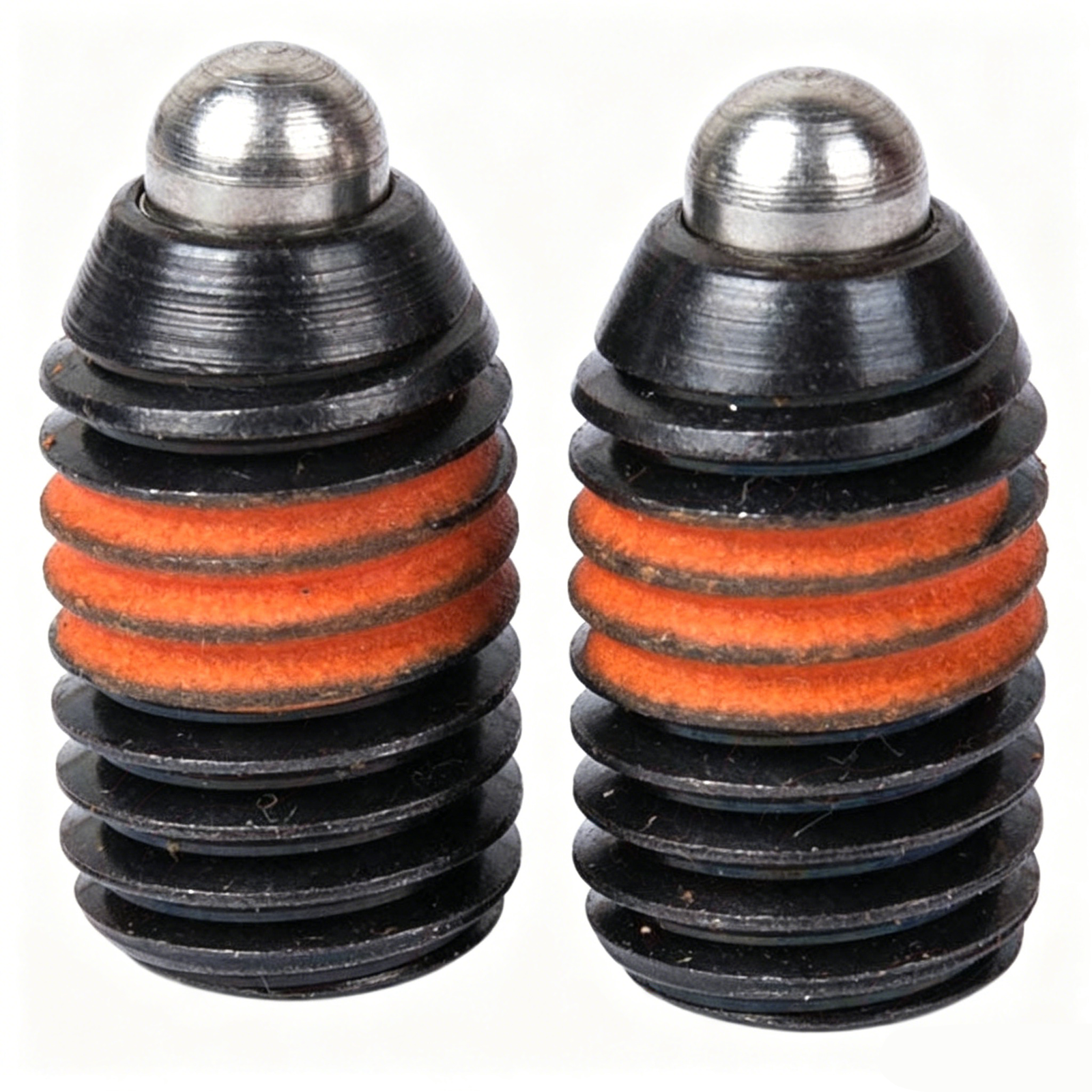

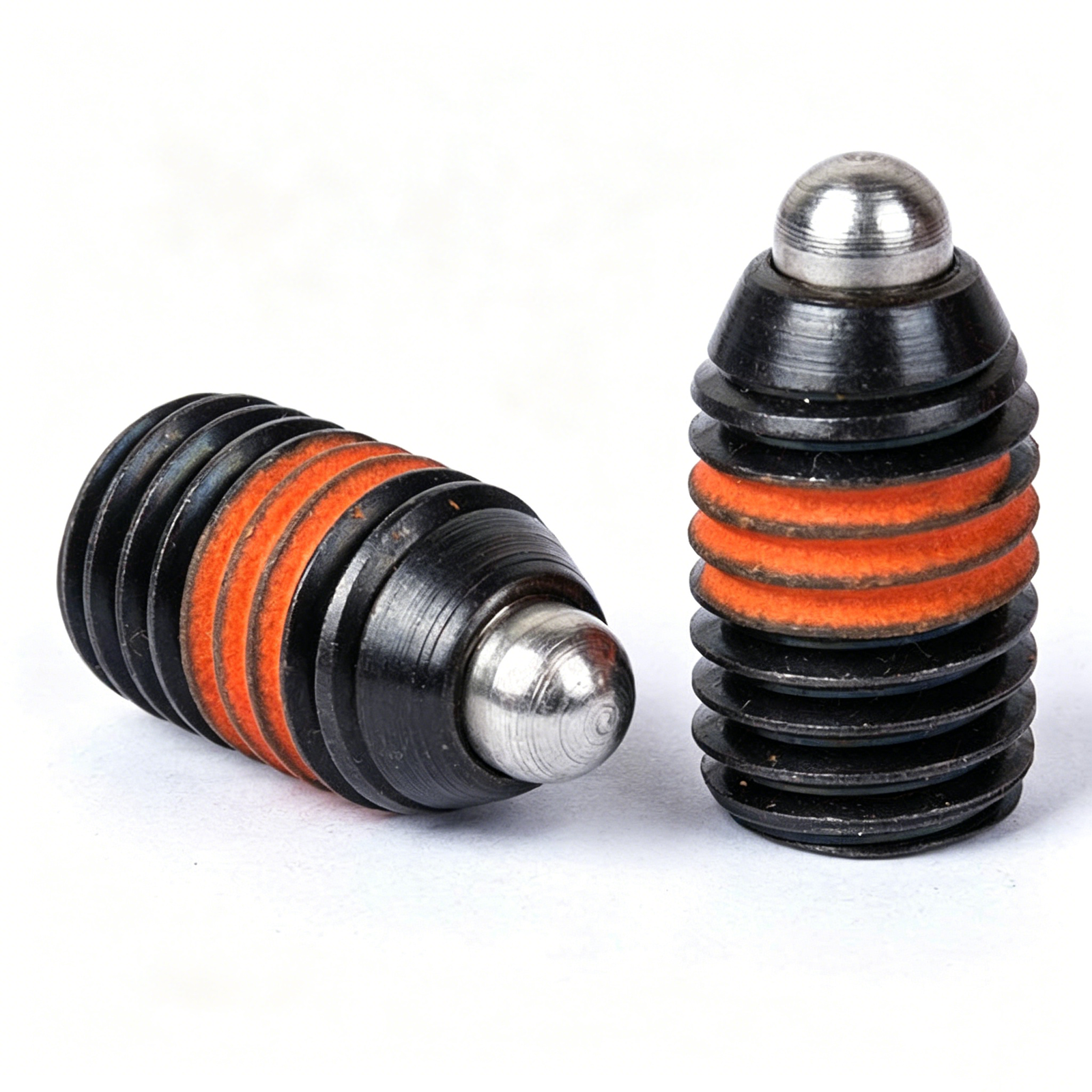

The internal compression assembly uses a carbon steel spring providing linear force directly against the pin nose. For applications requiring high shear strength and surface wear resistance, select the case-hardened carbon steel pin. For applications involving soft metals, aluminum plates, or polished contact surfaces where scratching must be avoided, select the POM (polyoxymethylene) pin. Typical applications include workholding jigs, indexing plates, automated conveyor stops, die positioning components, and robotic end-of-arm tooling.
Technical Advantages
Vibration Resistance: Pre-applied high-friction thread patch on sizes M5-M16 eliminates the need for secondary liquid thread-lockers.
Standard Force Scales: Four calibrated spring configurations match varying mechanical resistance specifications.
Pin Material Selection: Interchangeable carbon steel (high shear resistance) or POM (non-marring, low friction) contact pins.
Recessed Installation: Internal hex socket drive configuration allows flush or sub-flush mounting in space-constrained fixtures.
Metric Compatibility: Manufactured to standard metric tolerances for direct integration into existing global machinery layouts.
Technical Product Specifications

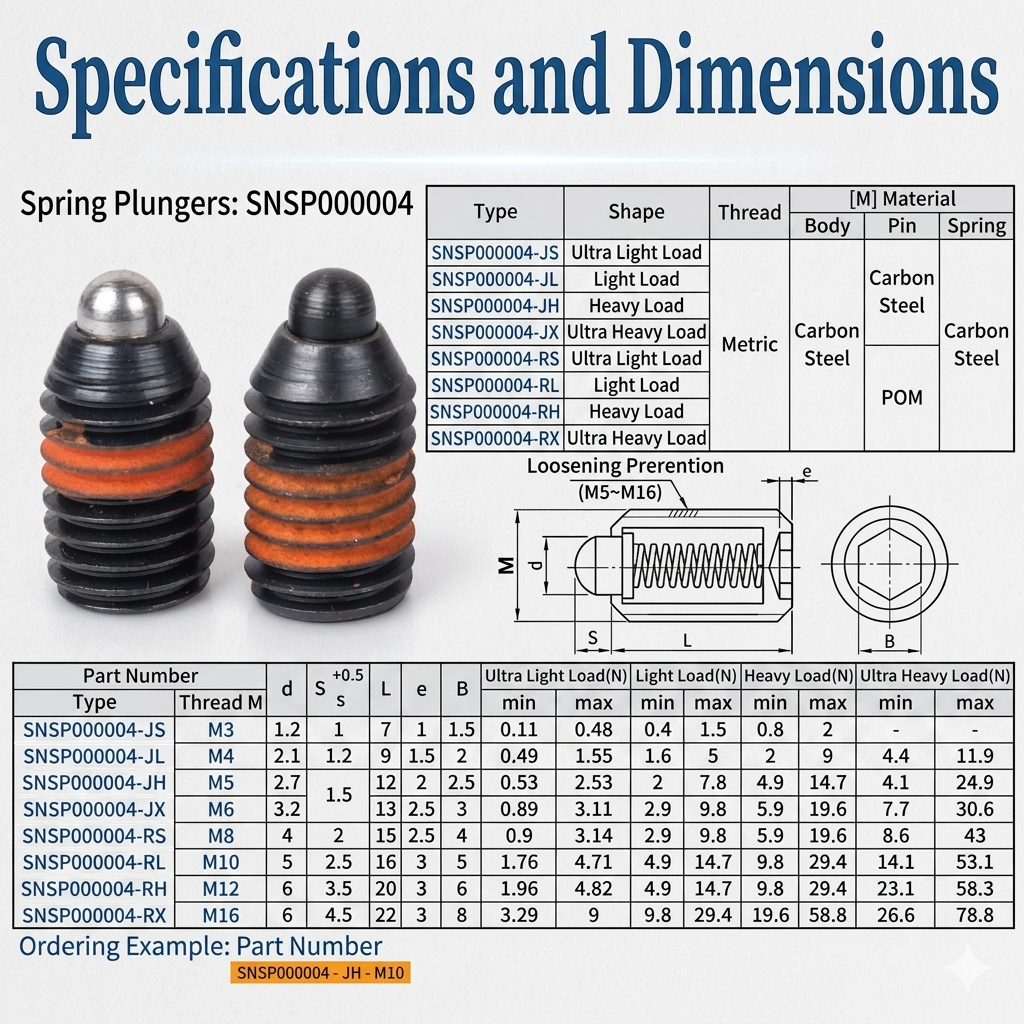

| Part Number Model | Thread M | Pin Dia. d (mm) | Stroke S (mm) | Length L (mm) | Drive Width B (mm) | Ultra-Light Load (Min – Max N) | Light Load (Min – Max N) | Heavy Load (Min – Max N) | Ultra-Heavy Load (Min – Max N) |
| SNSP000004-M3 | M3 | 1.2 | 1.0 | 7.0 | 1.5 | 0.11 – 0.48 | 0.4 – 1.5 | 0.8 – 2.0 | N/A |
| SNSP000004-M4 | M4 | 2.1 | 1.2 | 9.0 | 2.0 | 0.49 – 1.55 | 1.6 – 5.0 | 2.0 – 9.0 | 4.4 – 11.9 |
| SNSP000004-M5 | M5 | 2.7 | 1.5 | 12.0 | 2.5 | 0.53 – 2.53 | 2.0 – 7.8 | 4.9 – 14.7 | 4.1 – 24.9 |
| SNSP000004-M6 | M6 | 3.2 | 1.5 | 13.0 | 3.0 | 0.89 – 3.11 | 2.9 – 9.8 | 5.9 – 19.6 | 7.7 – 30.6 |
| SNSP000004-M8 | M8 | 4.0 | 2.0 | 15.0 | 4.0 | 0.90 – 3.14 | 2.9 – 9.8 | 5.9 – 19.6 | 8.6 – 43.0 |
| SNSP000004-M10 | M10 | 5.0 | 2.5 | 16.0 | 5.0 | 1.76 – 4.71 | 4.9 – 14.7 | 9.8 – 29.4 | 14.1 – 53.1 |
| SNSP000004-M12 | M12 | 6.0 | 3.5 | 20.0 | 6.0 | 1.96 – 4.82 | 4.9 – 14.7 | 9.8 – 29.4 | 23.1 – 58.3 |
| SNSP000004-M16 | M16 | 8.0 | 4.5 | 22.0 | 8.0 | 3.29 – 9.00 | 9.8 – 29.4 | 19.6 – 58.8 | 26.6 – 78.8 |
Note: Thread locking treatment applies to standard production runs for sizes M5 through M16.
