1. Core Engineering Specifications (SNBLP000007)
Quick-release fasteners require precise fitment to prevent axial play and shear failure. SNBLP000007 integrates a push-button mechanism with dual-locking hardened balls.
| Parameter | Specification | Engineering Purpose |
| Model Code | SNBLP000007 | Sinoboltco Proprietary Series |
| Pin Shaft Diameter (ΦA) | 6 mm, 8 mm, 10 mm, 12 mm (-0.04 to -0.08 mm) | Strict f8/h7 clearance fit for zero-play positioning |
| Grip Length (L) | 10 mm to 100 mm | Customizable for multi-layer plate clamping |
| Locking Mechanism | Dual AISI 304/316 Stainless Steel Balls | High shear force retention under dynamic loads |
| Handle Material | Ergonomic Nylon 6 Mushroom Head | Color-coded (Red / Black / Blue) for system identification |
| Body Material | AISI 304 / AISI 316 Stainless Steel | Corrosion resistance in harsh industrial environments |
2. Working Principle & Load Performance
Push-Button Operation
Actuation: Pressing the Nylon 6 top button depresses the internal spring-loaded spindle.
Retraction: The spindle’s narrow recess aligns with the dual locking balls, allowing them to retract fully into the pin body.
Insertion / Removal: The pin slides smoothly into the locating hole with f8/h7 precision.
Locking: Releasing the button pushes the spindle back, locking the balls outward against the mounting collar.
Double Shear Force Resistance
Designed for high-stress modular fixtures, CNC tooling plates, and aerospace jigs, the hardened stainless steel shaft transfers shear forces directly across the body, eliminating bolt-threading wear.
3. Supply Chain Optimization: Raw Material Futures Hedging
Stainless steel (AISI 304/316) prices fluctuate based on LME Nickel and SHFE Stainless Steel futures. Unhedged market volatility can impact B2B procurement budgets for multi-year OEM programs.
Raw Material Price Stabilization: Sinoboltco actively hedges raw material exposure using commodity futures.
Fixed-Cost Contracts: Futures hedging locks in steel material costs months in advance, protecting annual contract pricing for high-volume orders.
Supply Guarantee: Pre-hedged raw material reserves ensure stable production lead times regardless of global spot price spikes.

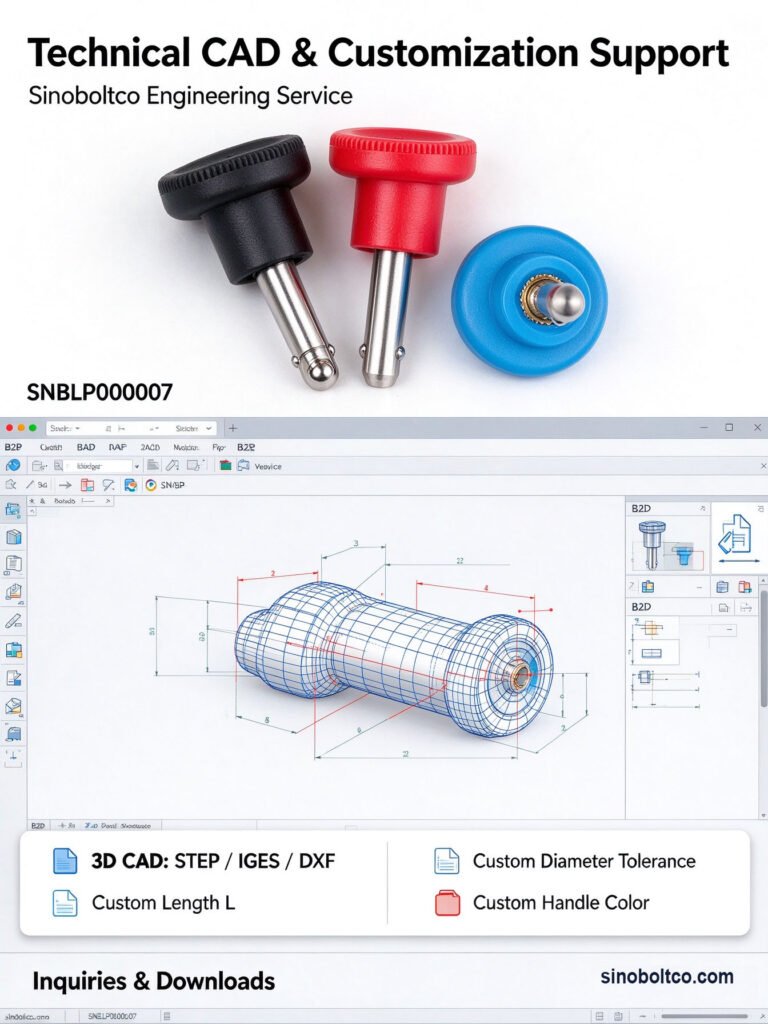

4. Technical CAD & Customization Support
Sinoboltco provides full engineering design support for SNBLP000007:
3D CAD Formats: STEP, IGES, and DXF models available for instant design integration.
Custom Modifications: Special pin lengths (L), diameter tolerances, and custom handle colors available upon request.
Inquiries & Downloads: Visit sinoboltco.com or contact our engineering team directly for CAD downloads and volume quotes.
