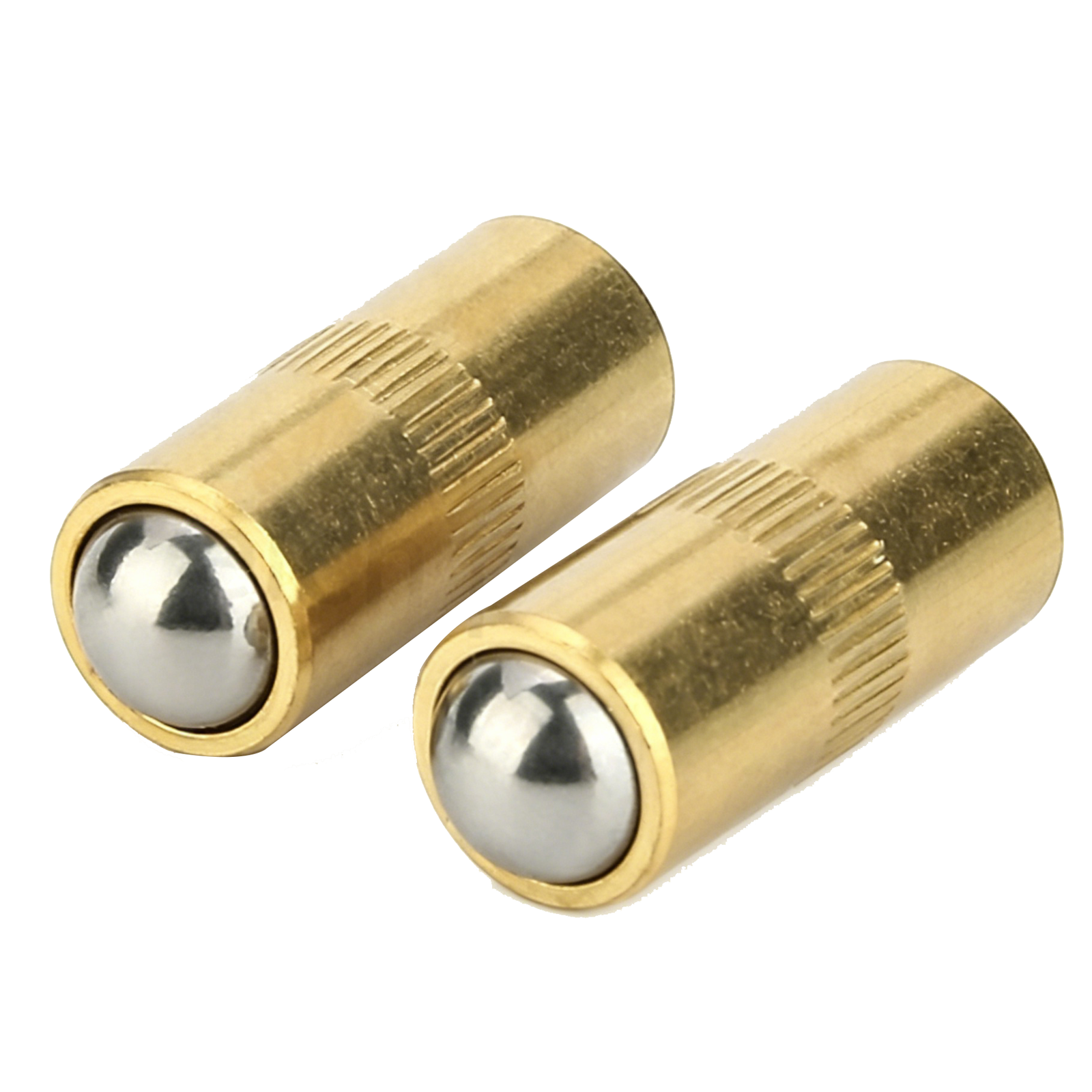

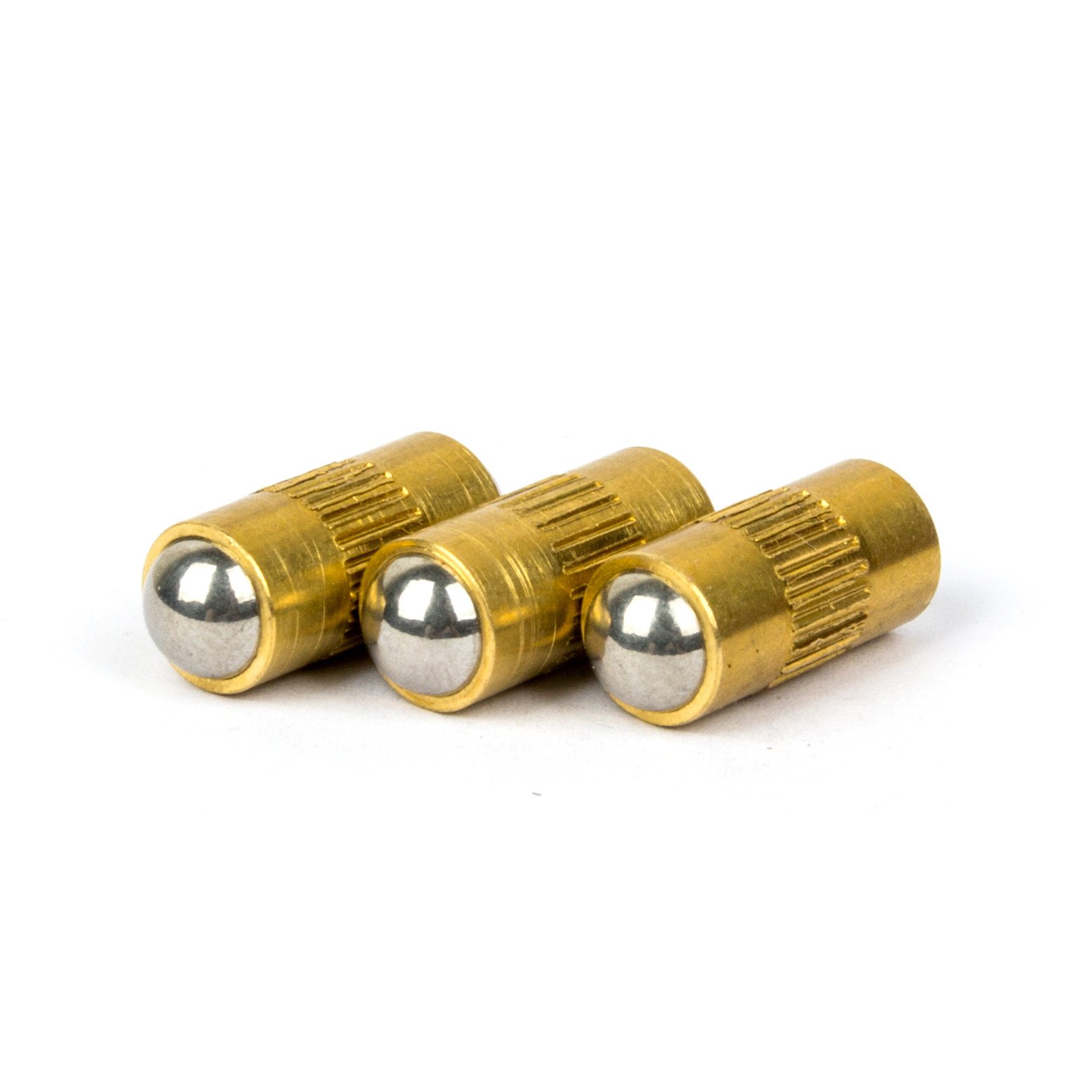

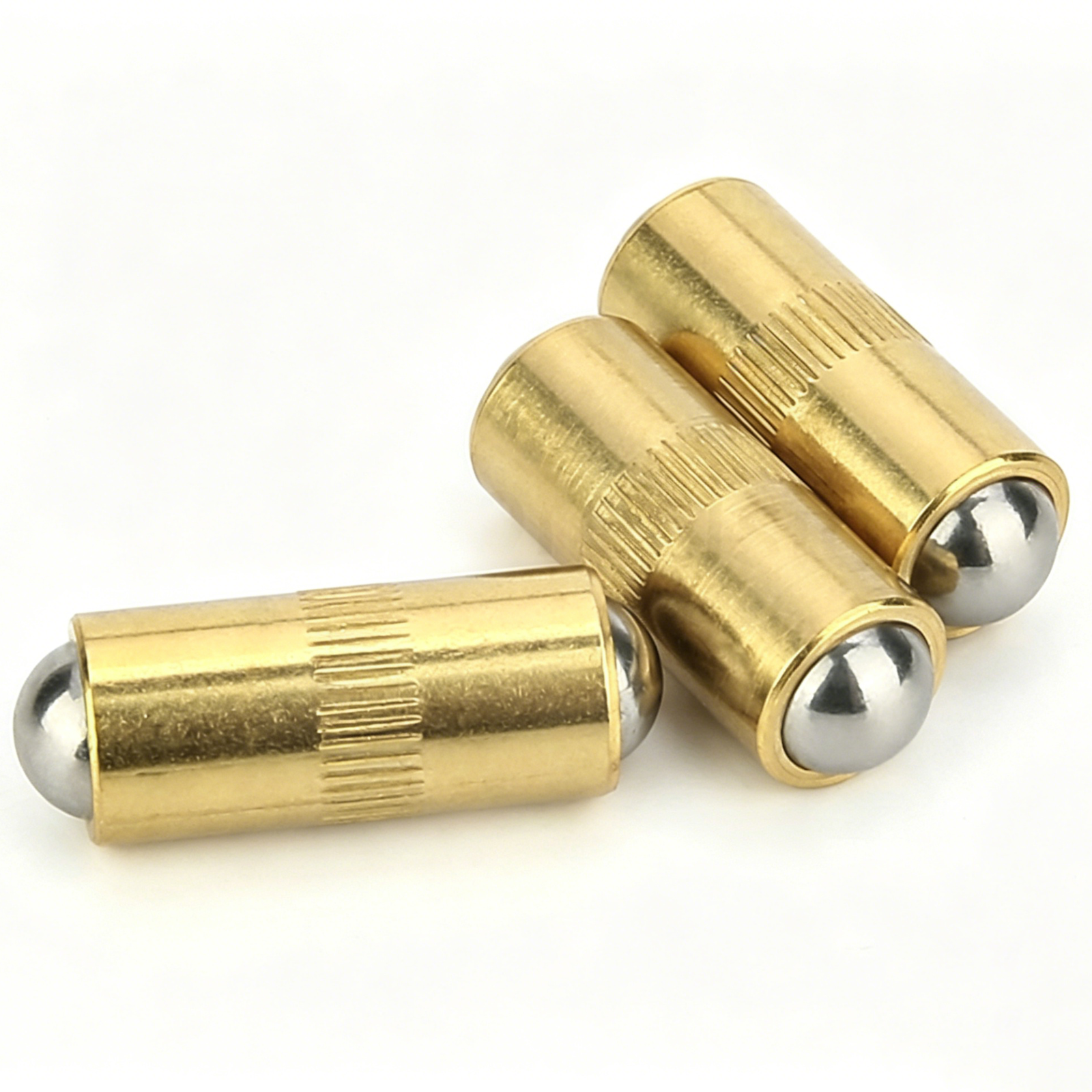

sinoboltco SNBP000003 Double-Ended Knurled Ball Plungers | Brass Press-Fit Spring Loaded Ball Detent Pins
$0.50
Premium double-ended spring-loaded ball plungers by sinoboltco (Model: SNBP000003). Crafted with a durable brass housing and corrosion-resistant stainless steel balls and internal springs. The center-knurled body design allows for reliable, slip-free press-fit installation in non-threaded holes. Available in standard outer diameters from 2.5mm to 8.0mm, with precision-calibrated allowable spring loads ranging from 1.3N up to 15N to ensure stable positioning and smooth indexing.
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Key attributes | |||
|---|---|---|---|
| type | Ball Plungers | material | Brass+Stainless Steel |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | snbp000003 |
| Product name | Ball Plungers | Ball Diameter | 2/2.5/3/4/5/6/6.5mm |
| Diameter | 2.5/3/4/5/6/7/8mm | Keyword | Spring Loaded Ball Plunger |
| Service | OEM/ODM | Aftersales | 1 on 1 Customer Service |
| MOQ | 1 PCS | Custom MOQ | 100 PCS |
| Application | conveyer / transportation |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.050 kg |
| Delivery Time | |||
|---|---|---|---|
| Quantity | 1 – 200 | 201-500 | > 500 |
| Eastern Time (days) | 10 | 15 | To be determined |
The sinoboltco SNBP000003 series represents the pinnacle of compact, reliable mechanical positioning hardware. Designed as a double-ended press-fit component, these knurled ball plungers are engineered for precise detent, indexing, locking, and locating applications where space is limited but reliability cannot be compromised. The unique integration of a brass body with dual stainless steel balls provides smooth mechanical cycling and exceptional longevity in automated systems, jigs, fixtures, and custom hardware assemblies.
Product Advantages
Dual-Material Performance: The combination of a heavy-duty brass shell and dual stainless steel components yields excellent natural lubricity, minimum wear, and zero rusting.
True Press-Fit Knurling: The raised straight-knurl band at the center of the SNBP000003 ensures a tight, friction-locked interference fit inside smooth bored holes, eliminating the need for costly tapping operations.
Double-Sided Functionality: The dual-ball layout allows for symmetrical positioning and balanced mechanical force distributions across your assemblies.
Strict Load Calibration: From the lightweight 1.3N option up to the heavy-duty 15N option, our internal springs deliver highly predictable mechanical resistance through millions of duty cycles.
Product Features
Brand/Model: sinoboltco SNBP000003
Housing Material: High-grade Free-Cutting Brass (straight knurled mid-section)
Ball & Internal Spring Material: Heavy-duty Stainless Steel
Fitment Type: Press-in / Push-in smooth-bore mounting

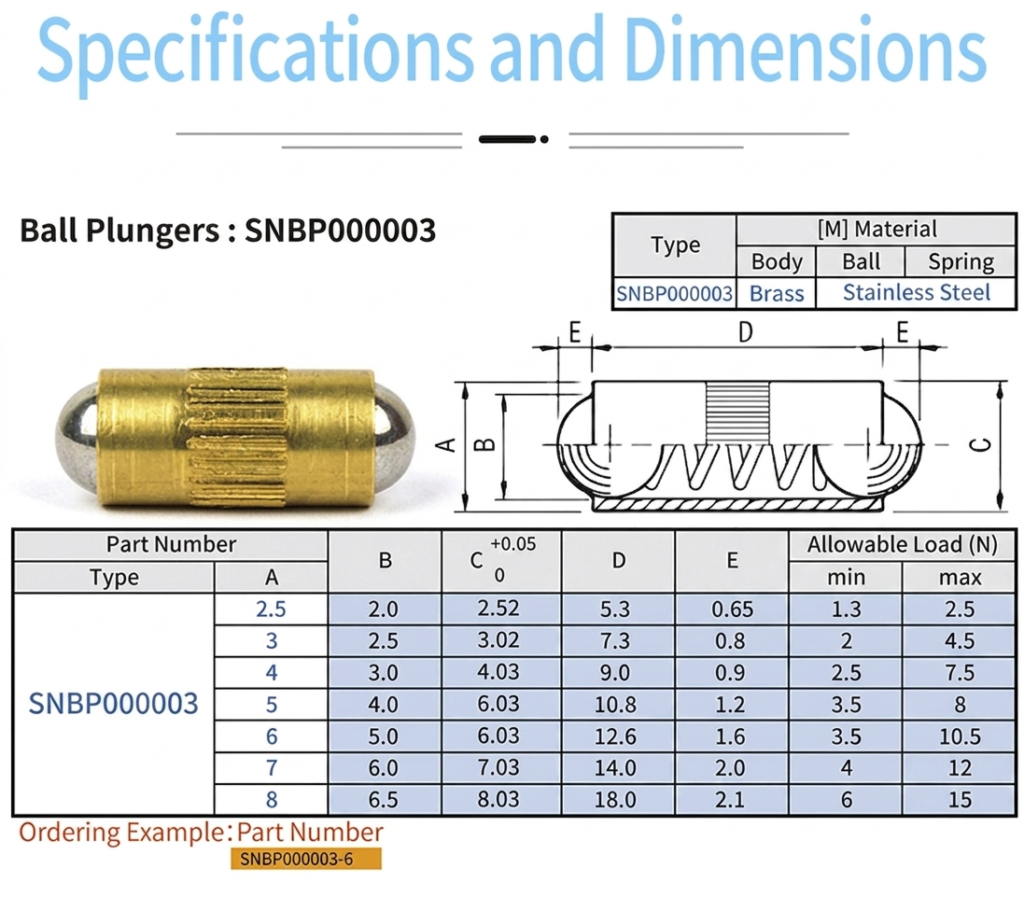

Dimensional Range: 2.5mm to 8.0mm outer diameters available
Allowable Force Range: 1.3 Newtons (min) to 15.0 Newtons (max)
Working Temperature: Outstanding performance in both ambient and elevated industrial environments
What value-added services does Sinoboltco provide?
We offer a comprehensive suite of industrial solutions, including OEM/ODM custom manufacturing, free prototyping for bulk projects, and 1-on-1 engineering consultancy. Additionally, we act as a strategic sourcing partner in China for clients requiring specialized hardware procurement and quality inspection.
How do I place an order or get a quote?
Browse our product catalog and note the specific requirements (diameter, grip length, and material). You can click the “Inquiry” button or email us directly with your technical drawings. Our technical representative will provide a detailed quote and lead-time assessment within 24 hours.
What is the Minimum Order Quantity (MOQ)?
For standard components in stock, we support your prototyping needs with an MOQ of just 1 piece. For custom-engineered or non-standard parts, the MOQ typically starts at 100 pieces, depending on the manufacturing complexity.
What are the typical shipping times and manufacturing lead times?
Production: Regular orders are processed within 5-7 working days, while bulk industrial orders take 10-15 days.
Shipping: We offer Express Delivery (5-7 days) for urgent requirements and Sea Freight (20-35 days) for cost-effective bulk shipments.
Can I inspect the facility or meet the team?
Absolutely. We value transparency. You are welcome to visit our office in Shanghai. For international clients, we offer live video inspections and virtual tours to verify production standards and quality control processes.
PROFESSIONAL PRECISION MANUFACTURING SOLUTIONS
GLOBAL PARTNER BENEFITS
Expert Professional Service
Global Supply Chain
SGS/ISO Certified QC
CAD/OEM Support
Reliable Inventory
Fast Global Delivery
SINOBOLTCO: YOUR RELIABLE SOURCING PARTNER
As a dedicated sourcing specialist, Sinoboltco bridges the gap between premium Chinese manufacturing and global quality standards. We provide personalized service, rigorous quality supervision, and flexible supply chain solutions tailored to your specific project needs. We don’t just supply parts; we manage your peace of mind.
| SERVICE ITEM | WHAT WE DELIVER |
|---|---|
| Custom Sourcing | Finding the perfect match for your unique technical drawings. |
| Quality Supervision | On-site inspection and material certification for every order. |
| Flexible MOQ | Supporting both prototyping and mass production scales. |
| Risk Management | Secure payment, reliable lead times, and transparent updates. |
| Technical Support | Expert advice on material selection and surface treatments. |
Exceptional Craftsmanship &detail
Advanced Processing
High-precision CNC machining and strict tolerance control ensure that every component meets your exact engineering requirements.
Reliable Durability
Professional surface treatments provide superior corrosion resistance and enhanced durability for long-term outdoor performance.
Supply Chain & Quality Control
Check: Integrated Supply Network (Top-tier Partner Factories)
Check: Verified Material Purity (Full Traceability)
Check: Strict QC Standards (Advanced Inspection Equipment)
- Check: Consolidated Shipping Solutions (Save on Logistics Costs)
LARGE STOCK & FAST GLOBAL DELIVERY
Port Proximity:Shanghai. Streamlined export processes for rapid global shipping.
