High Precision Hardened Taper Locating Dowel Pins SNDP000003 | SUJ2 & Stainless Steel Alignment Pins — sinoboltco
$0.06

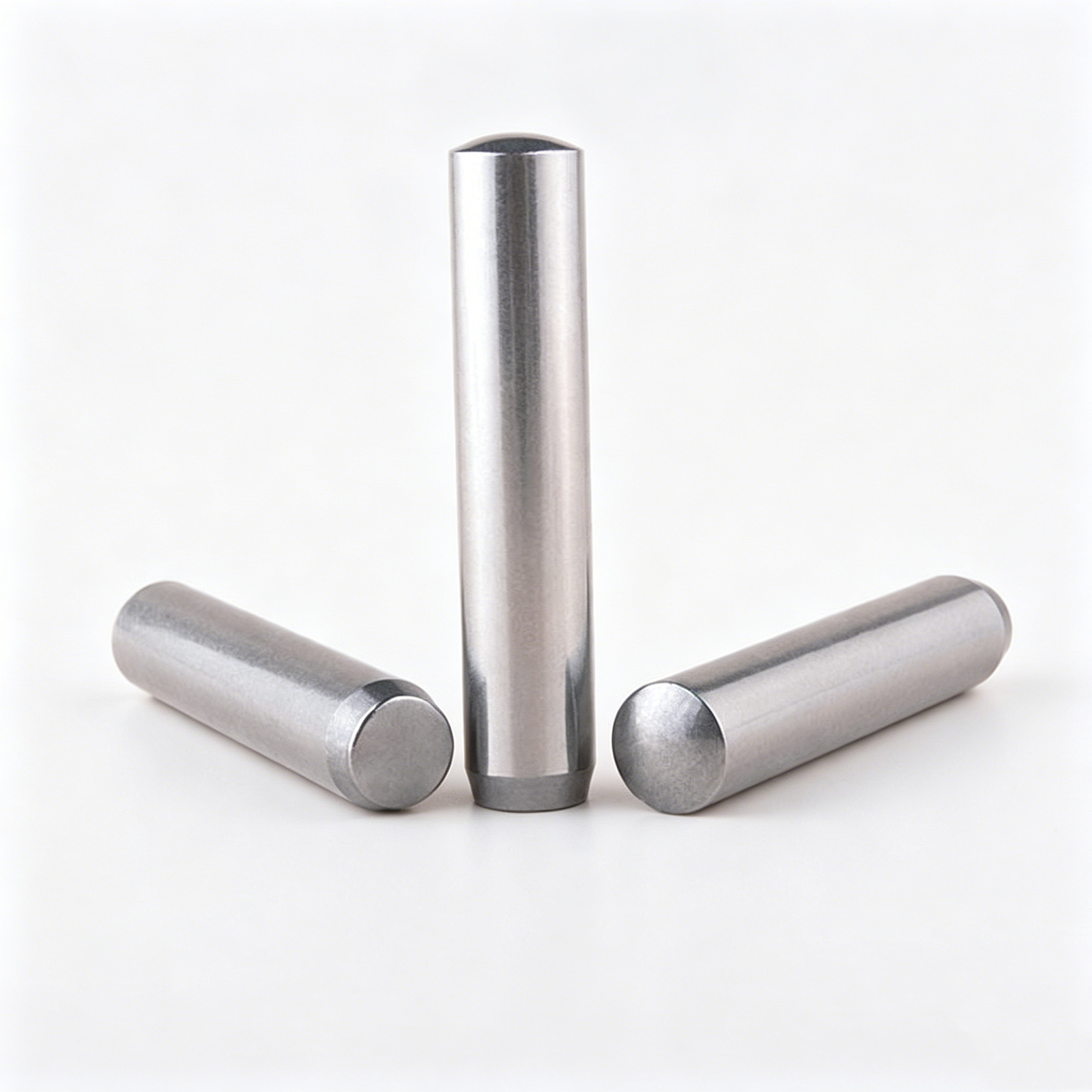

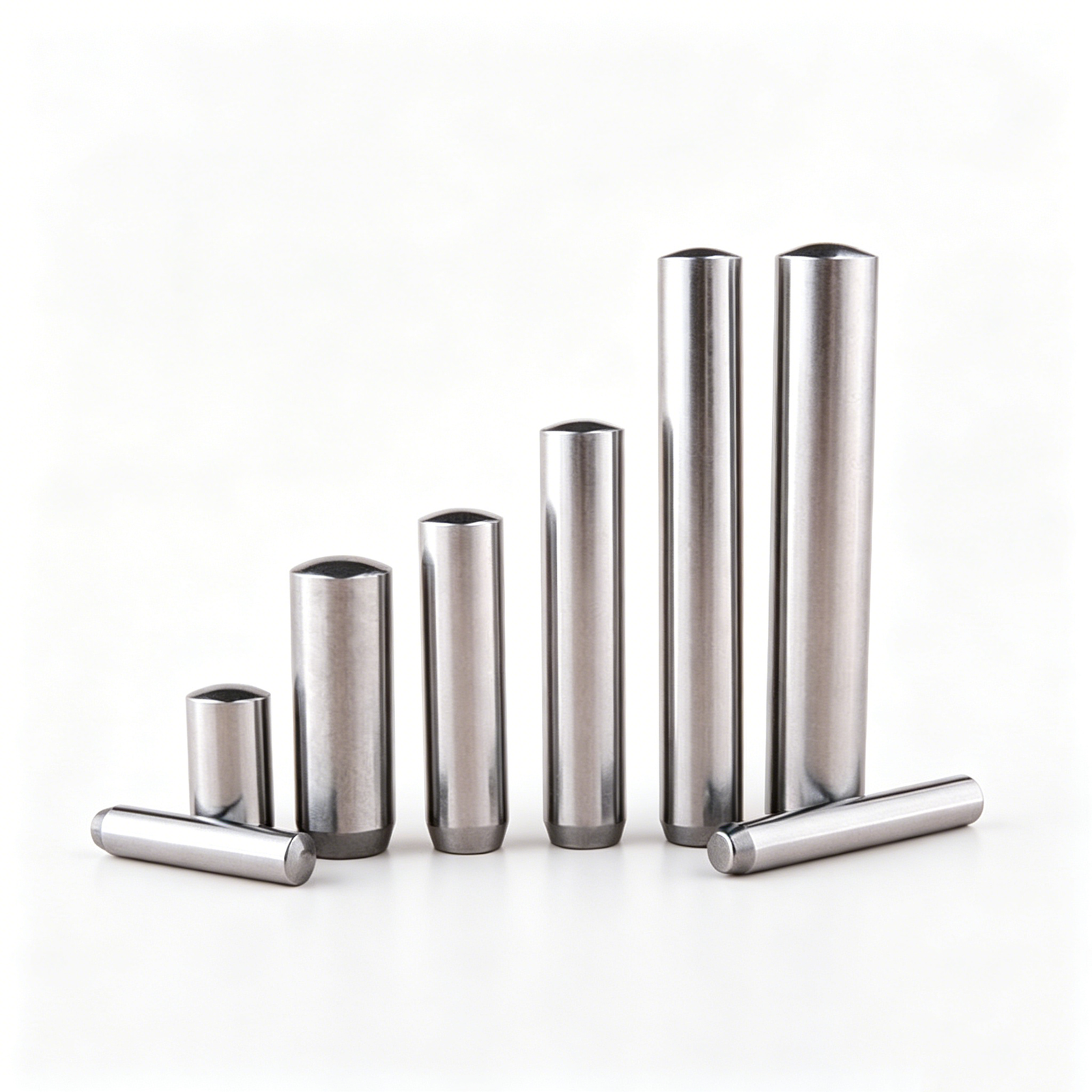

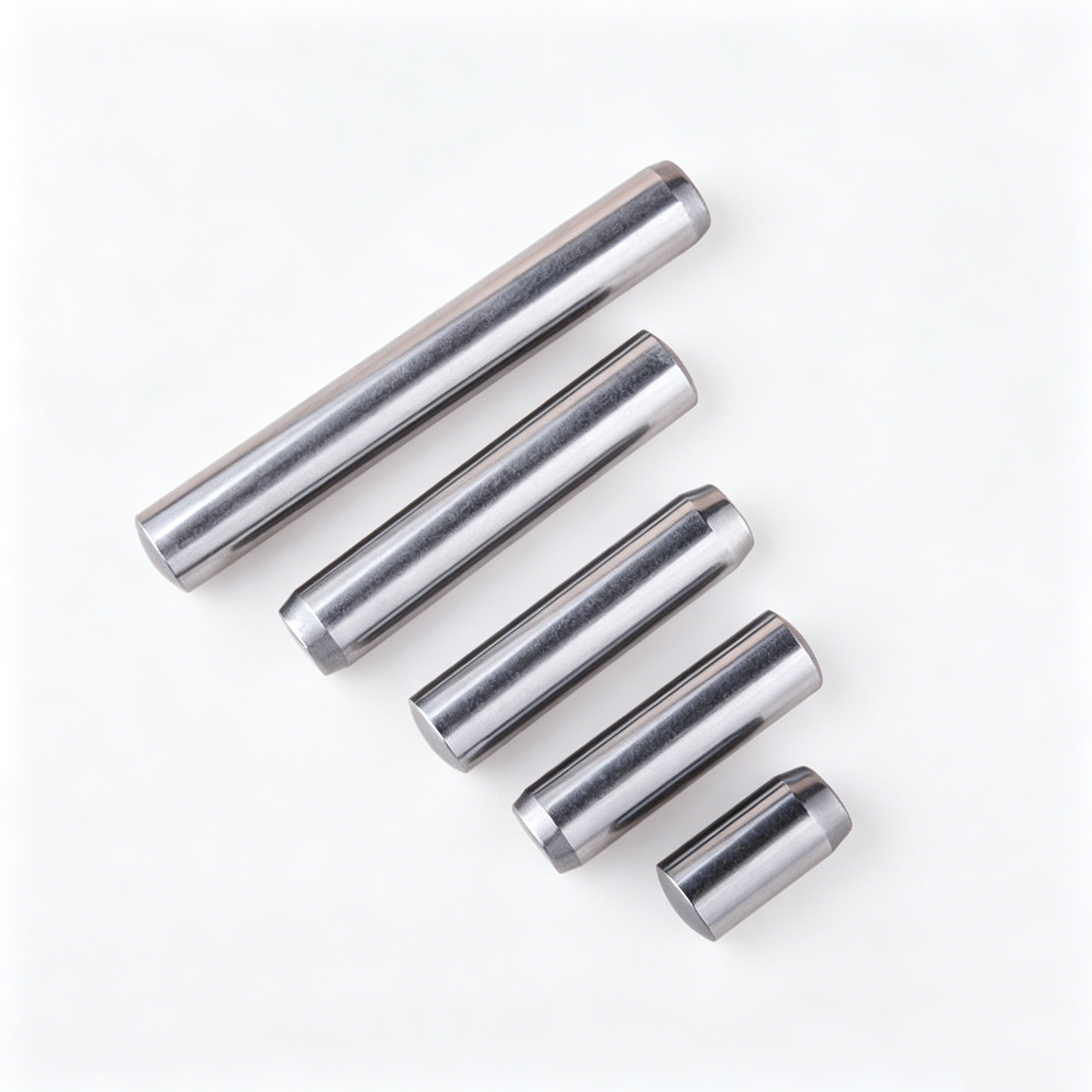

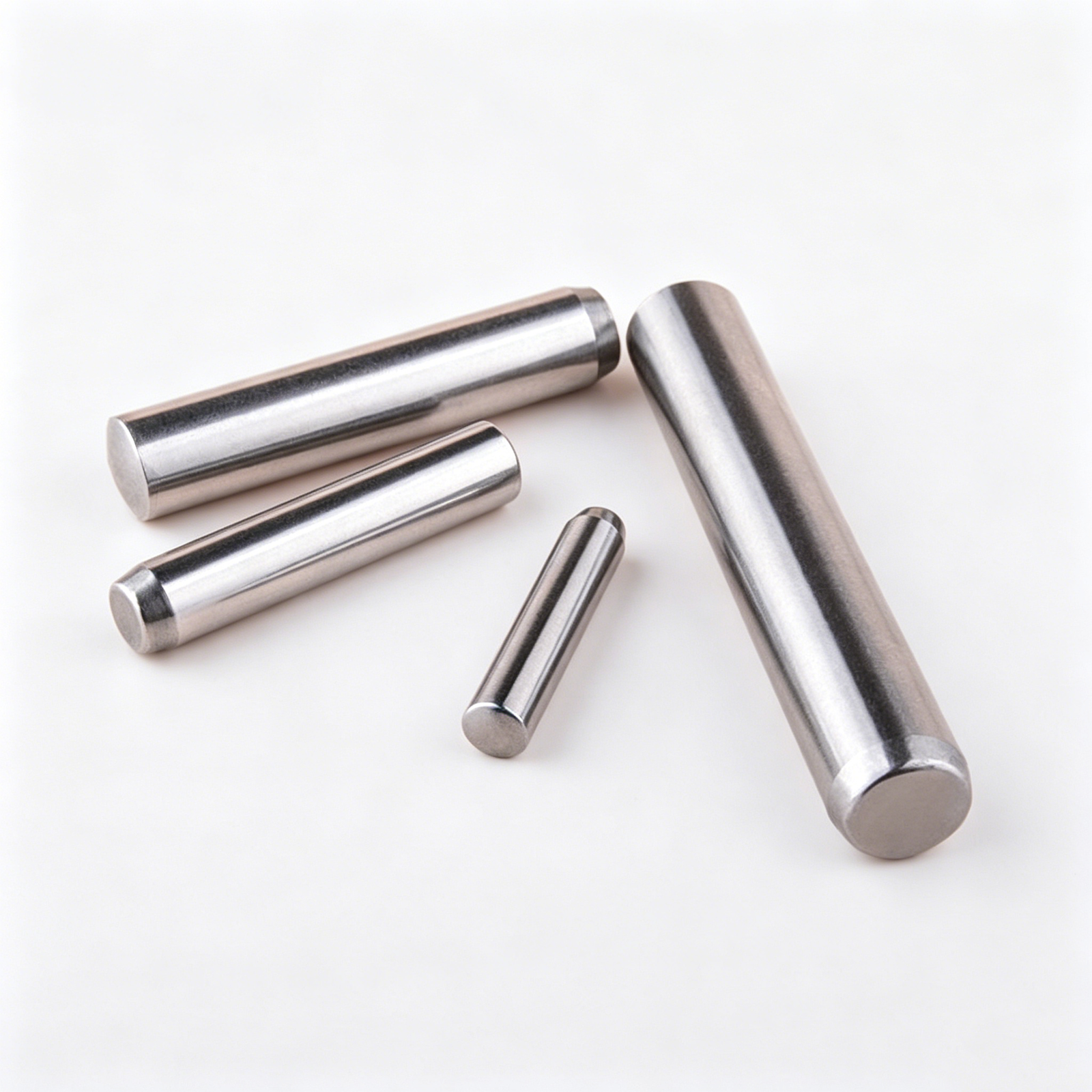

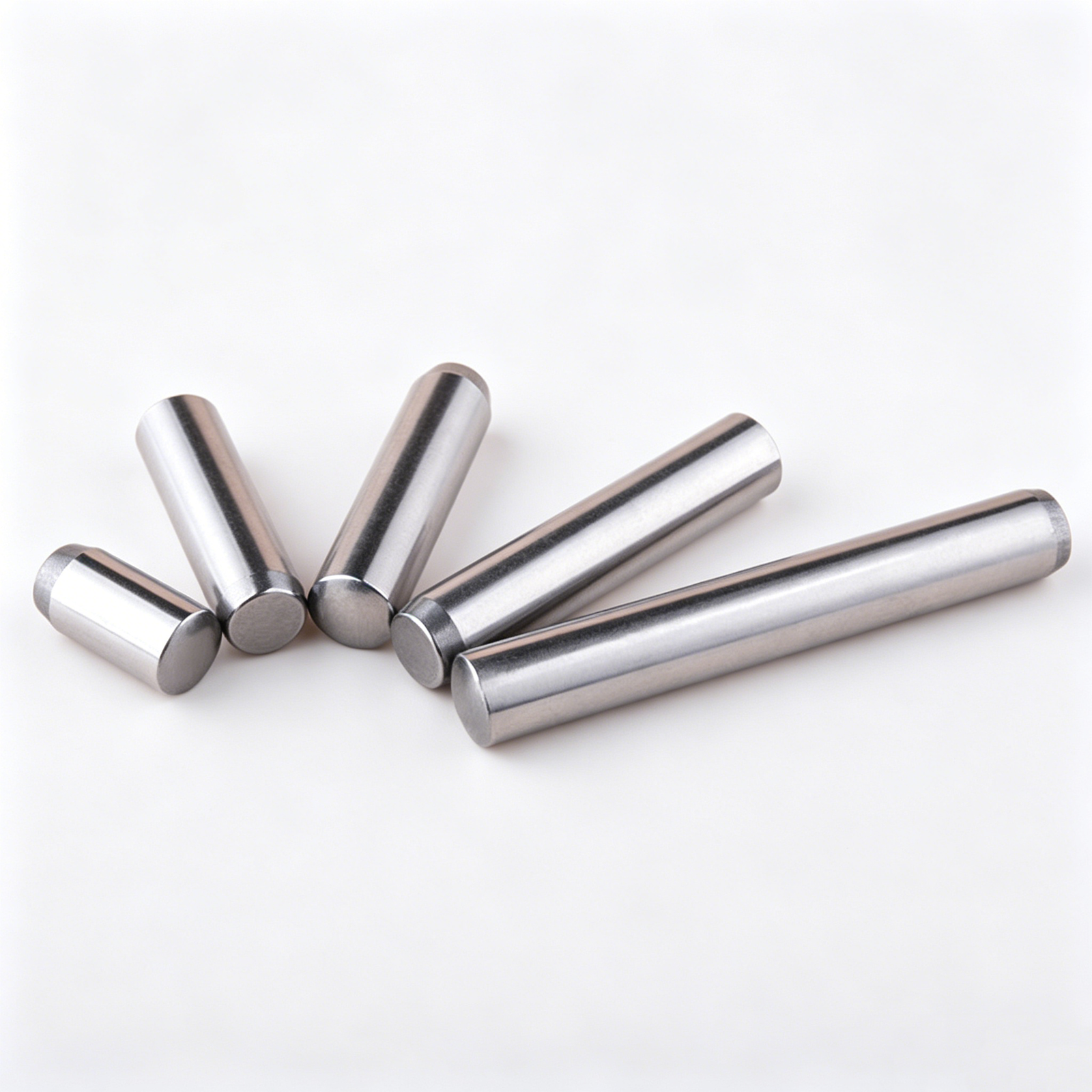

sinoboltco SNDP000003 series taper dowel pins are high-precision industrial positioning components engineered for rigid component alignment, precision die-set staging, and automated fixture assembly. Available in hardened SUJ2 bearing steel and premium stainless steel, this series features a standard diameter matrix spanning $1\text{ mm}$ to $13\text{ mm}$ to eliminate structural play in high-cycle production environments.
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Key attributes | |||
|---|---|---|---|
| type | Dowel Pin | material | SUJ2 |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | sndp000003 |
| Product name | Dowel Pin | Head Diameter | 1/1.5/2/2.5/3/4/5/6/10/11/12 |
| Pin Length | 6-80mm/custom | Keyword | Dowel Pin |
| Service | OEM/ODM | Aftersales | 1 on 1 Customer Service |
| MOQ | 1 PCS | Custom MOQ | 100 PCS |
| Application | conveyer / transportation |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.005 kg |
| Delivery Time | |||
|---|---|---|---|
| Quantity | 1 – 1000 | 1001 – 5000 | > 5000 |
| Eastern Time (days) | 5 | 15 | To be determined |
The sinoboltco SNDP000003 series represents our core standard for precision taper locating dowel pins, meticulously engineered to optimize mechanical alignment repeatability. By executing a strict tolerance profile of +0.010 mm to +0.005 mm depending on nominal diameter sizing, these locating pins drastically reduce cumulative assembly clearance deviations.
Material Engineering and Hardness Properties: To satisfy distinct industrial environments, the SNDP000003 series is dual-channeled by material composition:
SUJ2 Bearing Steel Grade: Undergoes specialized atmospheric heat treatment to achieve a surface and core hardness of 58HRC. This configuration delivers maximum shear resistance and severe wear-performance under heavy cyclic loads, typical in progressive stamping dies and heavy automotive assembly fixtures.
Stainless Steel Grade: Specifically designated for corrosion resistance in chemically exposed, high-humidity, or wash-down environments. It effectively prevents mechanical seizing and oxidation inside precision mating holes, making it the ideal baseline for medical instrumentation, packaging machinery, and outdoor automation arrays.

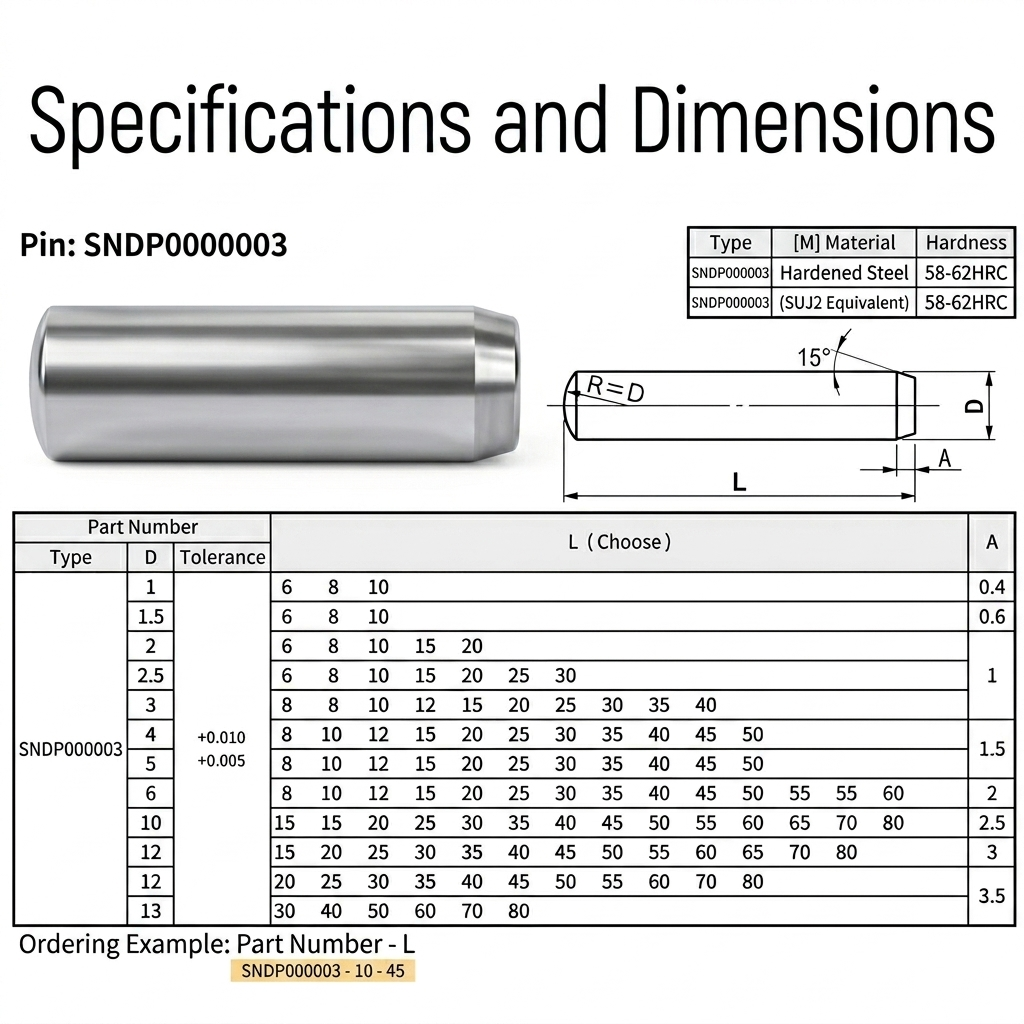

Advanced Geometry and Lead-In Ergonomics: As illustrated in our technical specification sheet sinoboltco.jpg, each pin integrates a 15 degree entry chamfer paired with a masterfully machined rounded guide tip (R matches D). This exact geometric configuration ensures effortless, scratch-free press-fit insertion into precision holes, completely eliminating the component cracking or bore scoring risks common with crude, flat-edged pins. The chamfer height dimension (A) scales directly with the pin’s nominal diameter – ranging from 0.4 mm on micro-pins up to 3.5 mm on heavy-duty profiles – ensuring uniform stress distribution during initial entry.
TECHNICAL DIMENSION MATRIX (TAB-SEPARATED TEXT)
| Part Number (Type) | Diameter (D) | Tolerance (mm) | Available Length options (L) (mm) | Chamfer Height (A) (mm) |
SNDP000003 (SUJ2/Stainless) | 1 | +0.010 / +0.005 | 6, 8, 10 | 0.4 |
| SNDP000003 (SUJ2/Stainless) | 1.5 | +0.010 / +0.005 | 6, 8, 10 | 0.6 |
| SNDP000003 (SUJ2/Stainless) | 2 | +0.010 / +0.005 | 6, 8, 10, 15, 20 | 0.6 |
| SNDP000003 (SUJ2/Stainless) | 2.5 | +0.010 / +0.005 | 6, 8, 10, 15, 20, 25, 30 | 1 |
| SNDP000003 (SUJ2/Stainless) | 3 | +0.010 / +0.005 | 6, 8, 10, 12, 15, 20, 25, 30, 35, 40 | 1 |
| SNDP000003 (SUJ2/Stainless) | 4 | +0.010 / +0.005 | 8, 10, 12, 15, 20, 25, 30, 35, 40, 45, 50 | 1.5 |
| SNDP000003 (SUJ2/Stainless) | 5 | +0.010 / +0.005 | 8, 10, 12, 15, 20, 25, 30, 35, 40, 45, 50 | 1.5 |
| SNDP000003 (SUJ2/Stainless) | 6 | +0.010 / +0.005 | 8, 10, 12, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 | 2 |
| SNDP000003 (SUJ2/Stainless) | 8 | +0.010 / +0.005 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80 | 2.5 |
| SNDP000003 (SUJ2/Stainless) | 10 | +0.010 / +0.005 | 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80 | 3 |
| SNDP000003 (SUJ2/Stainless) | 12 | +0.010 / +0.005 | 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80 | 3.5 |
| SNDP000003 (SUJ2/Stainless) | 13 | +0.010 / +0.005 | 30, 40, 50, 60, 70, 80 | 3.5 |
Ordering Format Example: Part Number – Diameter D – Length L SNDP000003-10-45 (SUJ2 or Stainless Steel details specified in quote)
B2B COMMERCIAL VALUE PROPOSITIONS
Precision Engineering Control: Dimensional tolerances locked between +0.010 mm and +0.005 mm across the entire distribution curve, preventing mechanical drift in high-speed automated machinery.
Metallurgical Adaptability: Sourced in dual-grade options – hardened 58HRC SUJ2 for structural durability under intense friction, and premium stainless steel for complete oxidation protection.
Optimized Assembly Workflows: Integrated 15 degree lead-in chamfer with a rounded tip (R matches D) drastically lowers setup cycle times and eliminates bore scoring during press-fit operations.
Custom Manufacturing: Supported by our independent machining workshop to fulfill non-standard length configurations, custom tolerances, specific end-geometries, and specialized surface plating options.
What value-added services does Sinoboltco provide?
We offer a comprehensive suite of industrial solutions, including OEM/ODM custom manufacturing, free prototyping for bulk projects, and 1-on-1 engineering consultancy. Additionally, we act as a strategic sourcing partner in China for clients requiring specialized hardware procurement and quality inspection.
How do I place an order or get a quote?
Browse our product catalog and note the specific requirements (diameter, grip length, and material). You can click the “Inquiry” button or email us directly with your technical drawings. Our technical representative will provide a detailed quote and lead-time assessment within 24 hours.
What is the Minimum Order Quantity (MOQ)?
For standard components in stock, we support your prototyping needs with an MOQ of just 1 piece. For custom-engineered or non-standard parts, the MOQ typically starts at 100 pieces, depending on the manufacturing complexity.
What are the typical shipping times and manufacturing lead times?
Production: Regular orders are processed within 5-7 working days, while bulk industrial orders take 10-15 days.
Shipping: We offer Express Delivery (5-7 days) for urgent requirements and Sea Freight (20-35 days) for cost-effective bulk shipments.
Can I inspect the facility or meet the team?
Absolutely. We value transparency. You are welcome to visit our office in Shanghai. For international clients, we offer live video inspections and virtual tours to verify production standards and quality control processes.
