Introduction: Balancing Standardization and Customization
In complex mechanical assemblies, a “one size fits all” approach rarely works. Drawing on years of precision hardware manufacturing experience, Sinoboltco has engineered the SNBLP series of ball lock pins to bridge the gap between standard hardware and bespoke engineering. This article uses the SNBLP000005 model as a reference point to walk through the logic behind proper pin selection.
1. Construction and Material
The SNBLP000005 is built entirely from stainless steel — the pin body, internal spring, locking balls, pull-ring handle, and locking ring are all made from corrosion-resistant stainless steel. This gives the pin excellent long-term durability and makes it well suited to humid, outdoor, or hygiene-sensitive industrial environments.

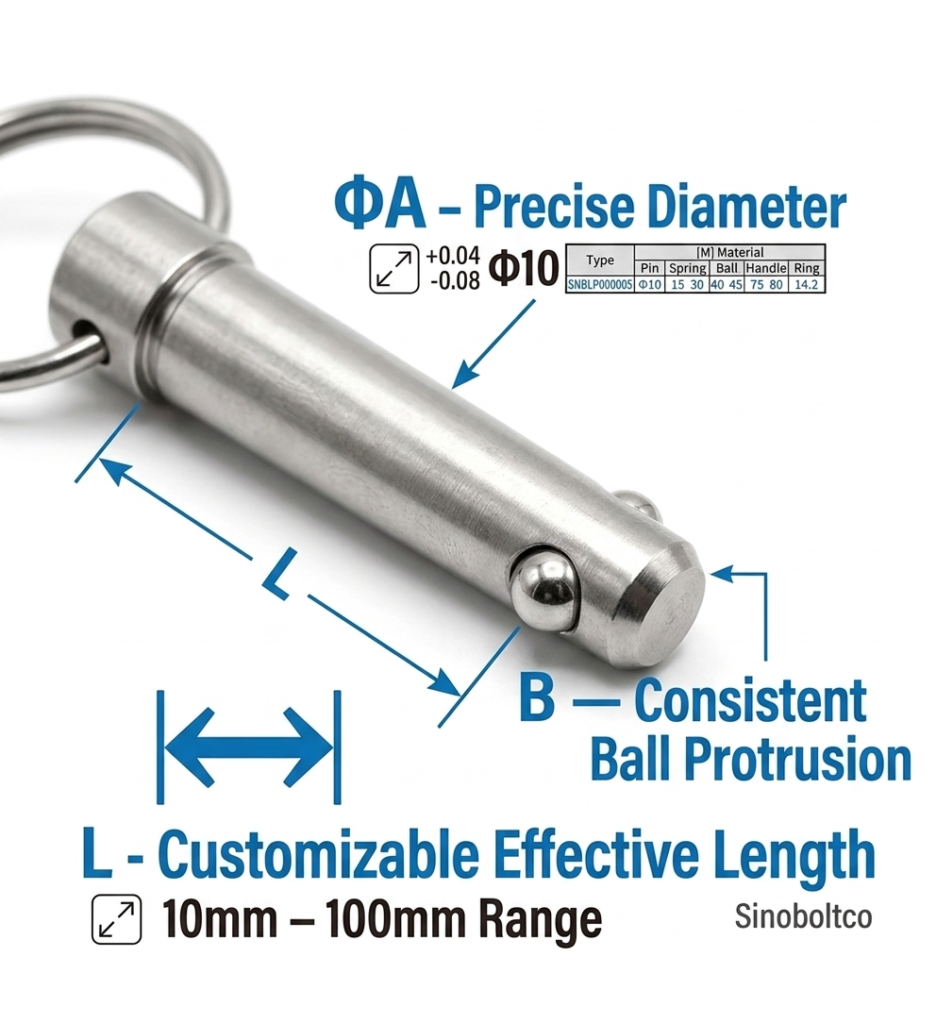

2. Understanding the Key Dimensions
A ball lock pin’s performance depends not just on material, but on the precise geometry of several interrelated dimensions:
- ΦA (Pin Diameter) — the foundation for hole-fit matching, held to a tolerance of -0.04 to -0.08mm so the pin inserts smoothly without becoming loose over time.
- L (Effective Length) — the distance from the pin’s underside to where the locking balls engage. This is often the most overlooked yet most critical dimension in selection.
- B (Ball Protrusion) — how far the locking balls extend beyond the pin body, which directly affects locking force and shear resistance.
- C (Locking Zone Length) — the effective engagement range of the locking balls within the panel or bracket.
- E (Handle-End Diameter) and F (Ring Length) — these affect ease of operation, especially in tight spaces or applications requiring quick one-handed use.
- H (Neck Transition Length) — affects guide precision when inserting the pin into its mating hole.
Quick Reference Specs (Partial)
| A Diameter | B | C | E | F | H |
|---|---|---|---|---|---|
| 5 | 5.8 | 8.4 | 8 | 24 | 8.4 |
| 8 | 10 | 8.5 | 11 | 24 | 13 |
| 12 | 15 | 12 | 15 | 30 | 14.2 |
| 20 | 25 | 19 | 22 | 45 | 14.2 |
| 25 | 31 | 25 | 28.8 | 45 | 14.2 |
Notice that as diameter A increases, the related dimensions B, C, and E scale up proportionally to maintain consistent mechanical performance. This is precisely why a customer can’t simply “change the diameter and keep everything else the same” when customizing a pin — the entire dimensional chain needs to be matched.
3. The Importance of Effective Length (In Depth)
Effective length (L) determines whether a ball lock pin achieves a truly “zero-play” fit in your assembly. The SNBLP series supports custom lengths anywhere within the 10mm–100mm range, with standard available lengths including:
10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 55 / 60 / 65 / 70 / 75 / 80 / 85 / 90 / 95 / 100mm
All lengths are held to a +0.5/0 tolerance, ensuring reliable insertion feel and secure locking engagement even at the longer end of the range.
Three Reasons Precision Sizing Matters:
- Eliminating Axial Play — a pin that’s too long will rattle within the hole, accelerating wear; one that’s too short may fail to fully engage the locking balls, creating a risk of disengagement.
- Full Application Coverage — from short 10–20mm pins for electronics racking to long 80–100mm pins for scaffolding and heavy structural connections, one product family covers the full range of use cases.
- Consistent Shear Strength — regardless of length, every Sinoboltco pin is manufactured to the same material and heat-treatment standards, so shear performance stays consistent across the entire size range.
4. Ordering Guide
The SNBLP naming convention follows a simple structure: Type – Diameter A – Length L. For example:
This denotes a stainless steel ball lock pin with a 10mm diameter (A) and 55mm length (L). Customers only need to determine these two core parameters based on their hole diameter and effective material thickness, and the Sinoboltco engineering team will handle the precision match.
Conclusion
A ball lock pin may look like a simple quick-release fastener, but its reliability in real-world use comes down to careful dimensional chain design, material consistency, and tight tolerance control. With the standardized SNBLP000005 platform and flexible 10–100mm custom length range, Sinoboltco helps customers find the optimal balance between efficiency and precision.
If you have specific assembly drawings or hole-diameter requirements, feel free to reach out to the Sinoboltco engineering team — we’re happy to provide free sizing recommendations.
