In the world of precision engineering, the smallest components often play the most critical roles. Indexing plungers (also known as locating pins) are vital for locking parts into place repeatedly and accurately. At Sinoboltco, we understand that reliability is non-negotiable — that’s why the SNIP000001 series is built with tightly controlled tolerances and a full range of material and tip options to match nearly any automation task.
Why Precision Matters
When designing a modular jig or an adjustable workstation, the “play” or wobble in your positioning pin can lead to catastrophic misalignments. The SNIP series is engineered with tight tolerances to ensure that once the plunger is engaged, your workpiece stays exactly where it belongs.
Choosing the Right Material: SNIP000001-BK vs. SNIP000001-BNK
Before sizing a plunger, decide on the material configuration, since this affects both durability and environment suitability:
- SNIP000001-BK: Aluminum knob with a carbon steel body, pin, and lock nut, paired with a stainless steel spring. A cost-effective choice for indoor, general-purpose fixtures.
- SNIP000001-BNK: Aluminum knob with a stainless steel body, pin, and lock nut, and the same stainless steel spring. Recommended for washdown areas, humid environments, or anywhere corrosion resistance matters.
Both configurations use metric threads throughout the size range.
Choosing the Right Tip Shape
The SNIP series offers three engagement shapes, each suited to different locating needs:
- Spherical: Smooth, rounded engagement — good for general-purpose indexing where slight misalignment needs to be self-correcting.
- Tapered: A angled tip that centers into a matching tapered hole for higher-precision, repeatable positioning.
- Flat: A flat-bottom tip for applications that need to lock against a flat seat rather than a machined pocket.
Match the tip shape to your receiving hole geometry before finalizing your part number.
How to Choose the Right Size (M5 to M16L)
The SNIP000001 series is available in nine size variants: M5, M6, M8, M8L, M10L, M12, M12L, M16, and M16L. Selecting the correct size depends on load-bearing requirements, thread engagement, and available installation length:
- M5–M6: Suited to lightweight electronics enclosures, small laboratory equipment, and compact fixtures where space is at a premium.
- M8–M8L: A step up in body diameter and thread length, useful where slightly more holding force is needed without moving to a heavier hole pattern.
- M10L–M12L: The workhorses of the series, commonly used in conveyor belt fixtures and automotive assembly jigs. The “L” designation indicates the longer-length variant, giving extra reach for thicker mounting plates.
- M16–M16L: The largest sizes in the series, intended for heavy-duty applications requiring maximum shear strength and thread engagement; the M16L variant offers additional length for deeper mounting.
Always confirm the B, S, D, D1, L, and SW1/SW2 dimensions against your fixture’s hole and wrench-clearance requirements before ordering — these vary meaningfully across the size range.
Installation Best Practices
To get the most out of your Sinoboltco components, ensure the receiving hole is chamfered. This allows the SNIP plunger to glide into position without unnecessary wear on the tip. Regular lubrication of the spring housing will also extend the service life in high-cycle environments.

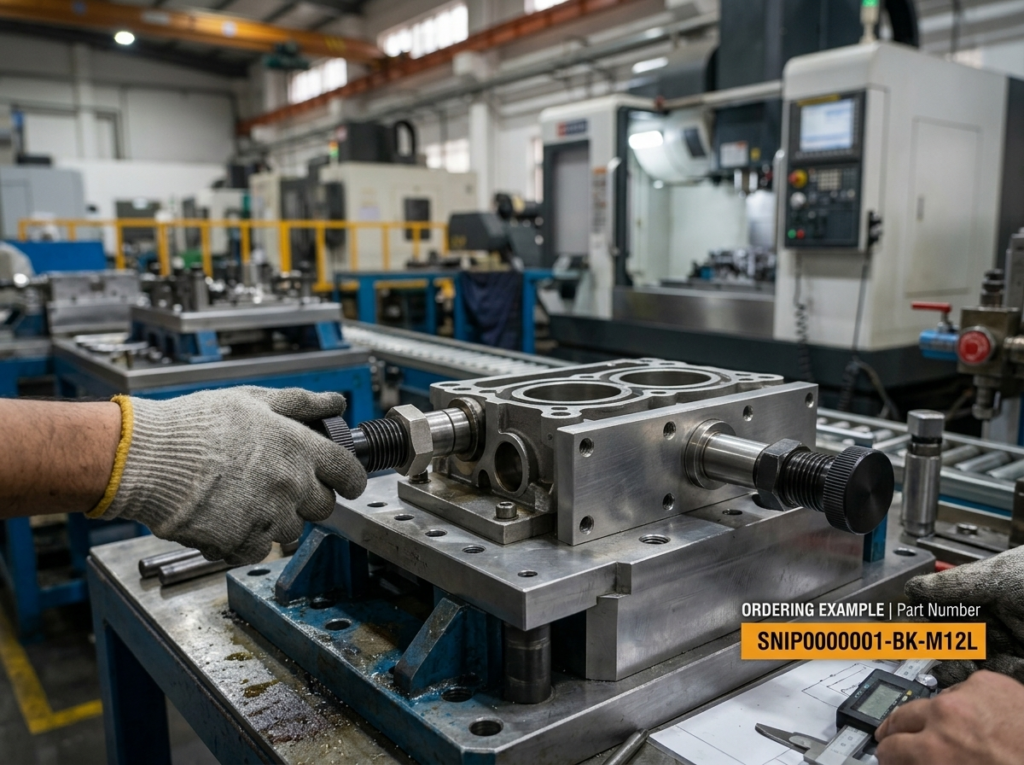

Ordering Example
Part numbers are built from the return-type material code, the base part number, and the size:
This denotes the carbon-steel-body version (BK), size M12L.
Conclusion
Upgrading to the SNIP series means investing in the longevity of your machinery — and choosing the right material, tip shape, and size up front saves rework later. Visit sinoboltco.com today to download CAD files and technical specs for your next project.
