Threaded Ball Lock Pin snblp0000104 | Hand Knurled Knob Quick Release Locating Pin by sinoboltco
$2.60
The sinoboltco snblp0000104 threaded ball lock pin is a hand-operated quick release locating pin designed for rapid tooling adjustments. Featuring a knurled large hand knob (G=19mm), it allows instant manual operation without tools. Available in carbon steel with a black oxide finish or corrosion-resistant stainless steel, it provides dependable locking and positioning across M5 and M8 mounting configurations.
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Key attributes | |||
|---|---|---|---|
| type | Ball Lock Pin | material | Carbon steel |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | SNBLP0000104 |
| Product name | Ball Lock Pin | Lock Clamps | 30-55 |
| Service | OEM/ODM | Keyword | Quick Release Pin |
| MOQ | 1 PCS | Aftersales | 1 on 1 Customer Service |
| Application | conveyer / transportation | Custom MOQ | 100 PCS |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.050 kg |
| Delivery Time | ||
|---|---|---|
| Quantity | 1 – 5000 | > 5000 |
| Eastern Time (days) | 15 | To be determined |
Engineered for efficient manual positioning, the sinoboltco snblp0000104 threaded ball lock pin offers a practical solution for industrial jigs, fixtures, and automation equipment. The integrated knurled hand knob (19mm diameter) gives operators a firm grip even when wearing work gloves, enabling tool-free installation and removal.
The pin features a threaded shank (M) available in M5 and M8 thread sizes, allowing secure installation directly into tapped holes on machine bases. Inside, a spring-loaded ball mechanism controls the lock function: inserting the pin engages the retaining ball (diameter F=4mm for M5, F=5mm for M8) to securely hold components in place. Pulling back the hand knob retracts the ball into the shank for effortless withdrawal.
To accommodate different working environments, sinoboltco manufactures two material grades:
Carbon Steel (ST): Treated with a black oxide finish for high wear resistance and basic corrosion protection in standard workshop environments.
Stainless Steel (SS): Uncoated stainless steel designed for humid, outdoor, or cleanroom environments where rust prevention is critical.
Dimensional configurations range from short-reach M5 units (C=30mm shaft length, B=38mm overall length) to extended M8 versions (C=55mm shaft length, B=63mm overall length). Every snblp0000104 ball lock pin undergoes dimensional tolerance testing to ensure drop-in compatibility and repeatable locking performance.
Primary Applications: Welding fixtures, assembly jigs, mold change systems, inspection gauges, checking fixtures, and modular quick-change tooling setups.
Product Advantages
Tool-Free Operation: 19mm knurled hand knob allows single-handed lock and release, reducing machine changeover times.
Dual Material Selection: Carbon steel with black oxide for heavy-duty industrial use; stainless steel for high-humidity or hygienic processing lines.
Threaded Body Alignment: Threaded shaft (M5/M8) allows secure, vibration-resistant anchoring into tapped fixture plates.
Spring-Ball Retention: Internal spring mechanism maintains consistent retention force across thousands of cycles.
Standardized Dimensions: Precise shaft lengths (C=30mm, 34mm, 55mm) and total lengths (B=38mm, 43mm, 63mm) ensure drop-in replacement for existing setups.
Flexible Ordering: Fast shipping on standard sizes, with custom shaft lengths available upon request through sinoboltco.
Product Features

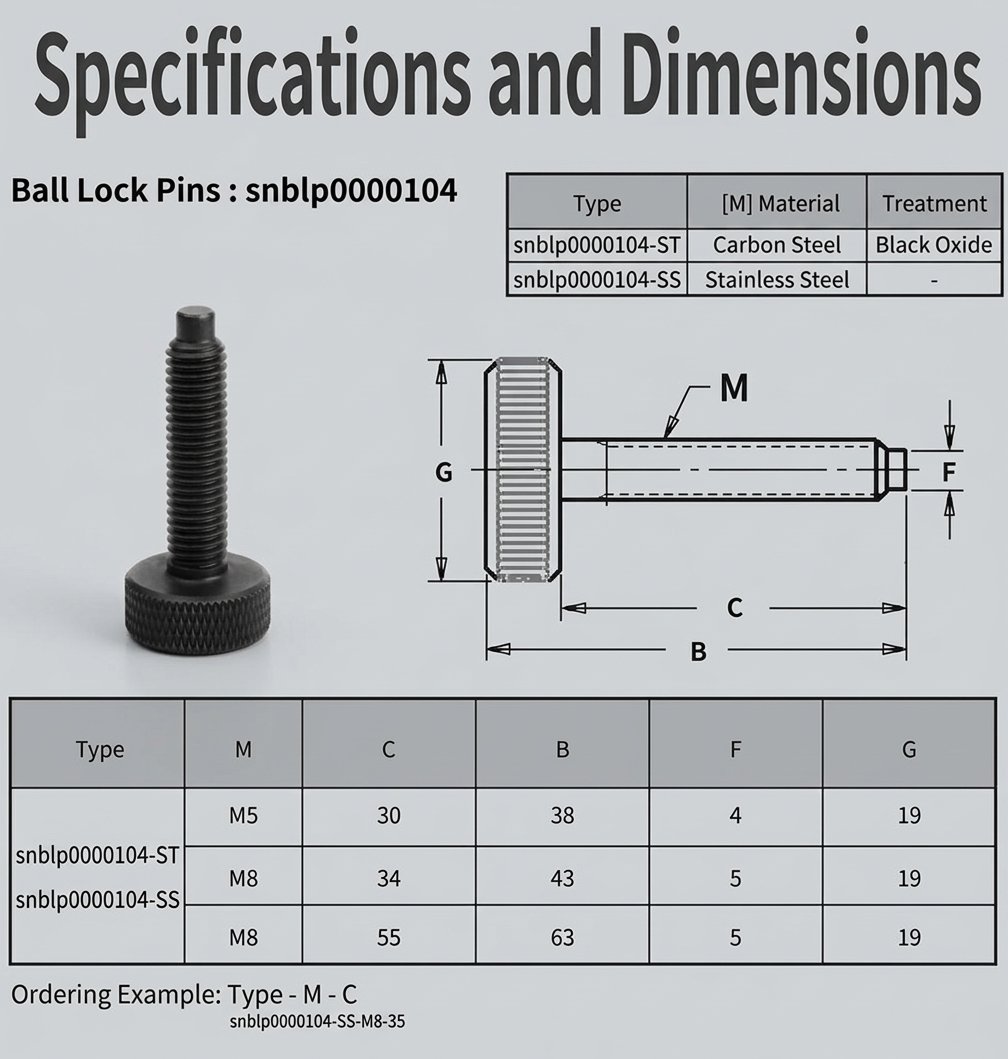

Model: snblp0000104 (Threaded Ball Lock Pin)
Knob Diameter (G): 19 mm knurled grip
Thread Sizes (M): M5 x 0.8, M8 x 1.25
Shaft Lengths (C): 30 mm, 34 mm, 55 mm
Overall Lengths (B): 38 mm, 43 mm, 63 mm
Ball Diameters (F): 4 mm (M5), 5 mm (M8)
Materials: Carbon Steel (Black Oxide) / Stainless Steel
Operation: Manual pull-knob actuation with internal spring return
