Precision Ball Lock Liner Bushing Carbon Steel snblp0000101 by sinoboltco
$2.90
sinoboltco snblp0000101 precision carbon steel ball lock liner bushings are designed for fixture sub-plate positioning. Available in multiple ID and thickness options, these hardened liners feature tight tolerances to ensure repeat-accuracy for quick-change workholding systems. Custom dimensions available.
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Key attributes | |||
|---|---|---|---|
| type | Ball Lock Pin | material | Carbon steel |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | SNBLP0000101 |
| Product name | Ball Lock Pin | Lock Clamps | 13-50 |
| Service | OEM/ODM | Keyword | Quick Release Pin |
| MOQ | 1 PCS | Aftersales | 1 on 1 Customer Service |
| Application | conveyer / transportation | Custom MOQ | 100 PCS |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.050 kg |
| Delivery Time | ||||
|---|---|---|---|---|
| Quantity | 1 – 100 | 101 – 500 | 501 – 5000 | >5000 |
| Eastern Time (days) | 3 | 5 | 10 | To be determined |
The snblp0000101 ball lock liner bushing from sinoboltco serves as a high-precision wear component engineered specifically for ball-lock quick-change fixture assemblies. Machined from high-grade carbon steel with a black-oxide finish, this liner bushing is installed into sub-plates to provide consistent positioning guidance while protecting expensive base plates from premature wear caused by frequent change-over cycles.

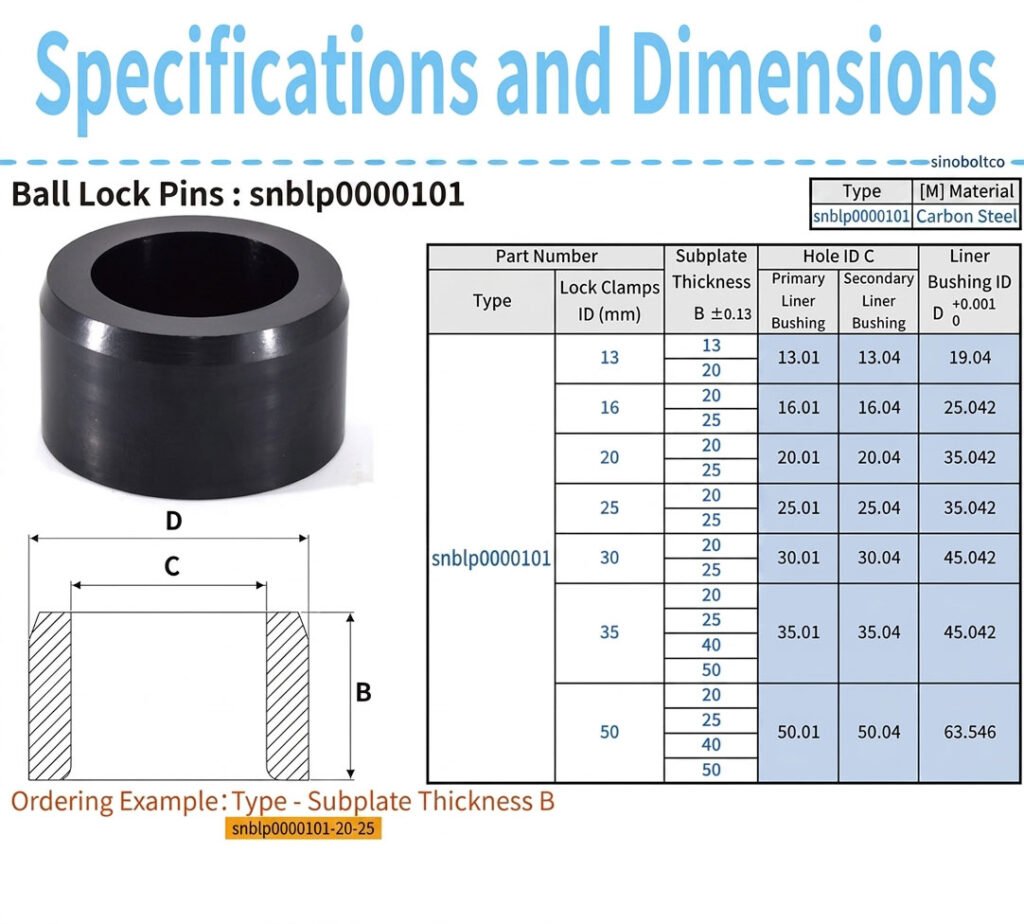

Each bushing is produced to strict inner-bore tolerances, offering primary and secondary liner ID options to accommodate specific positioning requirements. With comprehensive size selections covering lock-clamp IDs from 13mm to 50mm and sub-plate thicknesses up to 50mm, engineers can easily select exact parameters matching their fixture layouts directly from our technical specifications table.
Acting as the dedicated receiving sleeve for ball lock release pins, the snblp0000101 stabilizes pin engagement, eliminates mounting play, and maintains ultra-precise repeatability across CNC machining fixtures, welding jigs, inspection tooling, and automated systems.
In addition to standard stock sizes, sinoboltco offers complete custom-machining capabilities for non-standard outer diameters, inner bores, and plate thicknesses. Material certificates and traceability documents are provided for bulk industrial orders upon request.
Ordering Note: Specify the required lock clamp ID, primary/secondary liner ID, and sub-plate thickness (B +/- 0.13 mm) when submitting RFQs.
Product Advantages
Sub-Plate Protection: Hardened carbon steel liner absorbs operational friction, preventing costly, permanent hole deformation on expensive fixture sub-plates.
Controlled Precision Tolerances: Micro-range inner diameter tolerances maintain tight repeatability across thousands of rapid tooling swap cycles.
Extensive Standard Matrix: Fits sub-plate thicknesses from 13mm to 50mm and liner IDs up to 63.546mm to support diverse modular fixture designs.
Black Oxide Coating: Provides consistent surface protection against corrosion and wear in standard machine-shop environments.
Custom Machine Options: sinoboltco can manufacture custom outer diameters, custom heights, and non-standard bores tailored to proprietary drawings.
Traceable Material Quality: Industrial-grade carbon steel with batch material test certificates available for OEM specifications.
Key Features
Material: High-grade Carbon Steel
Finish: Black Oxide Corrosion-Resistant Treatment
Application: Pressed mounting into modular fixture sub-plates
Compatibility: Matches standard ball lock quick-release systems and positioning clamps
Tolerance Control: Precision-ground inner bore (+0.001 / 0) for zero-play pin alignment
Part Number: snblp0000101 | Manufactured by sinoboltco
Ideal For: CNC milling fixtures, automated welding jigs, CMM inspection plates, quick-change tooling
What value-added services does Sinoboltco provide?
We offer a comprehensive suite of industrial solutions, including OEM/ODM custom manufacturing, free prototyping for bulk projects, and 1-on-1 engineering consultancy. Additionally, we act as a strategic sourcing partner in China for clients requiring specialized hardware procurement and quality inspection.
