Push Button Ball Lock Pin, Stainless Steel Quick Release Locking Pin with Trumpet Handle (SNBLP Series snblp000014)
$3.90

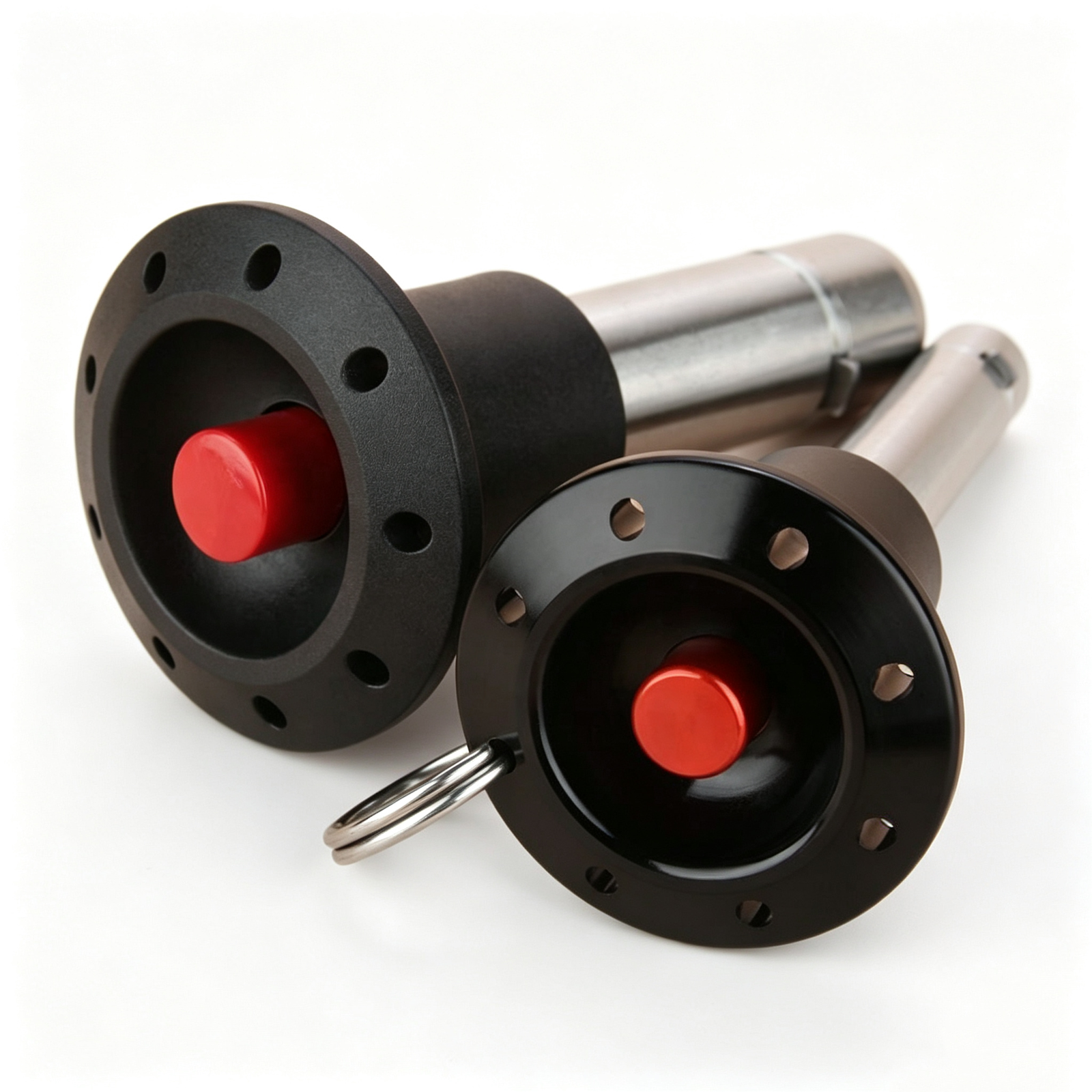

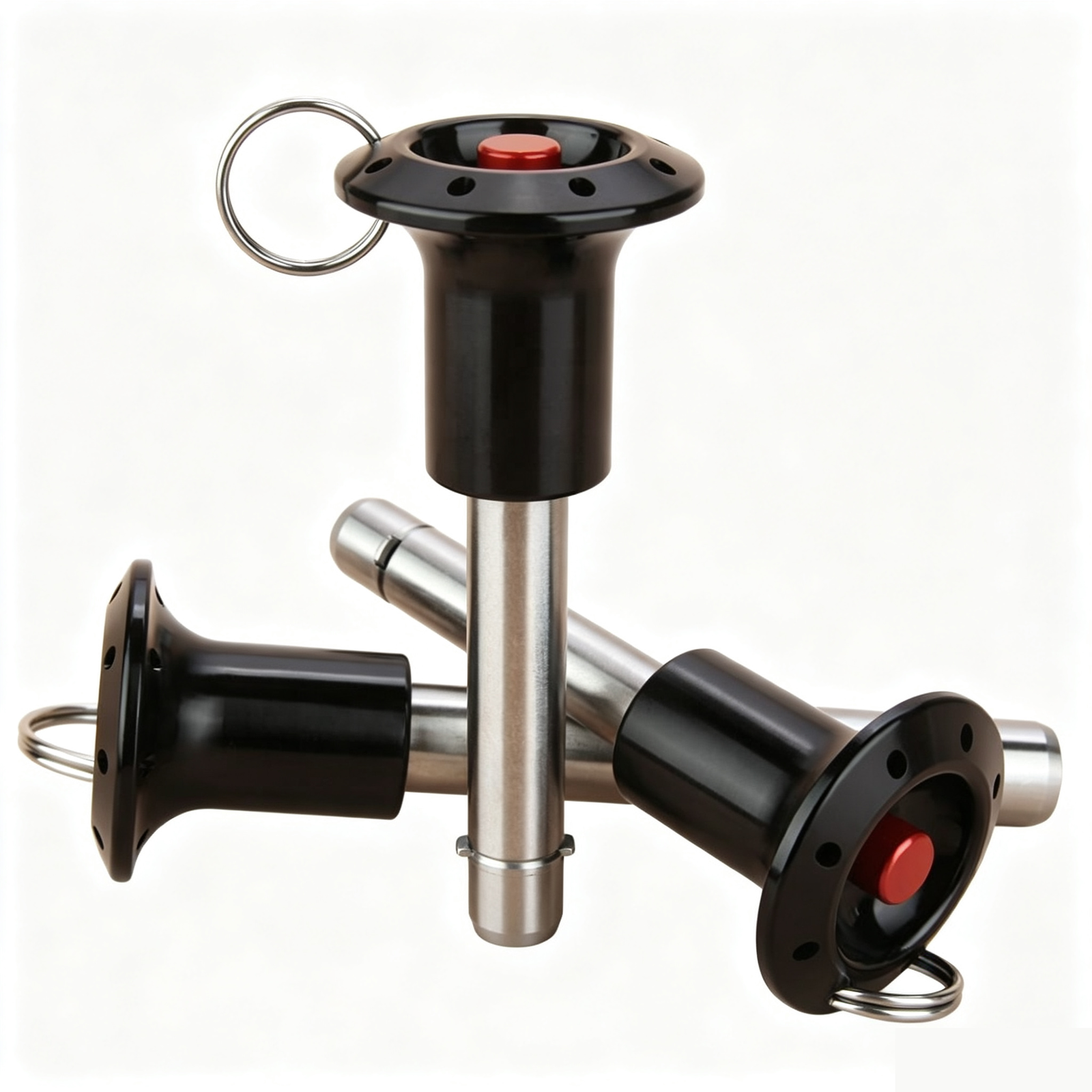

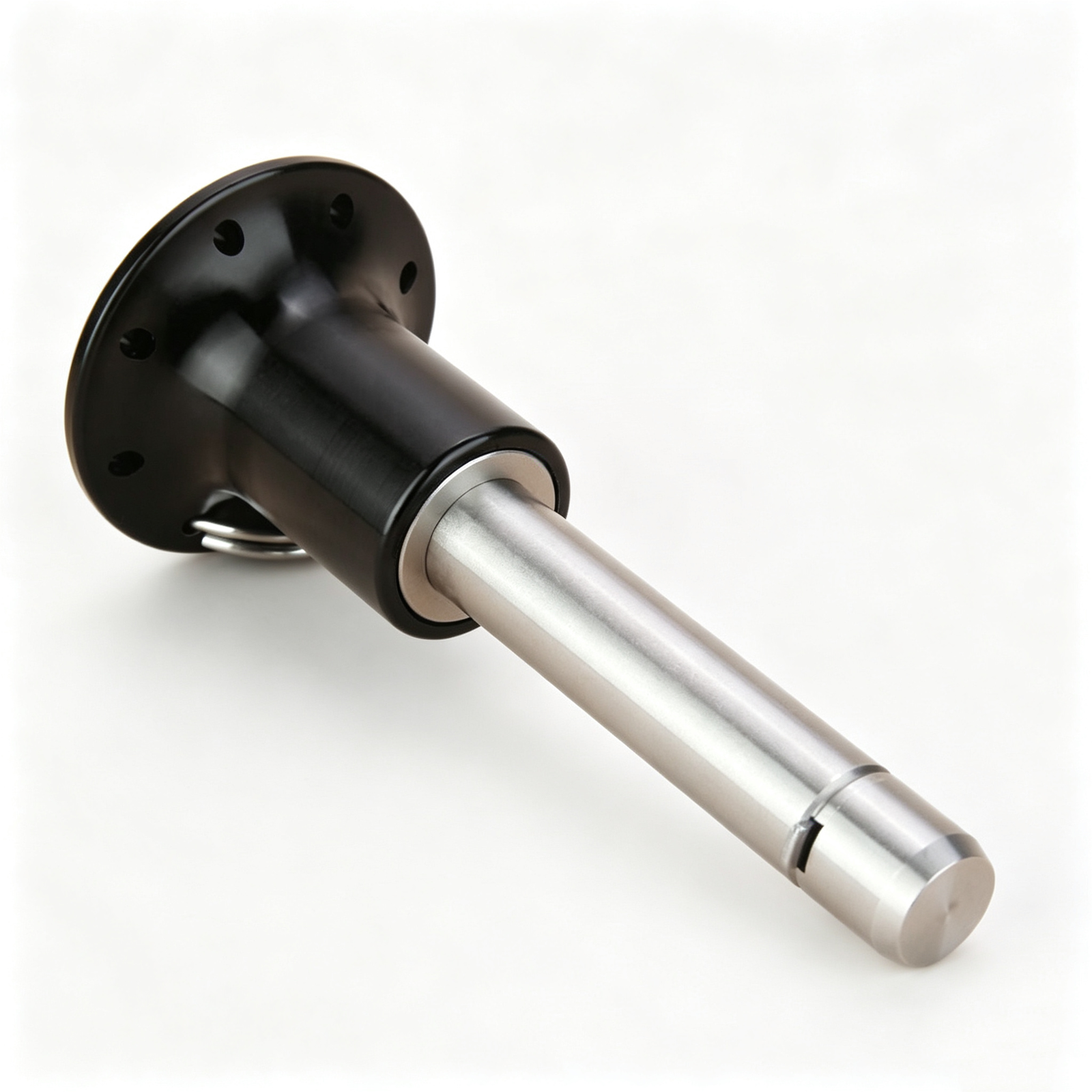

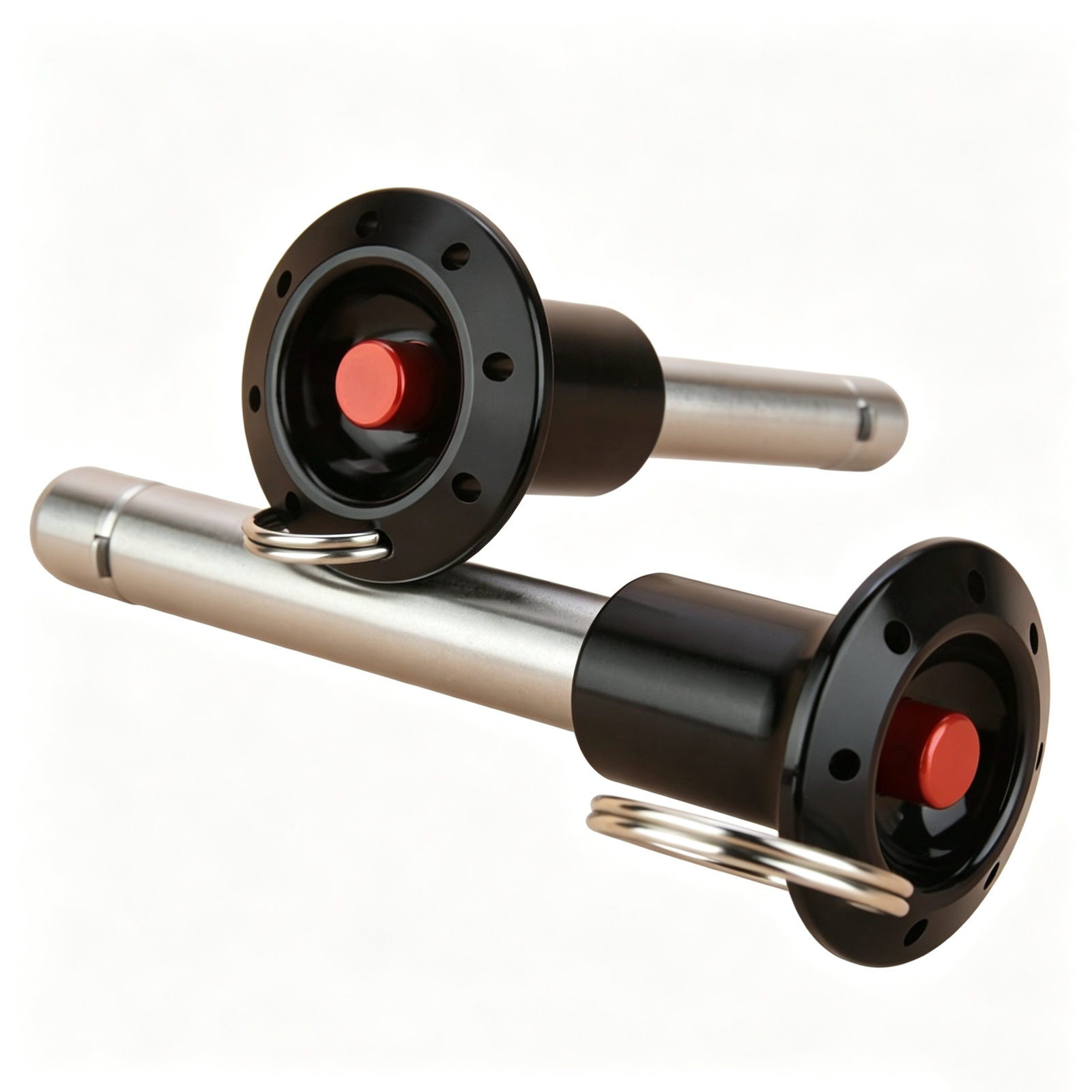

The sinoboltco SNBLP Series (Model: snblp000014) is a heavy-duty, spring-loaded quick release ball lock pin engineered for high-repeatability fixture positioning. Featuring an ergonomic black anodized aluminum trumpet-style head and a precision-ground stainless steel shaft (maintained within a strict -0.04 mm to -0.08 mm diameter tolerance), this pin enables instantaneous tool-free locking. Depressing the red push-button retracts the internal stainless pawls for smooth hole insertion and extraction. Supported by sinoboltco raw material price-locking programs to safeguard OEM buyers from stainless steel market volatility.
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Key attributes | |||
|---|---|---|---|
| type | Ball Lock Pin | material | Stainless Steel |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | SNBLP000014 |
| Product name | Ball Lock Pin | Pin Diameter | 6/8/10/12/16/20 |
| Pin Length | 10-100 | Keyword | Quick Release Pin |
| Service | OEM/ODM | Aftersales | 1 on 1 Customer Service |
| MOQ | 1 PCS | Custom MOQ | 100 PCS |
| Application | conveyer / transportation |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.050 kg |
| Delivery Time | ||
|---|---|---|
| Quantity | 1 – 5000 | > 5000 |
| Eastern Time (days) | 15 | To be determined |
The sinoboltco SNBLP Series quick release ball lock pin (Model snblp000014) delivers rapid, positive locking for mechanical assemblies, jigs, and automated fixtures where frequent changeover is required.
Precision Engineering & Dimensional Control
Manufactured to exact ISO/DIN industrial standards, every snblp000014 pin shank is ground to maintain a strict fit tolerance of -0.04 mm to -0.08 mm on shaft diameter (A). The functional grip length (L) features a dynamic length tolerance of +0.5 mm / 0 mm, ensuring full pawl clearance and secure engagement behind mating fixture plates without binding.
Operating Principle
Engagement: Depressing the top actuation button shifts the internal spring-loaded plunger forward, causing the dual stainless steel locking pawls to fully retract into the shaft body.
Locking: Slide the pin through the reamed location hole. Upon releasing the button, the internal spring mechanism forces the pawls outward, forming a solid mechanical shoulder.
Disengagement: Press the button again to trigger pawl retraction, allowing effortless slide-out removal—completely tool-free.
Material Specifications
Handle Body: Aluminum alloy with durable black anodized finish, styled in an ergonomic trumpet flare for enhanced grip confidence.
Internal Push Button: Red anodized aluminum / stainless steel thumb button.
Shank, Spring & Retractable Pawls: High-grade SUS304 / SUS316 stainless steel providing superior corrosion resistance against industrial cutting fluids and humidity.
Retention Ring: Stainless steel pull ring included for tether/lanyard attachment.
Raw Material Volatility Protection for OEM Procurement
Procurement teams face ongoing budget pressure due to fluctuations in global stainless steel and nickel commodity indices. At sinoboltco, we combine precision mechanical manufacturing with strategic raw material price hedging. We offer long-term Fixed Price Agreements (FPAs), allowing OEM clients to lock in component pricing up to 12 months ahead, eliminating supply chain price uncertainty.

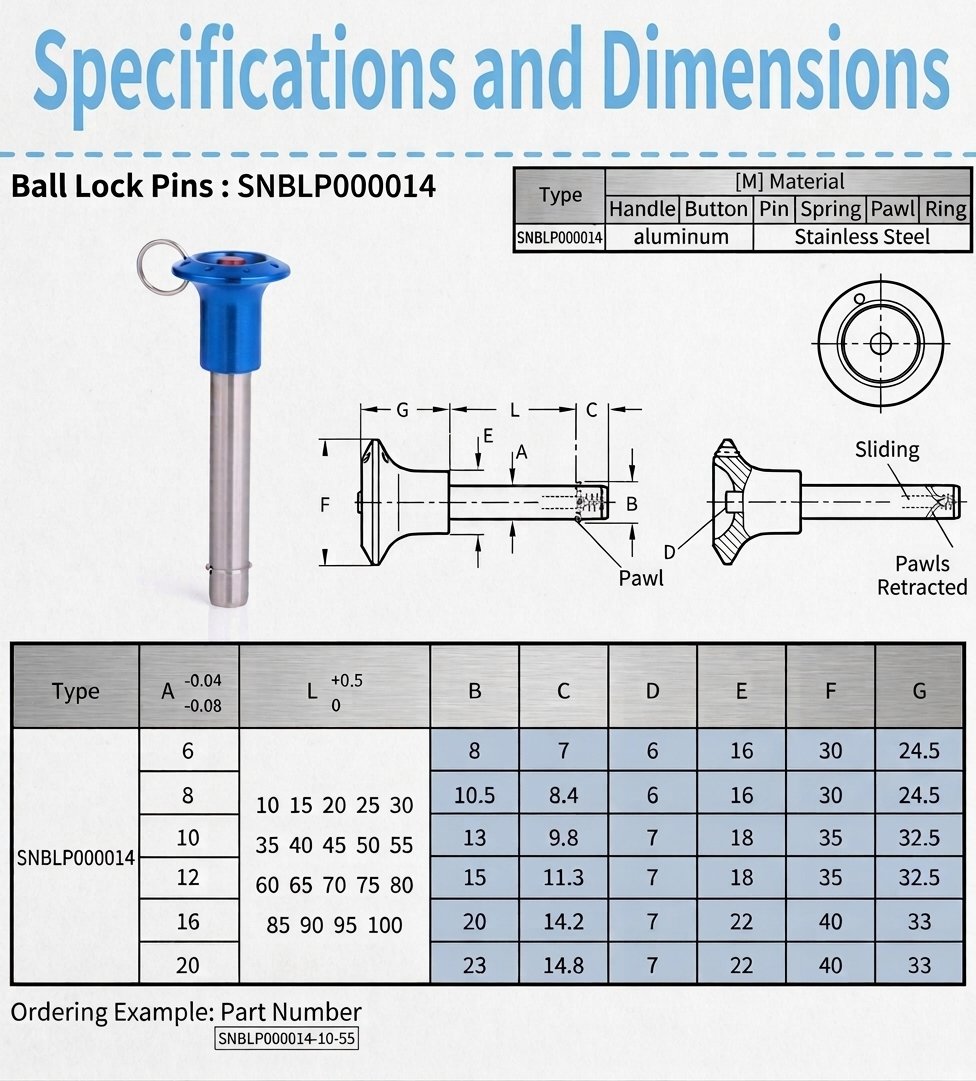

Technical Specifications Table
| Parameter / Dimension Symbol | Specification Details & Value |
| Series & Model Code | SNBLP Series / snblp000014 |
| Shank Diameter (A) Tolerance | -0.04 mm to -0.08 mm |
| Grip Length (L) Tolerance | +0.5 mm / 0 mm |
| Standard Shank Diameters (A) | 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm |
| Available Grip Lengths (L) | 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 mm |
| Handle Diameter (F) | 30 mm (for A=6/8), 35 mm (for A=10/12), 40 mm (for A=16/20) |
| Handle Height (G) | 24.5 mm (A=6/8), 32.5 mm (A=10/12), 33 mm (A=16/20) |
| Shank / Pawl Material | SUS304 / SUS316 Stainless Steel |
| Handle Material & Finish | Aluminum Alloy, Black Anodized |
| Ordering Code Format | snblp000014-[Dia A]-[Grip L] (e.g., snblp000014-10-55) |
Product Advantages
Strict Fit Tolerances: Precise -0.04 mm / -0.08 mm shaft diameter tolerance guarantees tight radial positioning in H7 holes.
Ergonomic Trumpet Handle: Flares outward to offer superior manual grip leverage during fast-paced assembly work.
Instant Pawl Retraction: Smooth spring-action plunger enables sub-second insertion and removal without tools.
Heavy-Duty All-Weather Construction: Stainless steel functional components resist corrosion, rust, and coolant degradation.
Supply Chain Price Locking: Protected by sinoboltco long-term raw material hedging to guarantee fixed annual unit costs.
Product Features
Model Code: snblp000014 (SNBLP Series)
Handle Design: Black anodized trumpet flared head with integrated red push button
Core Materials: SUS304 / SUS316 stainless steel shank, spring, pull ring, and pawls
Operation: Thumb push button activates internal plunger for immediate pawl retraction
Metric Diameters: 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Grip Length Options: 10 mm up to 100 mm
Positive Mechanical Lock: Pawls cannot retract under dynamic load unless button is depressed
Fit Compatibility: Ground for precision clearance fit inside standard H7 reamed holes
What value-added services does Sinoboltco provide?
We offer a comprehensive suite of industrial solutions, including OEM/ODM custom manufacturing, free prototyping for bulk projects, and 1-on-1 engineering consultancy. Additionally, we act as a strategic sourcing partner in China for clients requiring specialized hardware procurement and quality inspection.
How do I place an order or get a quote?
Browse our product catalog and note the specific requirements (diameter, grip length, and material). You can click the “Inquiry” button or email us directly with your technical drawings. Our technical representative will provide a detailed quote and lead-time assessment within 24 hours.
What is the Minimum Order Quantity (MOQ)?
For standard components in stock, we support your prototyping needs with an MOQ of just 1 piece. For custom-engineered or non-standard parts, the MOQ typically starts at 100 pieces, depending on the manufacturing complexity.
What are the typical shipping times and manufacturing lead times?
Production: Regular orders are processed within 5-7 working days, while bulk industrial orders take 10-15 days.
Shipping: We offer Express Delivery (5-7 days) for urgent requirements and Sea Freight (20-35 days) for cost-effective bulk shipments.
Can I inspect the facility or meet the team?
Absolutely. We value transparency. You are welcome to visit our office in Shanghai. For international clients, we offer live video inspections and virtual tours to verify production standards and quality control processes.
