Quick Release Ball Lock Pins with Tri-Lobe Nylon Handle, Stainless Steel Self-Locking Locating Pins | sinoboltco snblp000011
$1.90

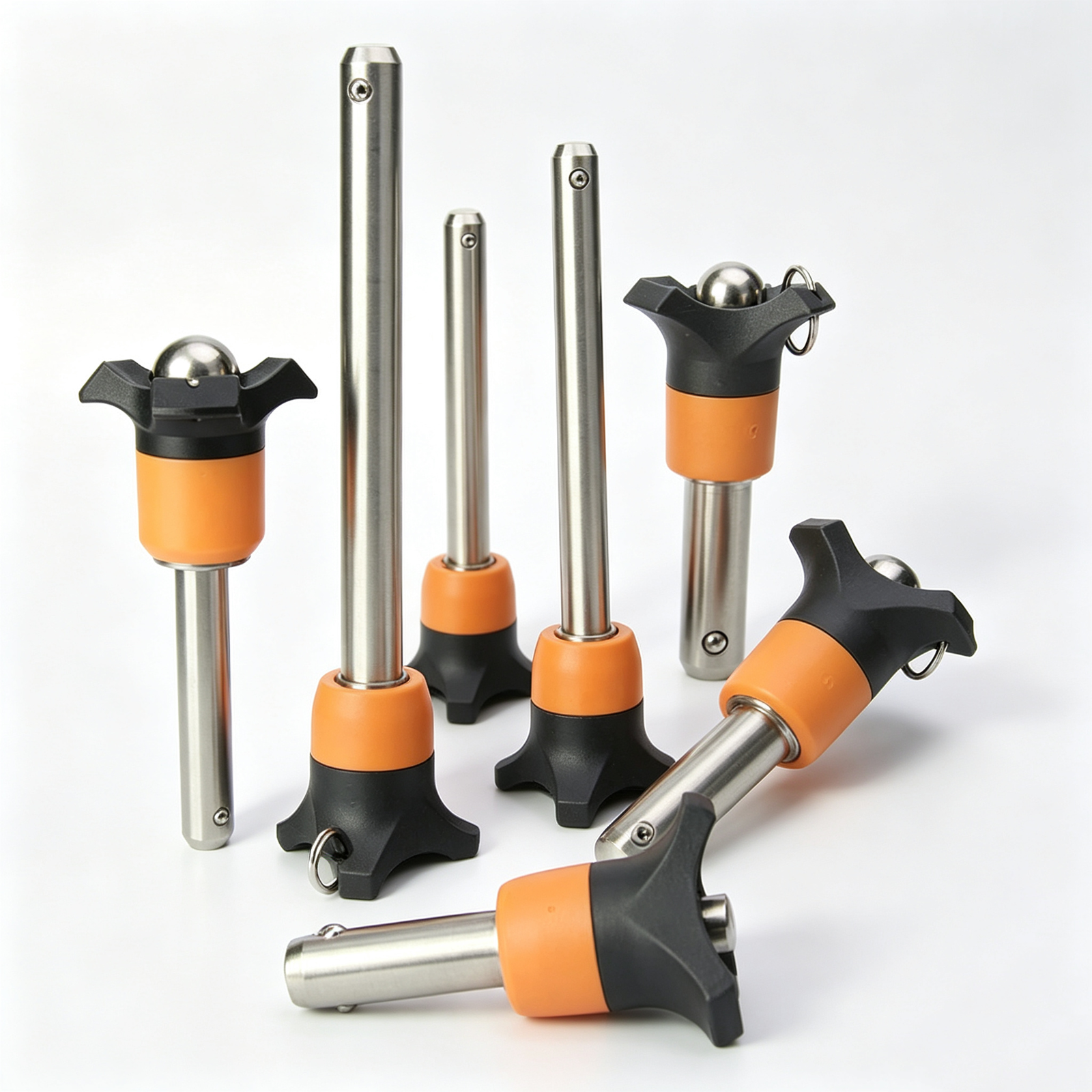

The sinoboltco snblp000011 quick release ball lock pin is built for fast positioning and tool-free locking in industrial jigs, fixtures, and modular tooling systems. Featuring a full stainless steel internal locking mechanism and an impact-resistant Nylon 6 tri-lobe handle, it offers smooth operation and reliable holding force. Available in pin diameters from 5mm to 20mm and grip lengths up to 100mm, with optional handle color coding (orange, blue, gray).
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Key attributes | |||
|---|---|---|---|
| type | Ball Lock Pin | material | Stainless Steel |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | SNBLP000011 |
| Product name | Ball Lock Pin | Pin Diameter | 5-20 |
| Pin Length | 10-100 | Keyword | Quick Release Pin |
| Service | OEM/ODM | Aftersales | 1 on 1 Customer Service |
| MOQ | 1 PCS | Custom MOQ | 100 PCS |
| Application | conveyer / transportation |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.500 kg |
| Delivery Time | ||||
|---|---|---|---|---|
| Quantity | 1 – 500 | 501-1000 | 1001-5000 | >5000 |
| Eastern Time (days) | 5 | 7 | 15 | To be determined |

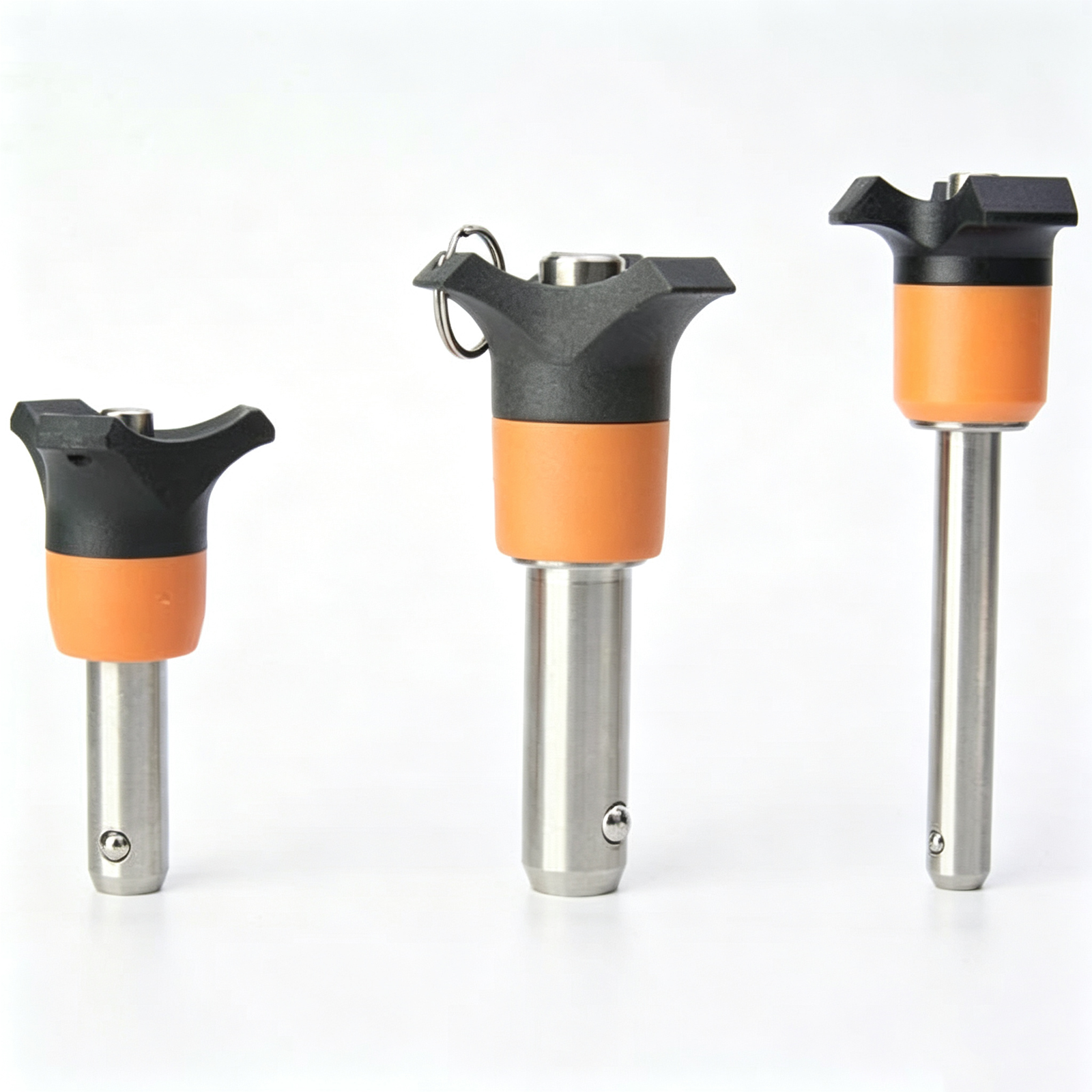

The sinoboltco snblp000011 quick release ball lock pin provides precision positioning and immediate self-locking for high-frequency changeover environments. Engineered to replace traditional threaded fasteners, this spring-loaded pin streamlines setup workflows in machining fixtures, welding jigs, and modular automation equipment.

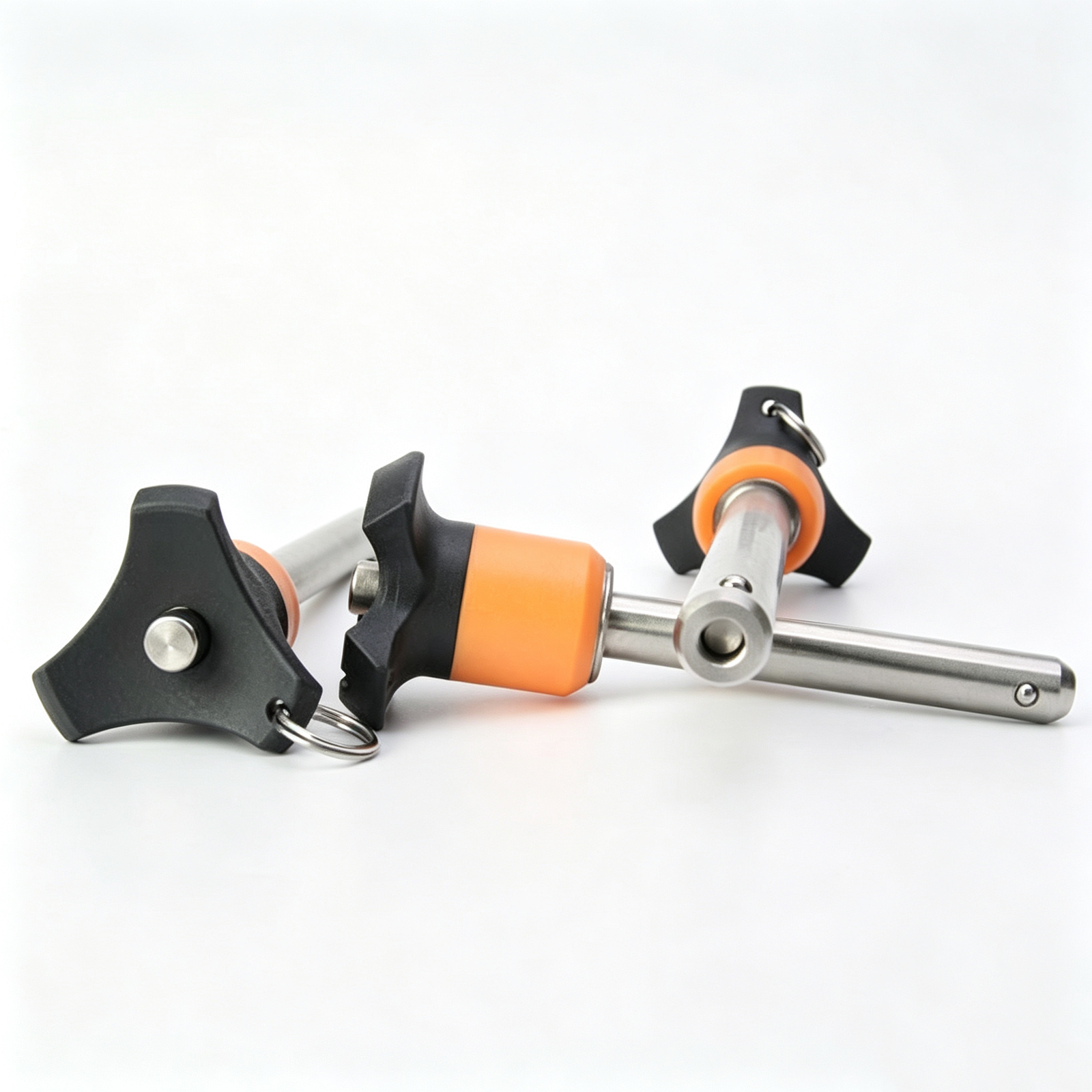

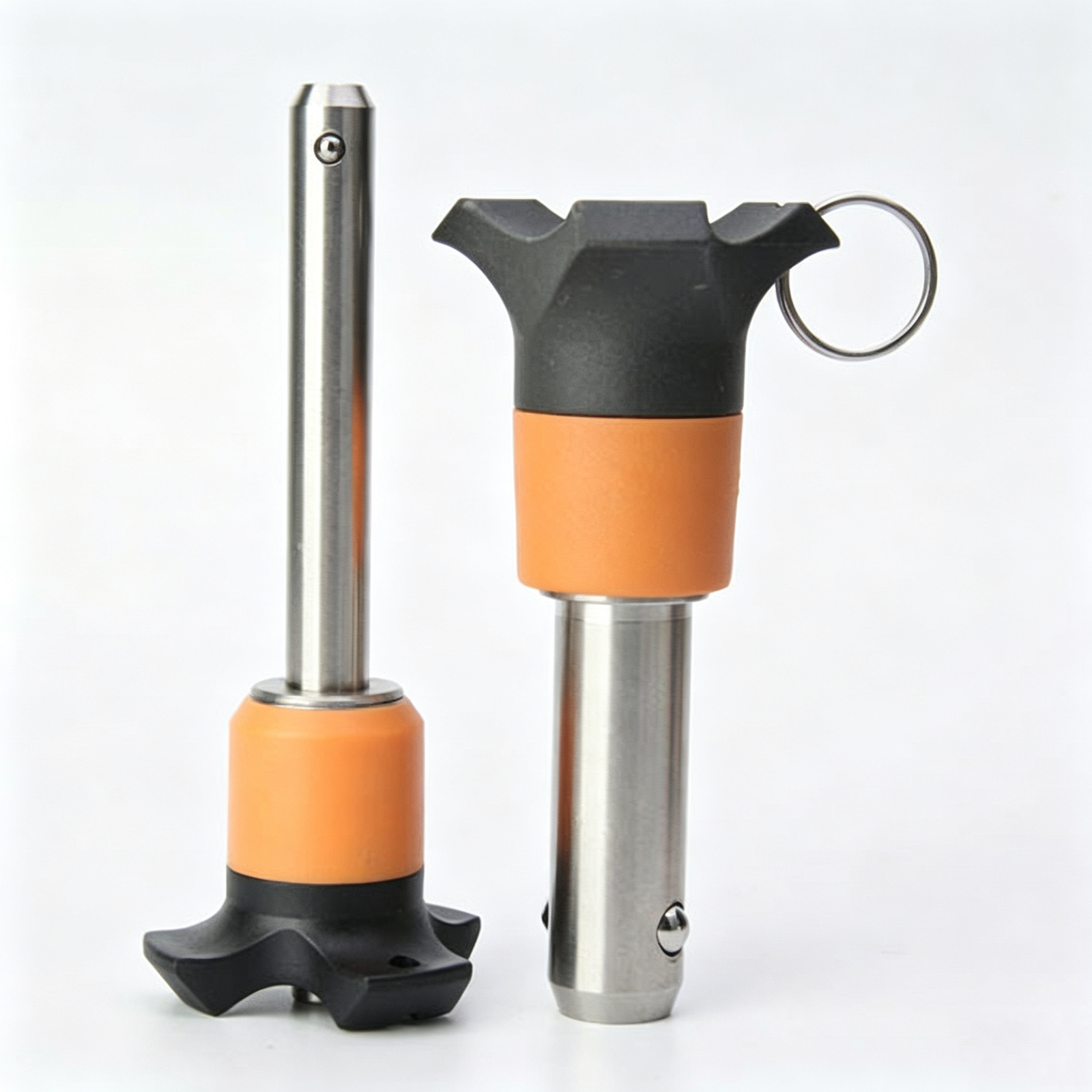

Each snblp000011 assembly combines a precision-ground stainless steel pin shaft, stainless spring, internal push-button rod, retaining ring, and stainless steel locking balls with an ergonomic Nylon 6 tri-lobe handle. Pressing the top stainless steel button retracts the detent balls into the shaft body, allowing smooth insertion into reamed holes. Releasing the button causes internal spring tension to push the balls outward, locking the assembly securely against the far side of the workpiece.
Designed for precise engineering tolerances, the pin shaft diameter tolerance (-0.04mm to -0.08mm) ensures tight location accuracy while preventing binding. The integrated ring on the handle makes it easy to attach safety lanyards or retention cables, keeping pins secured to individual workstations.
The default Nylon 6 handle is supplied in safety orange, with custom blue and gray variants available to help maintenance and tooling teams establish visual color-coding systems across production lines.
Key Applications:
Welding jigs, assembly fixtures, and modular tooling plates
Inspection equipment and test benches
Mold mounting components and quick-change die systems
Automotive and aerospace assembly racks
Industrial guards, access covers, and frame positioning
Product Advantages
Instant tool-free operation: Push-button design reduces fixture changeover times from minutes to seconds compared to threaded bolts.
High corrosion resistance: Stainless steel shaft, internal spring, locking balls, and push button withstand shop floor moisture and coolants.
Precise location control: Shaft diameter tolerances (-0.04mm to -0.08mm) deliver repeatable positioning accuracy across heavy cycle use.

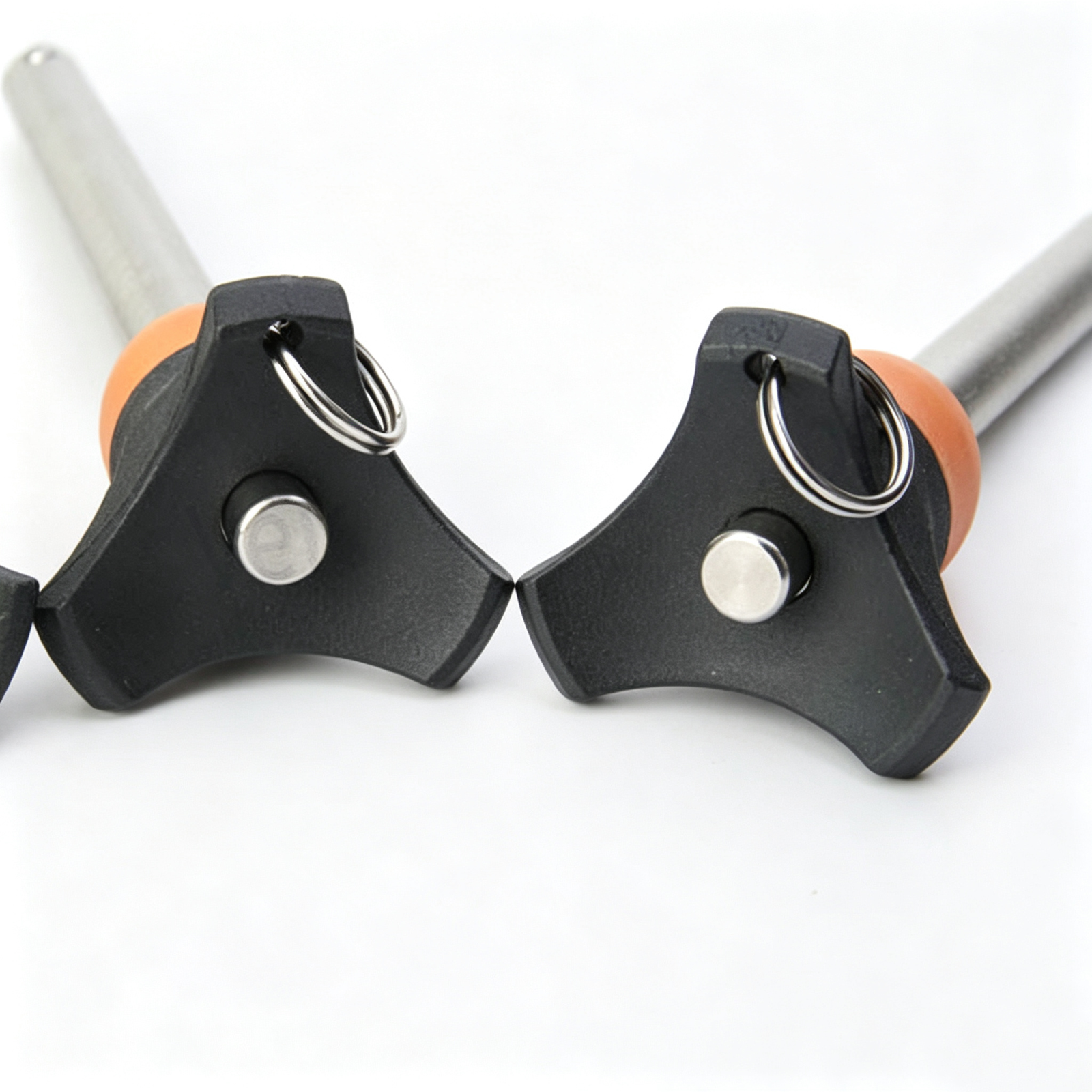

Ergonomic tri-lobe design: Contoured Nylon 6 handle provides a comfortable grip and features a lanyard hole for easy retention cable attachment.
Visual color coding: Available in orange, blue, and gray to help operators identify correct pin sizes and fixture locations quickly.
Direct manufacturer reliability: sinoboltco guarantees consistent dimensional tolerances and scalable volume supply for engineering projects.
Product Features
Mechanism: Spring-loaded push-button detent ball self-locking system
Metal components: Stainless steel pin shaft, internal spring, push button, locking balls, and lanyard ring
Handle material: High-impact Nylon 6 (Tri-lobe design)
Handle color options: Orange (standard), Blue, Gray

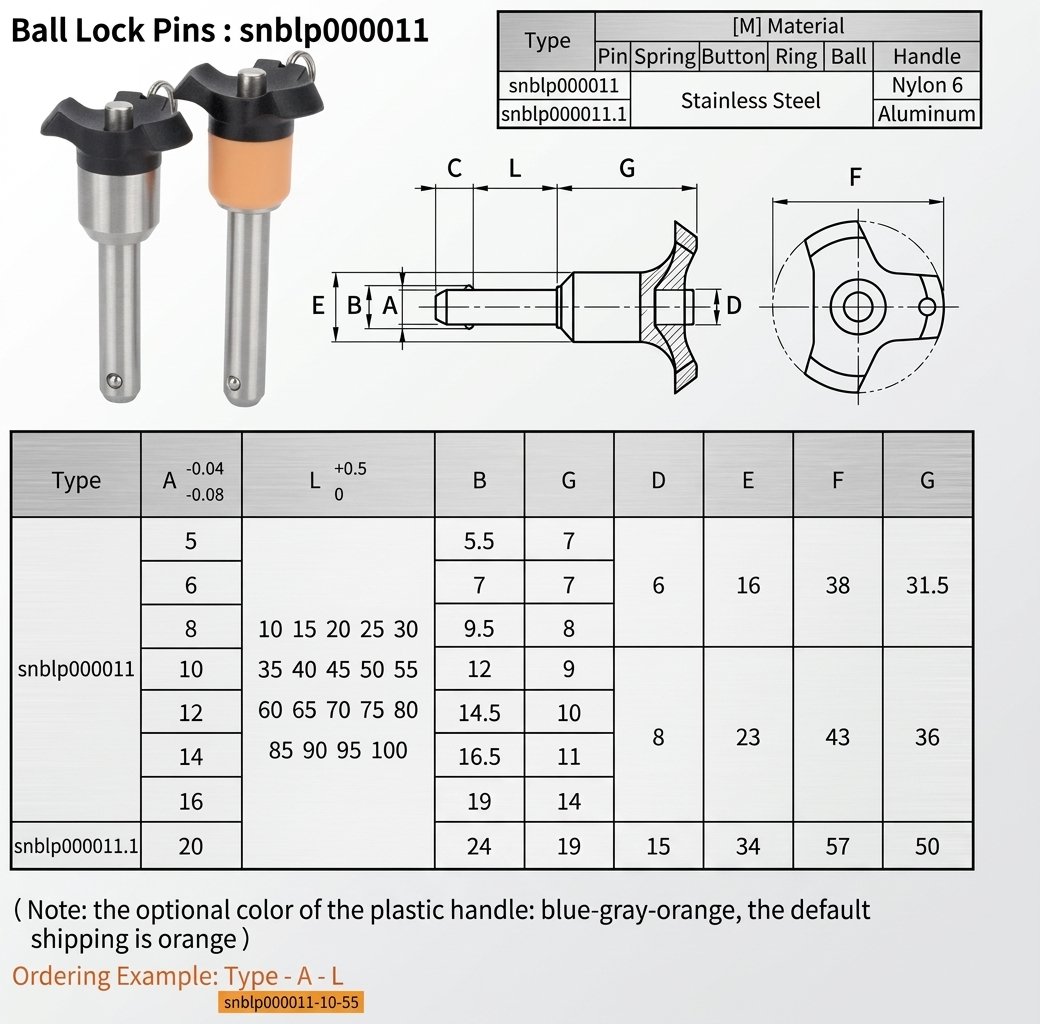

Shaft diameter (A): 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm
Grip length range (L): 10mm up to 100mm
Diameter tolerance: -0.04mm to -0.08mm
Grip length tolerance: +0.5mm / 0mm
Model reference: snblp000011 supplied directly by sinoboltco
