Retractable Spring Loaded Index Plunger, Nylon Mushroom Knob, M8-M16 Fine/Coarse Thread, Rest Lock Option | SNIP Series snip000009 – sinoboltco
$2.00
The sinoboltco SNIP Series (Model: snip000009) spring-loaded index plunger delivers quick, high-repeatability axial positioning for jigs, fixtures, and automated equipment. Designed with a high-impact Nylon 6 mushroom knob and precision pin ground to close tolerances (-0.02 mm to -0.04 mm), it is offered in both Return Type (automatic reset) and Rest Position Type (90-degree knob rotation lock). Available in zinc-plated carbon steel or solid stainless steel, covering M8 through M16 thread sizes in fine and coarse pitches. Backed by sinoboltco’s Raw Material Price-Locking (FPA) options to protect B2B procurement against LME nickel and stainless steel market fluctuations.
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Pins Key attributes | |||
|---|---|---|---|
| material | Plastic | type | hardware fasteners |
| place of origin | shanghai, China | Pin Diameter | M8/M10/M12/M16 |
| brand name | sinoboltco | model number | snip000009 |
| Product name | Retractable Spring Loaded Index Plunger | Material | Plastic |
| Finish | Black，red，blue | Keyword | automation positioning pin，indexing plunger， |
| Usable Length | 5/7/10 | MOQ | 10pcs |
| Packing | Cartons+Plastic Bags+Pallet | Payment Term | T/T |
| Certificate | ISO9001-2008 | Sample | Availiable |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 4.75X3.3X3.3 cm |
| Single gross weight | 0.17 kg |
| Delivery Time | ||||
|---|---|---|---|---|
| Quantity | 1 – 500 | 501-1000 | 1001-5000 | >5000 |
| Eastern Time (days) | 5 | 7 | 15 | To be determined |
The sinoboltco SNIP Series Index Plunger (snip000009) is an industrial-grade standardized positioning component engineered for high-cycle mechanical alignment, modular fixture locking, and automated tool positioning.
1. Precision Engineering & Functional Options
Two Operating Configurations:
Return Type: Pulling the knob retracts the locking pin into the threaded sleeve; releasing it instantly engages the spring to drive the pin forward into the indexing hole.
Rest Position Lock Type: Pulling the knob and turning it by 90 degrees locks the pin in its retracted position via a precision notch on the sleeve. This hands-free lock stays disengaged during heavy loading, part setup, or continuous alignment procedures.
Precision Pin Fit: The indexing plunger pin is centerless ground to achieve strict alignment tolerances (-0.02 mm to -0.04 mm), ensuring zero-backlash detent engagement inside mating bushings.
2. Robust Materials & Ergonomic Knob

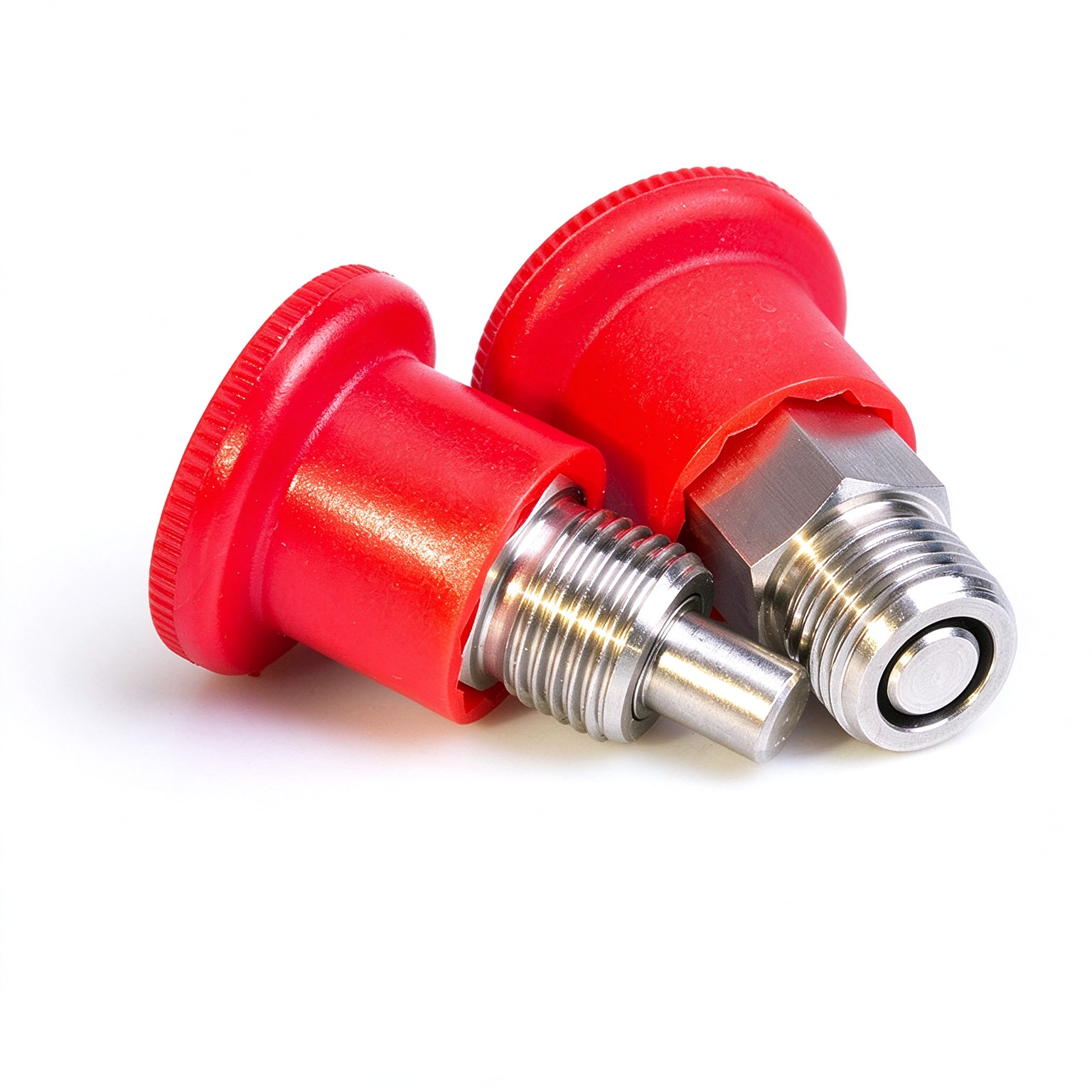

Knob: High-tensile, heat-resistant Nylon 6 mushroom head knob. Default delivery is Black, with Red and Blue color options available for visual station marking or safety indexing on assembly lines.
Body Options: Premium carbon steel with protective clear zinc plating (zinc-plated carbon steel) for dry, indoor machinery, or solid AISI stainless steel for corrosive, washdown, or medical environments.
Pin & Spring: Both internal compression spring and indexing pin are manufactured from high-yield stainless steel, ensuring consistent spring force (S = 5 mm to 10 mm) over thousands of continuous cycles without fatigue.
3. B2B Supply Chain & Futures Hedge Advantage
As a specialized industrial component supplier with raw material hedging capabilities, Shanghai Sinoboltco Technology Co., Ltd. (sinoboltco) offers OEM procurement teams strategic price protection. By leveraging LME/SHFE nickel and stainless steel futures price-locking agreements (FPA), we eliminate cost spikes on large-volume contracts, enabling stable annual budgeting for machine builders and automation integrators.

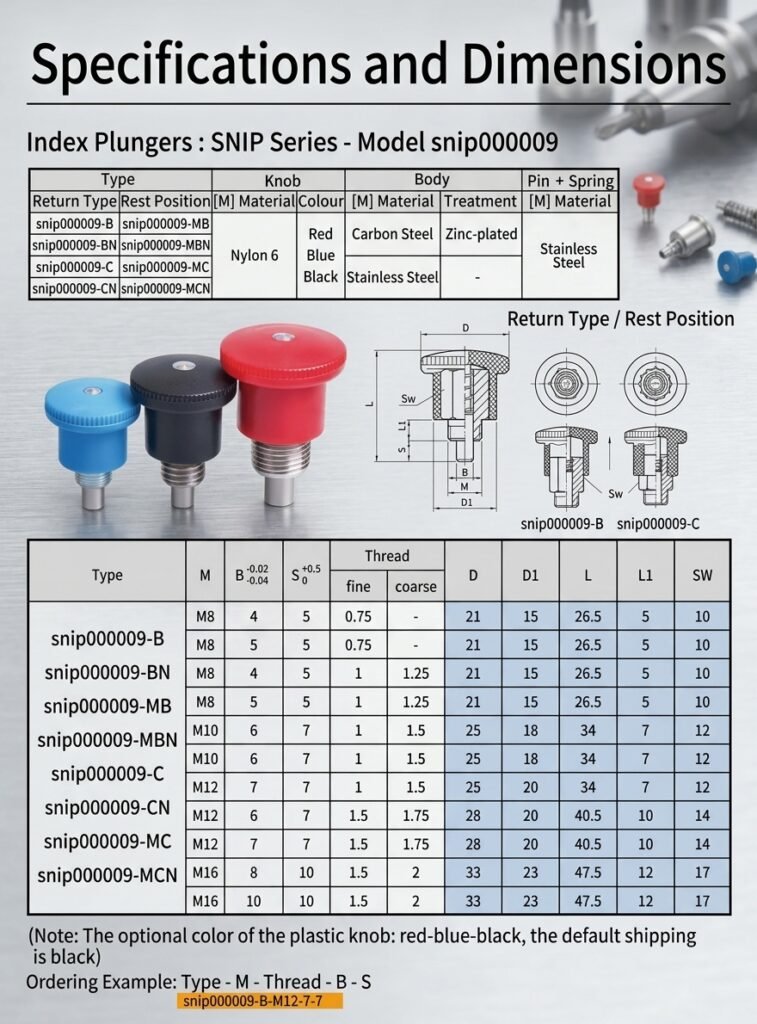

Technical Specification Table
| Parameter Item | Specification Details |
| Series & Model | SNIP Series / snip000009 |
| Thread Size (M) | M8, M10, M12, M16 |
| Thread Pitch Option | Fine Thread (0.75 mm / 1.0 mm / 1.5 mm) & Coarse Thread (1.25 mm / 1.5 mm / 1.75 mm / 2.0 mm) |
| Pin Diameter Fit (B) | 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 10 mm (Tolerance: -0.02 mm / -0.04 mm) |
| Stroke Length (S) | 5 mm, 7 mm, 10 mm (+0.5 mm / 0 mm) |
| Knob Diameter (D) | 21 mm, 25 mm, 28 mm, 33 mm |
| Knob Material / Colors | Nylon 6 (Red, Blue, Black; Default: Black) |
| Body Material Options | Zinc-plated Carbon Steel / Stainless Steel |
| Internal Pin & Spring | Stainless Steel (High-fatigue resistance) |
| Hex Width (SW) | 10 mm, 12 mm, 14 mm, 17 mm |
| Supply Chain Services | CAD 2D/3D Step Files, Custom Dimensions, Raw Material Price-Locking (FPA) |
Product Advantages
Dual Mechanical Operation: Choose between instant Spring Return Type and 90-degree Rest Position Lock Type to match specific assembly cycle needs.
Tight Alignment Tolerances: Ground plunger pin tolerance (-0.02 mm / -0.04 mm) guarantees repeatable axial alignment without mechanical play.
Versatile Thread Options: Supports both fine and coarse thread pitches across M8 to M16 sizes to fit standard tapped holes and vibration-prone environments.

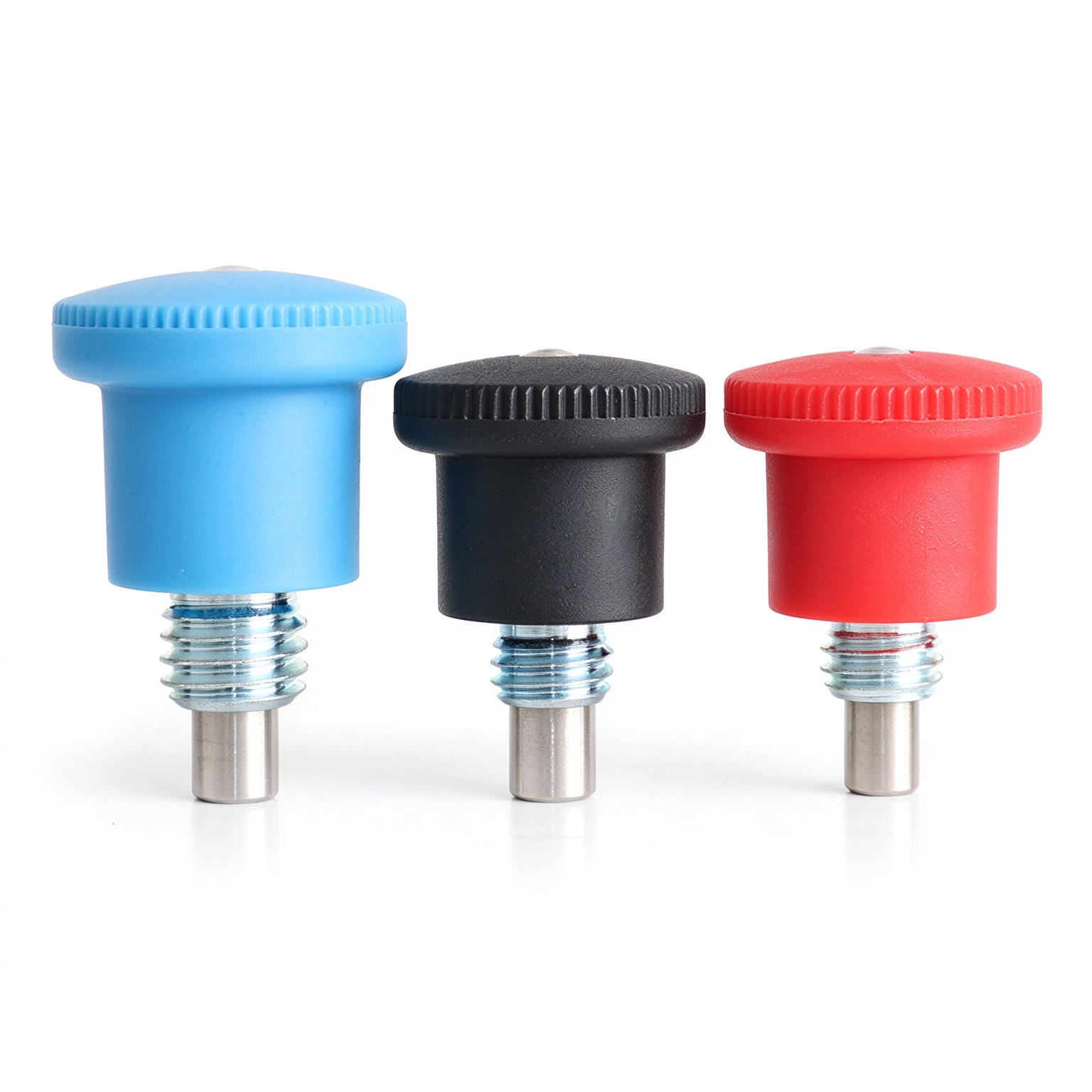

Ergonomic Color-Coded Knobs: High-impact Nylon 6 mushroom knob in Black, Red, or Blue allows visual coding across complex multi-station CNC fixtures.
Corrosion & Wear Resistance: Stainless steel internal pins and springs withstand high humidity and frequent cycling without jamming or corrosion.
Supply Chain Price Protection: Integrated raw material futures price-locking (FPA) insulates B2B buyers from global stainless steel and nickel price fluctuations.
Product Features
Retractable spring-loaded indexing pin with manual pull release.
Precision thread profile ensuring thread engagement with standard mounting blocks or aluminum profiles.
Integrated hex nut flats (SW10-SW17) for secure wrench tightening during installation.
Interchangeable standard mounting dimensions for seamless integration into existing CAD fixture designs.
Complete 2D/3D CAD models available upon request for mechanical design engineers.
