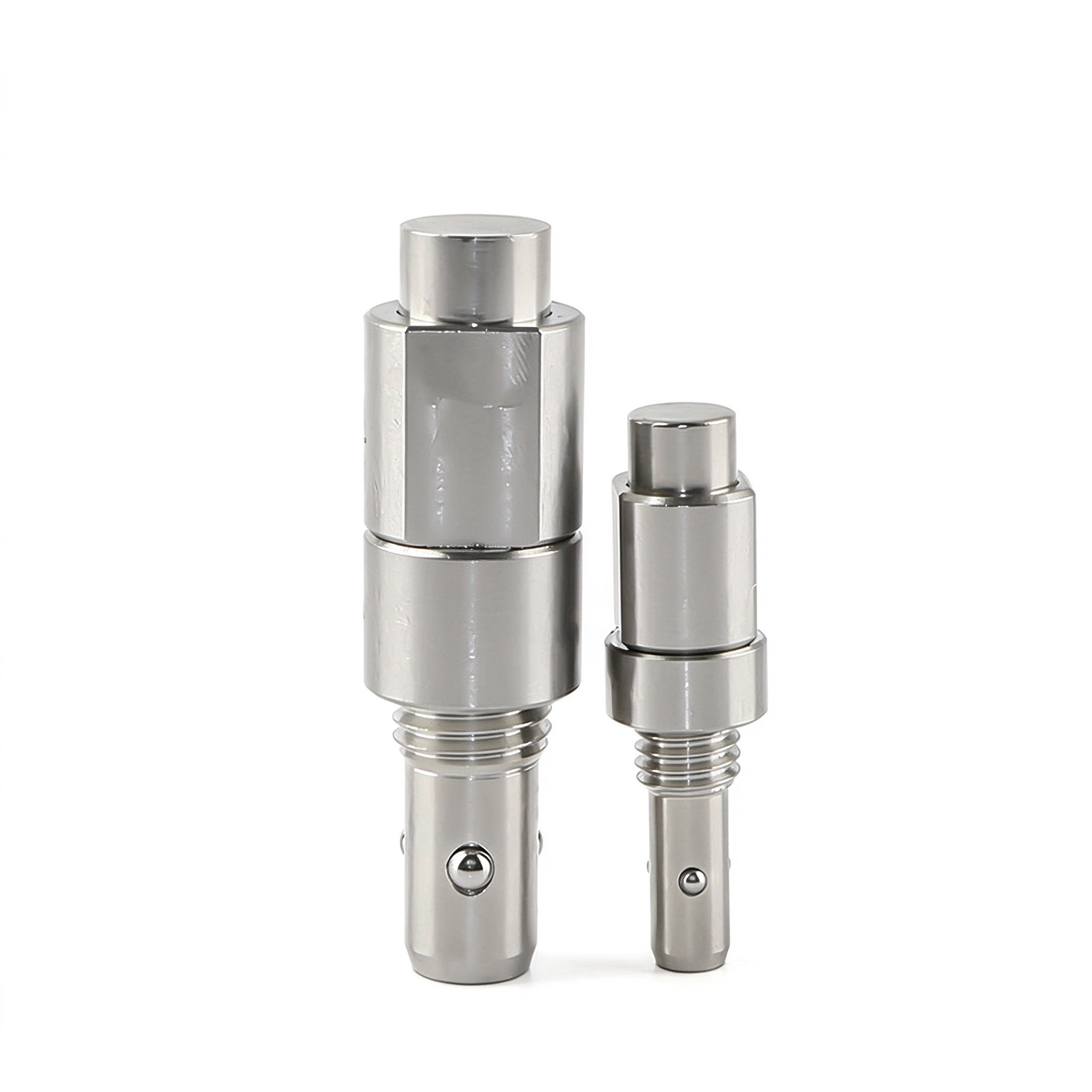

Button Head Ball Lock Quick Release Pin | SNBLP Series (snblp000015) for Precision Industrial Fixtures
$5.00
Engineered for rapid, tool-free alignment, the sinoboltco SNBLP Series (snblp000015) button head ball lock quick release pin features a spring-loaded stainless steel locking mechanism and precision pin diameter tolerances (-0.05 mm to -0.10 mm). Available in electroless nickel-plated carbon steel or high-grade stainless steel (SUS304/SUS316) for modular fixtures and CNC tooling plates. Supported by sinoboltco’s Raw Material Price-Locking agreements to safeguard OEM buyers against alloy surcharge volatility.
Shop with Confidence at sinoboltco
Global Reliable Logistics
100% Quality Assurance
Global Reliable Logistics
24/7 Technical Support
Pay with ease
💡PRICE: EXW (BASE MODEL). MAX. SAMPLE ORDER: 10 UNITS.
The listed price applies strictly to our smallest standard specification. If your project requires larger diameters, custom lengths, or bulk wholesale pricing, please use the [ INQUIRY NOW] button to get an accurate quote.
| Key attributes | |||
|---|---|---|---|
| type | Ball Lock Pin | material | Stainless Steel |
| place of origin | ShangHai, China | size | Custom |
| brand name | sinoboltco | model number | SNBLP000015 |
| Product name | Ball Lock Pin | Pin Diameter | 6/10 |
| Pin Length | 19/21.5 | Keyword | Quick Release Pin |
| Service | OEM/ODM | Aftersales | 1 on 1 Customer Service |
| MOQ | 1 PCS | Custom MOQ | 100 PCS |
| Application | conveyer / transportation |
| Packaging and delivery | |||
|---|---|---|---|
| Sales Unit | Single Product | Individual Package Dimensions | 13X9X8 cm |
| Single gross weight | 0.180 kg |
| Delivery Time | ||
|---|---|---|
| Quantity | 1 – 500 | > 500 |
| Eastern Time (days) | 5 | To be determined |

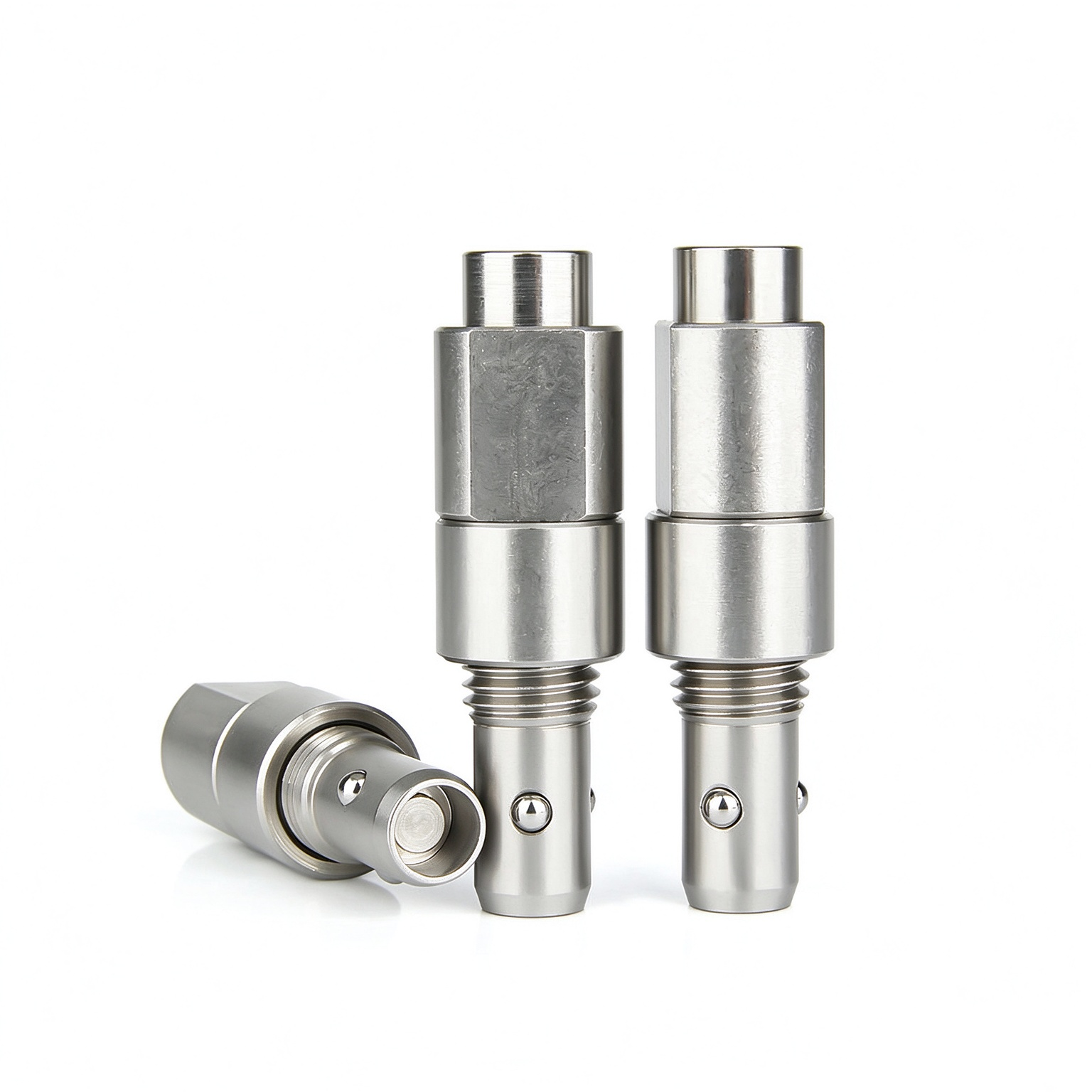

The snblp000015 button head ball lock quick release pin, part of the proprietary SNBLP Series by sinoboltco, is a heavy-duty locating fastener engineered for high-cycle tooling changes, CNC fixture positioning, and modular automation frameworks. Designed as a direct drop-in solution for precision machinery, this pin integrates an internal stainless steel coil spring and dual locking balls that retract smoothly upon pressing the top actuation button, enabling immediate insertion or detachment without hand tools.
Engineering Specifications & Material Integrity
Body & Actuation Button Options:
Carbon Steel Grade: Surface treated with electroless nickel plating for enhanced surface hardness, wear resistance, and anti-galling performance in dry workshop settings.
Stainless Steel Grade (SUS304 / SUS316): Corrosion-resistant body engineered for humid, chemical, or cleanroom operating environments.
Internal Locking Components: High-tensile stainless steel locking balls and heavy-duty spring retain dynamic detention force over tens of thousands of cycles.
Threaded Mounting & Alignment Body: Features fine metric mounting threads (M8x1.25 to M12x1.5) and precision-machined locating diameters (-0.05 mm to -0.10 mm tolerance), ensuring zero-backlash positioning when seated into precision plates.
Supply Chain Resilience & Cost Mitigation
Raw material volatility—particularly in nickel and chromium markets—can impact long-term procurement budgets for large-scale OEMs. sinoboltco leverages futures hedging strategies to offer Fixed Price Agreements (FPA) and Raw Material Price-Locking services on the SNBLP Series, guaranteeing cost stability for ongoing production lines.

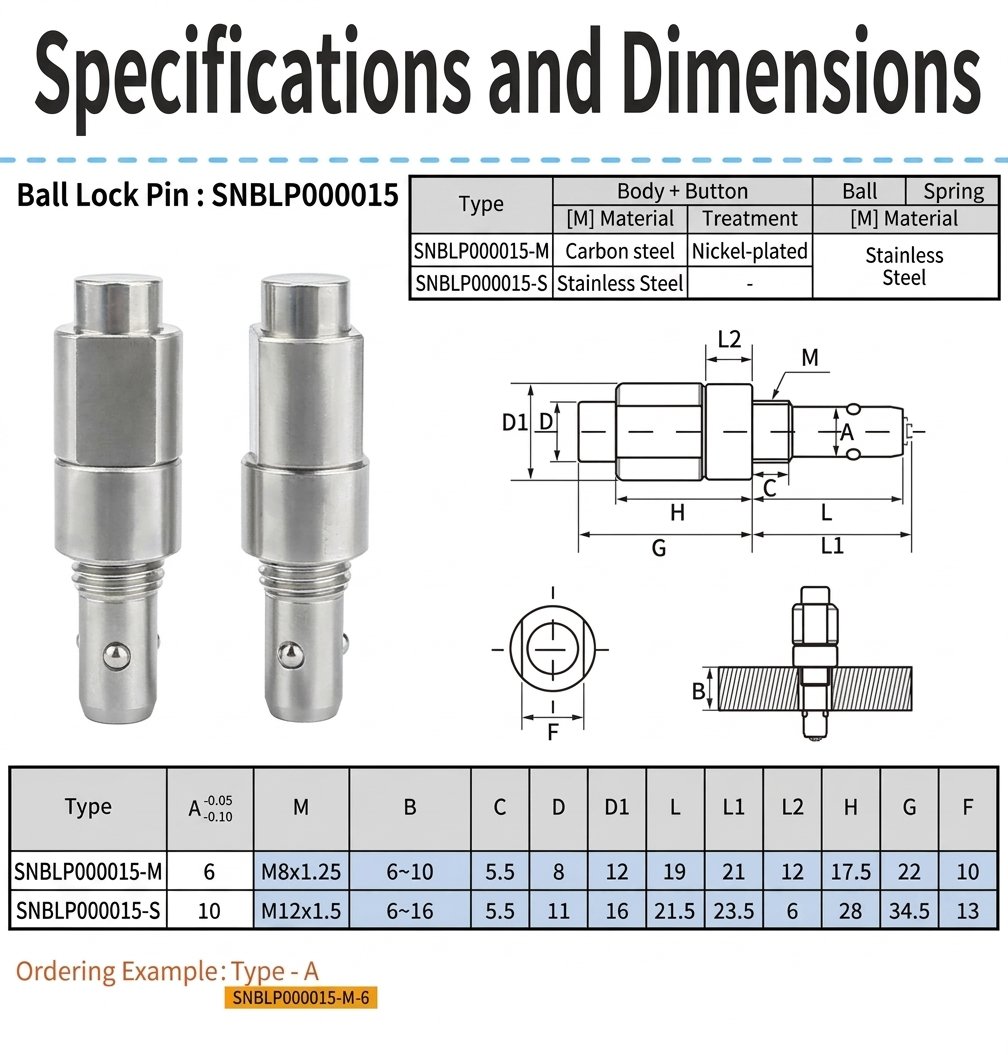

Technical Specifications Table
| Specification Parameter | Option A (Carbon Steel Variant) | Option B (Stainless Steel Variant) |
| Series & Model Code | SNBLP Series (snblp000015-M) | SNBLP Series (snblp000015-S) |
| Main Body / Button Material | High-grade Carbon Steel | SUS304 / SUS316 Stainless Steel |
| Surface Treatment | Electroless Nickel Plating | Passivated / Natural Stainless |
| Locking Ball & Spring Material | Stainless Steel | Stainless Steel |
| Pin Diameter Tolerance (A) | -0.05 mm to -0.10 mm | -0.05 mm to -0.10 mm |
| Mounting Thread (M) | M8x1.25 / M12x1.5 | M8x1.25 / M12x1.5 |
| Thread Length (L2) | 6.0 mm / 12.0 mm | 6.0 mm / 12.0 mm |
| Locating Length (L) | 19.0 mm / 21.5 mm | 19.0 mm / 21.5 mm |
| Grip Thickness Range (B) | 6-10 mm / 6-16 mm | 6-10 mm / 6-16 mm |
| Compliance | RoHS Compliant, ISO 9001:2015 Precision Inspection | RoHS Compliant, ISO 9001:2015 Precision Inspection |
Product Advantages
Tool-Free Instant Operation: Retractable spring-ball locking mechanism slashes fixture changeover downtime by over 65%.
Tight Locating Tolerances: Machined within -0.05 mm to -0.10 mm tolerance to maintain accurate alignment across repeated clamping cycles.
Dual Material Flexibility: Select nickel-plated carbon steel for cost-efficient indoor setups or full stainless steel for harsh ambient environments.
Price Volatility Protection: Supported by sinoboltco raw material futures price-locking to protect enterprise volume purchasing budgets.
Custom Engineering Capability: Custom pin diameters, shaft lengths, and thread pitches tailored to customer CAD files.
Product Features
Ergonomic button head designed for tactile manual actuation.
Integrated metric mounting threads for direct fixture plate installations.
Dual stainless steel locking balls prevent unintentional disengagement under vibrational shear loads.
CNC-turned body surfaces minimize internal bore friction and mechanical wear.
Complete traceability and dimensional verification report available upon request.
What value-added services does Sinoboltco provide?
We offer a comprehensive suite of industrial solutions, including OEM/ODM custom manufacturing, free prototyping for bulk projects, and 1-on-1 engineering consultancy. Additionally, we act as a strategic sourcing partner in China for clients requiring specialized hardware procurement and quality inspection.
How do I place an order or get a quote?
Browse our product catalog and note the specific requirements (diameter, grip length, and material). You can click the “Inquiry” button or email us directly with your technical drawings. Our technical representative will provide a detailed quote and lead-time assessment within 24 hours.
What is the Minimum Order Quantity (MOQ)?
For standard components in stock, we support your prototyping needs with an MOQ of just 1 piece. For custom-engineered or non-standard parts, the MOQ typically starts at 100 pieces, depending on the manufacturing complexity.
What are the typical shipping times and manufacturing lead times?
Production: Regular orders are processed within 5-7 working days, while bulk industrial orders take 10-15 days.
Shipping: We offer Express Delivery (5-7 days) for urgent requirements and Sea Freight (20-35 days) for cost-effective bulk shipments.
Can I inspect the facility or meet the team?
Absolutely. We value transparency. You are welcome to visit our office in Shanghai. For international clients, we offer live video inspections and virtual tours to verify production standards and quality control processes.
