High-Precision Ball Lock Quick Release Indexing Plunger – Carbon Steel & Stainless Steel Positioning Pin

Detailed Description

Engineered for Speed and Stability

In modern manufacturing, every second saved during setup translates to increased profit. Our Quick Release Ball Lock Pins are the ultimate solution for modular fixture systems. Unlike traditional threaded bolts that are slow to install and prone to wear, our ball-lock system provides a “click-and-lock” efficiency.

How It Works

1. Insert: Pass the plunger through the fixture element into the base plate.

2. Seat: Rotate the knurled head by hand to ensure the plunger is properly seated.

3. Lock: Use a standard hex wrench to tighten the top screw. This forces the internal balls outward, clamping the components together with high downward pressure.

4. Release: Reverse the hex screw to retract the balls and lift the pin instantly.

Materials You Can Trust

• Carbon Steel: Heat-treated for maximum strength and finished with black oxide for wear resistance in dry industrial environments.

• Stainless Steel (Optional): Perfect for food processing, medical equipment, or outdoor applications where moisture and chemicals are present.

Key Features – Bullet Points

• Rapid Locking Mechanism: Features a triple-ball expansion design. When tightened, the balls lock firmly against the bottom chamfer of the base plate for a rock-solid hold.

• Precision Alignment: Engineered for high-stakes industrial applications where precise repeatability is non-negotiable.

• Ergonomic Design: Includes a knurled head for quick manual pre-tightening before final torque is applied via the internal hex socket.

• Superior Finish: The black oxide coating provides excellent corrosion resistance and a professional industrial aesthetic.

• Multi-Industry Application: Ideal for CNC machining, automotive assembly lines, aerospace jigs, and modular stage equipment.

FAQ

Q: Can these pins be used for heavy-duty clamping? A: Yes. The triple-ball design distributes the clamping force evenly, making them suitable for heavy-duty jigs and automated production lines.

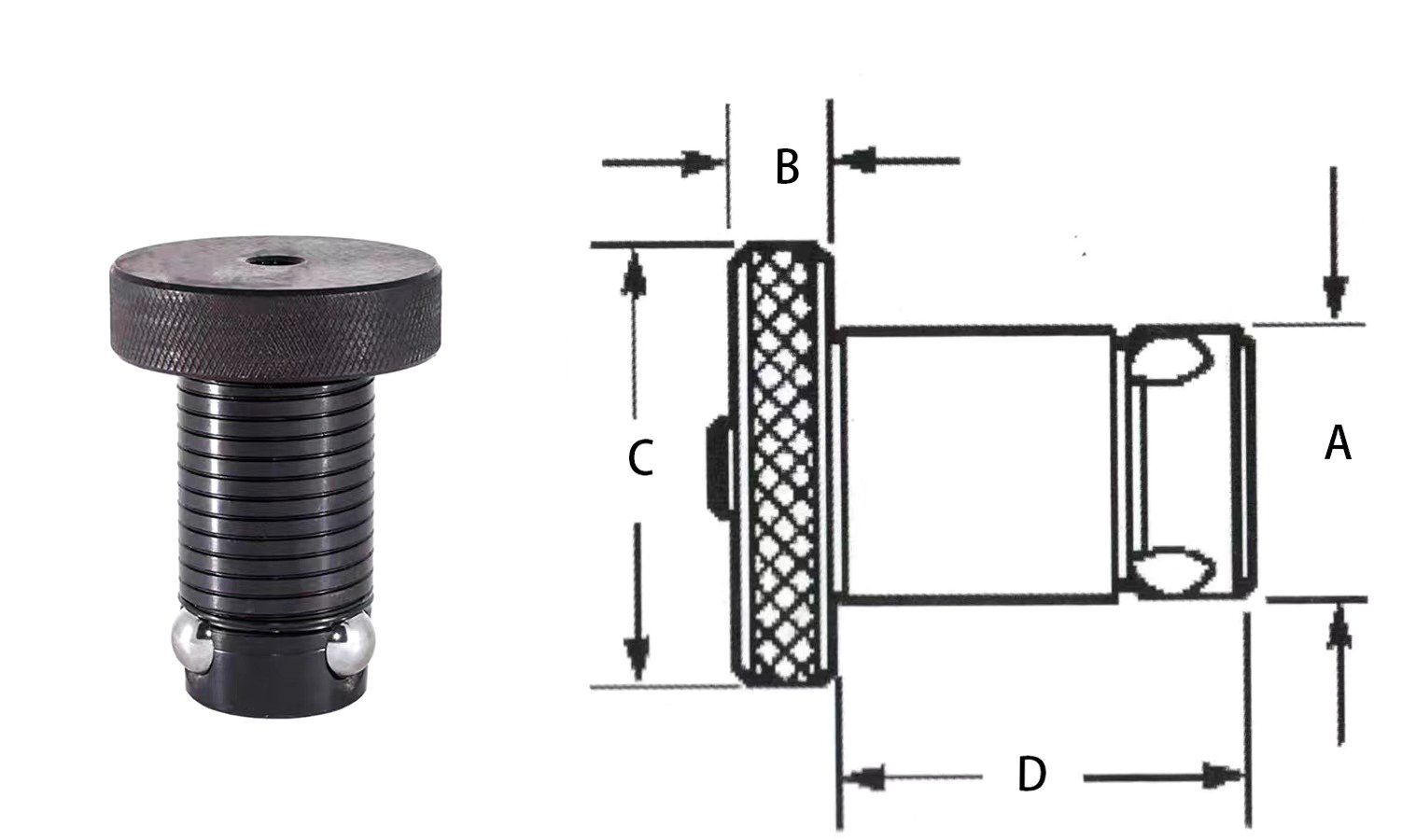

Q: Do you support custom sizes? A: Absolutely. As a professional manufacturer, we can customize the usable length (D) and pin diameter (A) to meet your specific engineering requirements.

Q: What is the lead time for bulk orders? A: Standard sizes are usually in stock and can ship within 7-10 days. Larger custom orders typically take 15-30 days.
